Snap Ring Groove Ball Bearings 6008-2RS2NR/C4PVT153

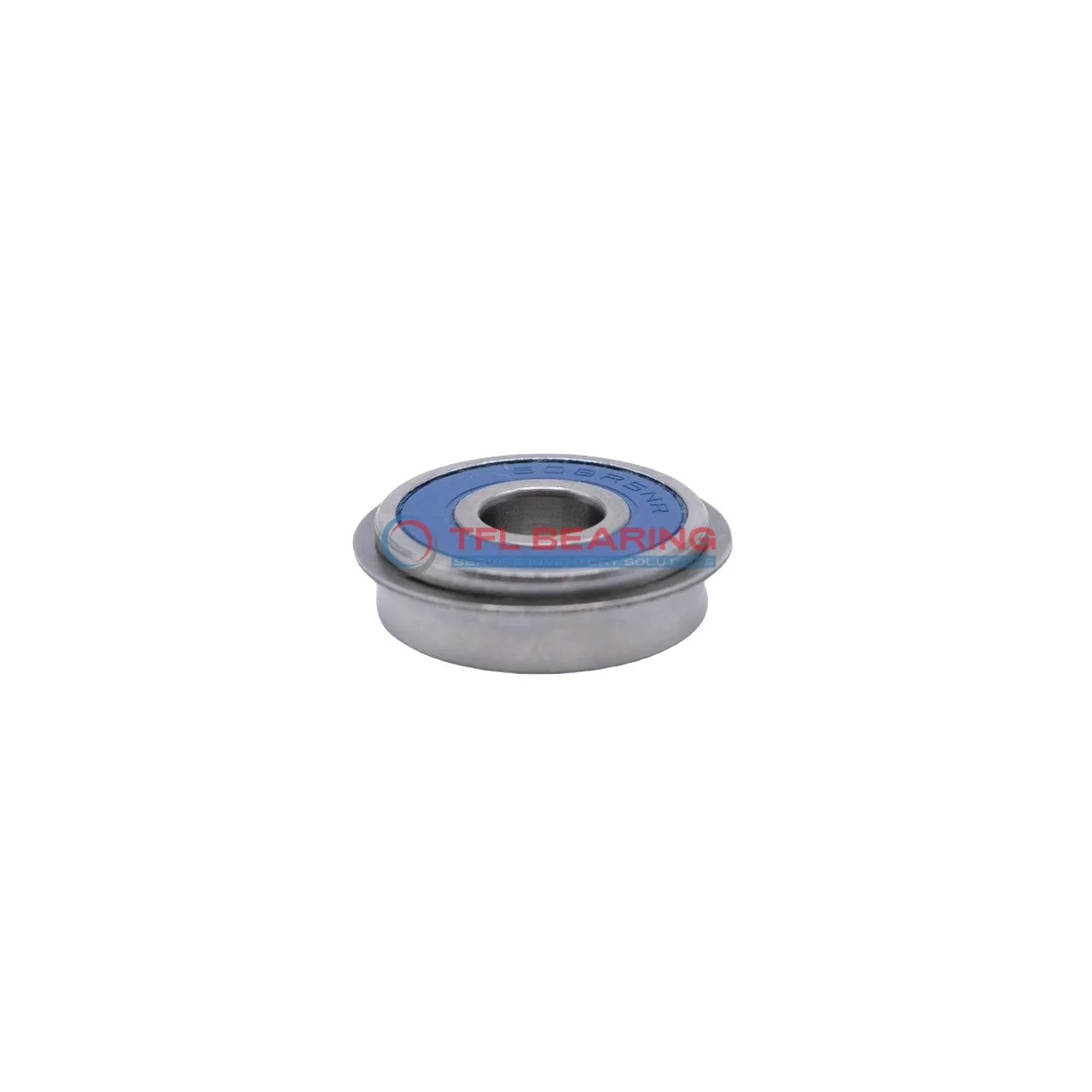

Snap Ring Groove Ball Bearings 6008-2RS2NR/C4PVT153

The 6008-2RS2NR/C4PVT153 is a sealed snap ring groove ball bearing with a 40mm bore and 68mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3754 lbf and operates smoothly at speeds up to 10,000 RPM.

Its sealed design keeps dirt out and grease in, while the snap ring ensures secure fitting. The bearing works in temperatures from -30°C to 120°C, making it versatile for various environments.

With a C4 radial clearance, it offers reliable performance under varying loads. Ideal for applications like electric motors or pumps where secure mounting and contamination protection are key.

Weighing just 192g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6008-2RS2NR/C4PVT153
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 74.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3754 lbf
  • Static Radial Load 2585 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 192 g
Snap Ring Groove Ball Bearings 6008-2RS2NR/C4PVT153 dimension drawing
Download DWG Download PDF

Features

How Does 6008-2RS2NR/C4PVT153 Bearing Reduce Friction?

6008-2RS2NR/C4PVT153 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.

The snap ring groove on the outer ring provides secure mounting, reducing vibration and wear.
With a dynamic radial load capacity of 3754 lbf, it handles demanding applications effortlessly.

6008-2RS2NR/C4PVT153 Bearing operates efficiently at speeds up to 10,000 rpm.
Its C4 radial clearance ensures optimal performance under varying temperature conditions.

Application

Industrial Uses of 6008-2RS2NR/C4PVT153 Bearing
6008-2RS2NR/C4PVT153 Bearing is commonly used in conveyor systems, where its sealed design keeps out dust and debris. The snap ring feature ensures secure mounting, making it ideal for continuous operation.

Where Is 6008-2RS2NR/C4PVT153 Bearing Used?
In automotive applications like electric motors, 6008-2RS2NR/C4PVT153 Bearing provides reliable radial load support. Its chrome steel construction offers durability in high-speed environments.

Perfect Fit for Automation: 6008-2RS2NR/C4PVT153 Bearing
6008-2RS2NR/C4PVT153 Bearing works well in robotic arms, thanks to its smooth rotation and sealed protection. The C4 clearance allows for thermal expansion in varying temperatures.

Medical vs Industrial: Where 6008-2RS2NR/C4PVT153 Bearing Excels
In medical devices like lab equipment, 6008-2RS2NR/C4PVT153 Bearing ensures quiet and precise movement. Its industrial strength also makes it suitable for heavy machinery.

Key Fields for 6008-2RS2NR/C4PVT153 Bearing
6008-2RS2NR/C4PVT153 Bearing is a go-to choice for household appliances like washing machines. The sealed design prevents lubricant leakage, extending its service life.
