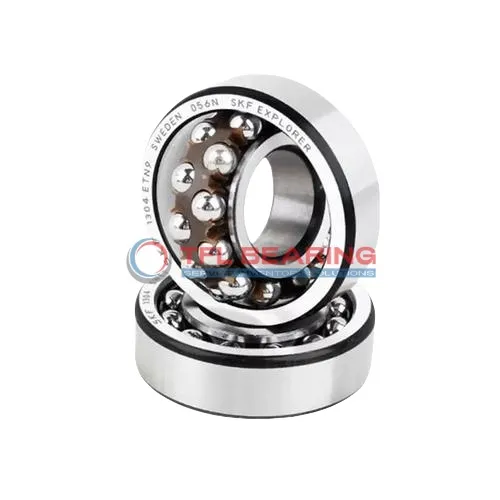

Self Aligning Ball Bearings 1320 K/C3

Brand: TFL Bearing Interchangeable: SKF 1320 K/C3 100 mm × 215 mm × 47 mm Metric Open
Part number: 1320 K/C3
Self Aligning Ball Bearings 1320 K/C3
In Stock
US$778.48 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.03mm to 0
Width47 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring136 mm
Internal Diameter On Outer Ring181.9 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load32,175 lbf
Static Radial Load12,825 lbf
Temperature Range-30° to 110 °C
Max Speed4,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight8.05 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1320 K/C3 is a self-aligning ball bearing with a 100mm tapered bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32175 lbf and operates smoothly at speeds up to 4000 RPM.
Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction for quieter performance.
This bearing suits environments with slight misalignments, such as conveyor systems or agricultural machinery, and works in temperatures from -30°C to 110°C.
Weighing 8.05kg, it’s built for heavy-duty use and is interchangeable with SKF models, offering a reliable replacement option. Compliant with RoHS and REACH standards.

Features

How Does 1320 K/C3 Bearing Reduce Friction?

1320 K/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
With a dynamic radial load capacity of 32175 lbf, it handles heavy-duty applications efficiently.
Its C3 radial clearance provides optimal performance in varying temperature conditions.

Application

Industrial Uses of 1320 K/C3 Bearing
The 1320 K/C3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. Its double-row design provides excellent radial load capacity, making it suitable for demanding environments.

In automotive applications, 1320 K/C3 Bearing can be found in gearboxes and drivetrains, where its tapered bore ensures a secure fit. The nylon cage reduces friction, contributing to smoother operation and longer service life.

For automation equipment, 1320 K/C3 Bearing’s high dynamic load rating makes it ideal for robotic arms and assembly lines. The C3 radial clearance allows for thermal expansion, ensuring consistent performance under varying temperatures.

Where Is 1320 K/C3 Bearing Used?
You’ll often spot 1320 K/C3 Bearing in industrial mixers and agitators, where its ability to handle radial loads and misalignment is crucial. The chrome steel construction ensures durability even in harsh conditions.

In wind turbines, 1320 K/C3 Bearing supports the main shaft, thanks to its high load capacity and self-aligning properties. The lubricated design helps maintain performance over long periods with minimal maintenance.

Built for Heavy-Duty Use: 1320 K/C3 Bearing
The 1320 K/C3 Bearing excels in mining equipment, where its robust design withstands heavy loads and vibrations. Its open seal type allows for easy relubrication, extending its operational life.

In paper manufacturing machinery, 1320 K/C3 Bearing’s self-aligning capability ensures smooth operation despite shaft deflections. The metric sizing makes it compatible with a wide range of industrial equipment.
