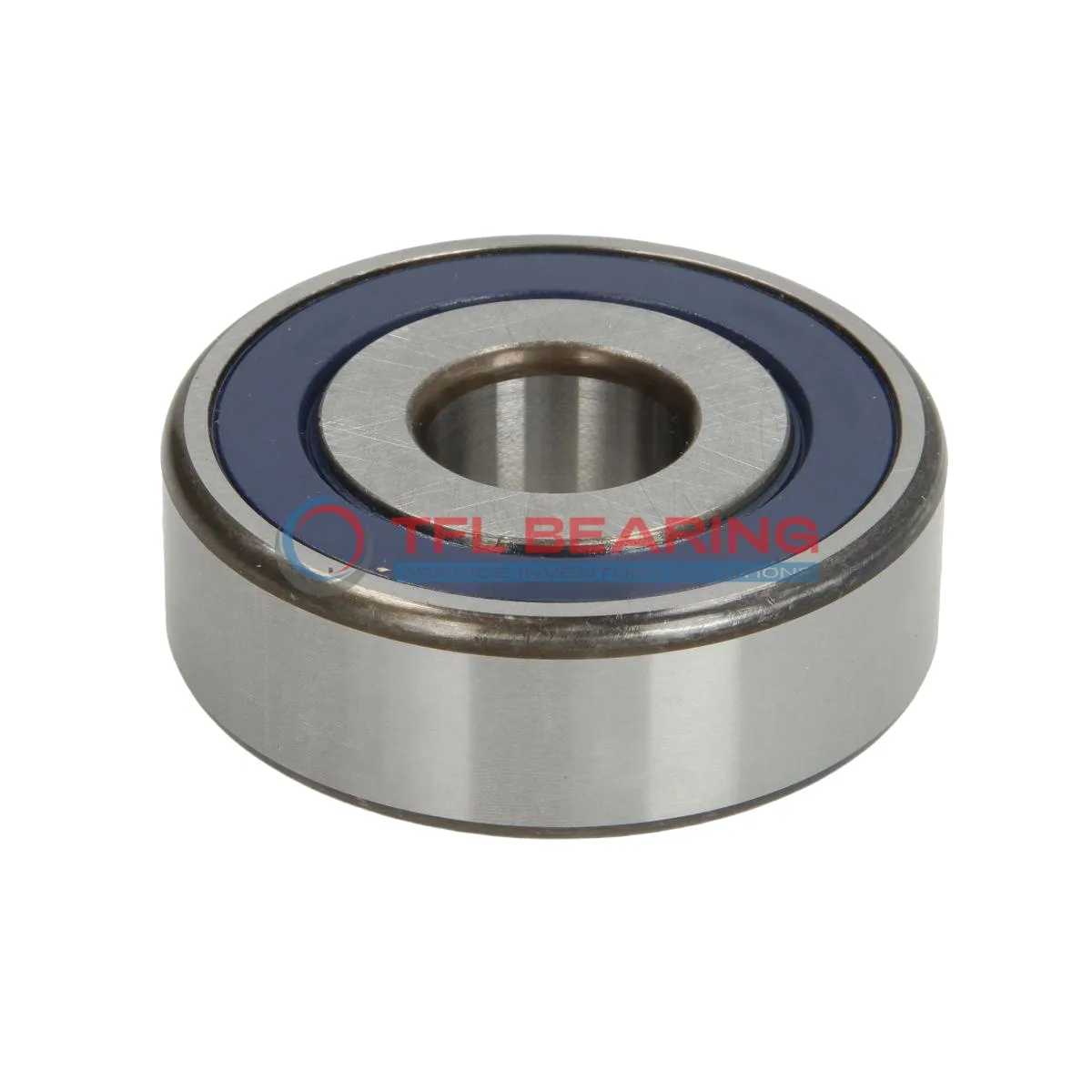

Single Row Deep Groove Ball Bearings 6305-2RS1/C3VT155B

The 6305-2RS1/C3VT155B is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4631 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the chrome steel cage ensures durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 232g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6305-2RS1/C3VT155B
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.013mm to 0
Width 17 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 4631 lbf
Static Radial Load 254 lbf
Max Speed 11000 rpm
Weight 232 g

Single Row Deep Groove Ball Bearings 6305-2RS1/C3VT155B dimension drawing

Download DWG Download PDF

Features

Why Choose 6305-2RS1/C3VT155B Bearing for Precision Tasks?

6305-2RS1/C3VT155B Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 4631 lbf, it handles demanding conditions while maintaining smooth operation.
The bearing operates efficiently at speeds up to 11,000 rpm, making it suitable for high-speed machinery.

Application

Common Applications of 6305-2RS1/C3VT155B Bearing
In industrial settings, 6305-2RS1/C3VT155B Bearing is widely used in electric motors and pumps, thanks to its sealed design which keeps contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6305-2RS1/C3VT155B Bearing Used?
You’ll often find 6305-2RS1/C3VT155B Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are key. The chrome steel build also handles high speeds smoothly.

Built for Heavy-Duty Use: 6305-2RS1/C3VT155B Bearing
This bearing excels in conveyor systems and agricultural machinery, where its durability and resistance to wear are essential. The metric sizing makes it a versatile fit for many European and Asian equipment designs.

Automotive vs Industrial: Applications of 6305-2RS1/C3VT155B Bearing
In cars, 6305-2RS1/C3VT155B Bearing supports components like fans and pulleys, while in factories, it’s a go-to for gearboxes and compressors. Its temperature range and load capacity make it adaptable across both sectors.

Perfect Fit for Automation: 6305-2RS1/C3VT155B Bearing
For robotic arms and automated assembly lines, 6305-2RS1/C3VT155B Bearing offers smooth rotation and low maintenance. The sealed design ensures long-term reliability even in dusty environments.
