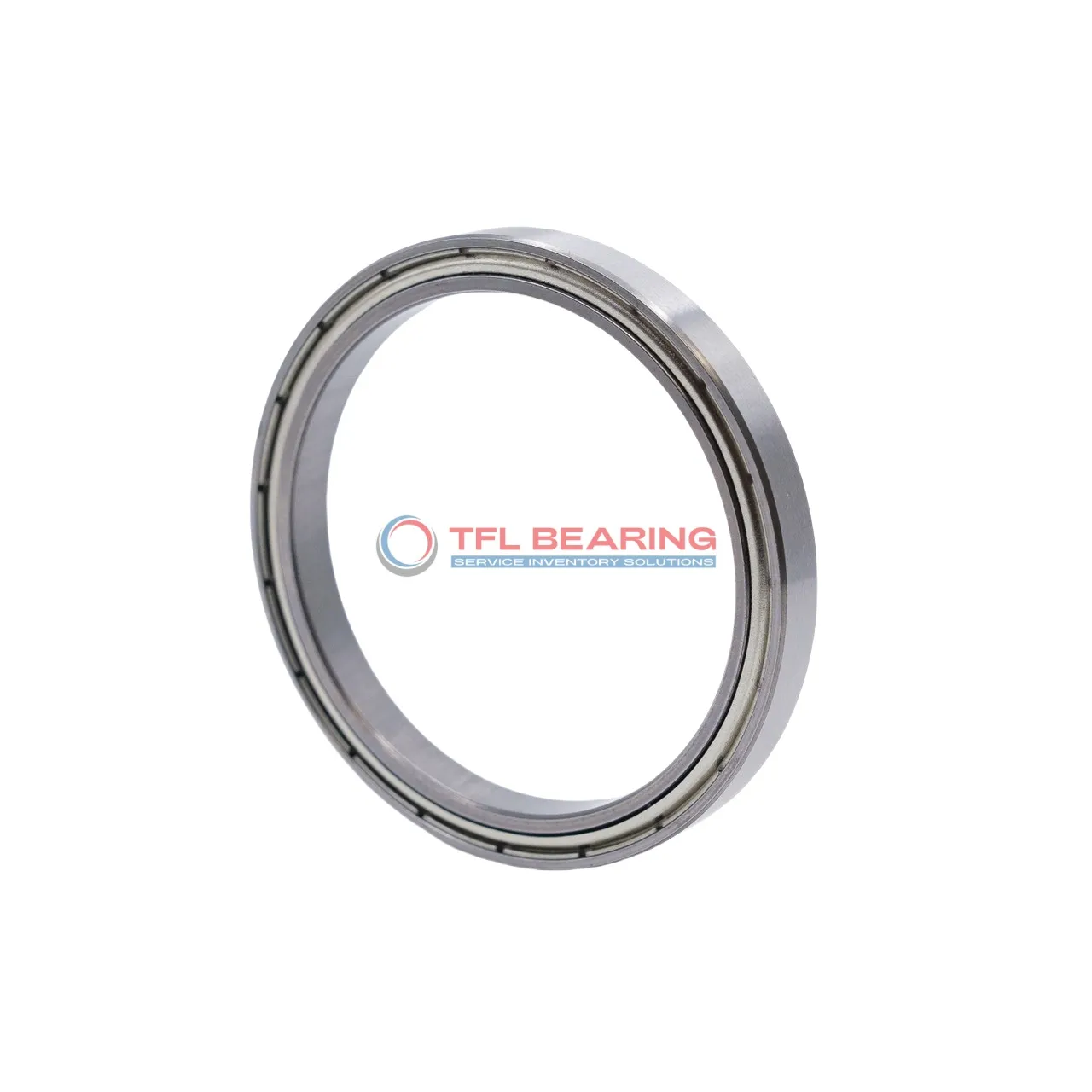

Thin Section Ball Bearings ER1038 ZZ

Thin Section Ball Bearings ER1038 ZZ

The ER1038 ZZ is a compact thin-section ball bearing, measuring just 0.375″ by 0.625″ by 0.1562″. Made from chrome steel with stainless steel cage, it’s built for radial loads up to 193 lbf.

Its shielded design keeps dirt out while allowing smooth rotation at speeds up to 15,000 RPM. The ABEC-1 tolerance ensures reliable performance in various applications.

This bearing requires lubrication and operates in temperatures from -30°C to 110°C. It’s ideal for small machinery or precision equipment where space is limited.

Weighing only 2.6g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number ER1038 ZZ
  • Brand TFL
  • Bore Dia 0.375"
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 0.625"
  • Outer Dia Tolerance -0.008mm to 0
  • Width 0.1562"
  • Width Tolerance -0.12mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 193 lbf
  • Static Radial Load 98 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 2.6 g
  • Price（$） 2
Thin Section Ball Bearings ER1038 ZZ dimension drawing
Download DWG Download PDF

Features

Performance Features of ER1038 ZZ Bearing

ER1038 ZZ Bearing is designed with chrome steel rings and balls, offering reliable performance in radial load applications.
Its dynamic radial load capacity of 193 lbf ensures smooth operation under stress.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 15,000 rpm, it balances efficiency and durability.

Shielded design protects against contaminants while maintaining lubrication.
This makes ER1038 ZZ Bearing suitable for precision instruments and small machinery.

Operating between -30°C to 110°C, it performs well in varied environments.
Its lightweight design at 2.6 g adds to its versatility in compact applications.

Application

Common Applications of ER1038 ZZ Bearing
ER1038 ZZ Bearing works well in small robotics, especially for joints and pivots where space is limited. Its thin section design fits neatly into compact assemblies without sacrificing performance.

In consumer electronics, ER1038 ZZ Bearing is handy for devices like printers and small fans, ensuring smooth rotation. The shielded design helps keep dust out, extending the bearing’s lifespan in everyday use.

For light industrial tools, ER1038 ZZ Bearing handles radial loads efficiently, making it suitable for precision instruments. The chrome steel construction offers a good balance of durability and cost-effectiveness.

Automation systems benefit from ER1038 ZZ Bearing’s reliable performance in guided motion applications. Its ABEC-1 tolerance ensures consistent operation without unnecessary complexity.
