Snap Ring Groove Ball Bearings 310-2ZNR

Snap Ring Groove Ball Bearings 310-2ZNR

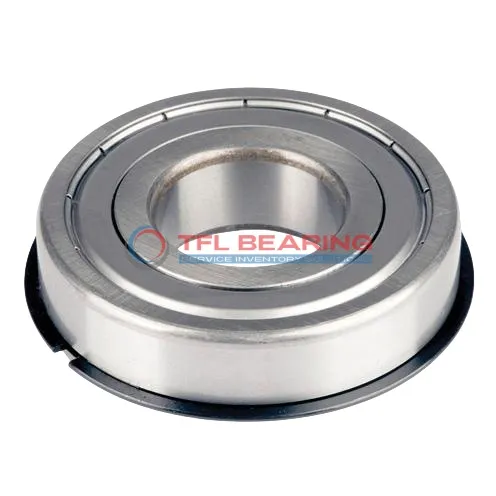

The 310-2ZNR is a shielded snap ring groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 14478 lbf and operates smoothly at speeds up to 5600 RPM.

Its stainless steel cage and shielded design keep dirt out while maintaining easy access for greasing. The snap ring feature ensures secure fitting, making installation straightforward.

This bearing suits environments with temperatures from -30°C to 120°C, ideal for industrial machinery or automotive applications. It’s interchangeable with SKF models for convenient replacements.

Weighing 1.15kg, it balances strength and manageability. Compliant with REACH standards, it’s a reliable choice for radial load scenarios.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 310-2ZNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 116.6 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 14478 lbf
  • Static Radial Load 11690 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 1.15 kg
Snap Ring Groove Ball Bearings 310-2ZNR dimension drawing
Download DWG Download PDF

Features

Why Choose 310-2ZNR Bearing for Precision Tasks?

310-2ZNR Bearing features shielded seals and snap ring grooves, ensuring secure positioning in radial applications.
Its chrome steel construction offers durability and resistance to wear, even under high dynamic radial loads of 14478 lbf.

The stainless steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 5,600 rpm, it delivers reliable performance in various industrial settings.

310-2ZNR Bearing operates efficiently in temperatures ranging from -30° to 120°C, making it versatile for different environments.
Its grease lubrication ensures smooth running with minimal maintenance required.

Application

Industrial Uses of 310-2ZNR Bearing
310-2ZNR Bearing is commonly used in conveyor systems, where its shielded design helps keep out dust and debris. The snap ring feature ensures easy installation and secure positioning in machinery.

In automotive applications, 310-2ZNR Bearing fits well in gearboxes and wheel hubs, providing reliable radial load support. Its grease lubrication ensures smooth operation even under constant use.

For automation equipment, 310-2ZNR Bearing’s stainless steel cage offers durability in robotic arms and assembly lines. The metric sizing makes it compatible with a variety of industrial setups.

Where Is 310-2ZNR Bearing Used?
You’ll often find 310-2ZNR Bearing in industrial fans, where its shielded seals protect against airborne particles. The chrome steel construction also handles high-speed rotations with ease.

In household appliances like washing machines, 310-2ZNR Bearing provides quiet and efficient performance. The snap ring groove simplifies maintenance and replacement in tight spaces.

Built for Heavy-Duty Use: 310-2ZNR Bearing
310-2ZNR Bearing excels in construction equipment, where its high dynamic load capacity handles tough conditions. The grease lubrication extends its lifespan even in dusty environments.

For packaging machinery, 310-2ZNR Bearing’s precise tolerances ensure consistent operation. The snap ring feature adds stability during high-speed production runs.

Automotive vs Aerospace: Applications of 310-2ZNR Bearing
In cars, 310-2ZNR Bearing supports drivetrain components, offering reliable performance under radial loads. Its shielded design is ideal for road debris and moisture resistance.

For aerospace ground equipment, 310-2ZNR Bearing’s lightweight yet sturdy build suits maintenance tools. The snap ring ensures quick assembly and disassembly for frequent servicing.
