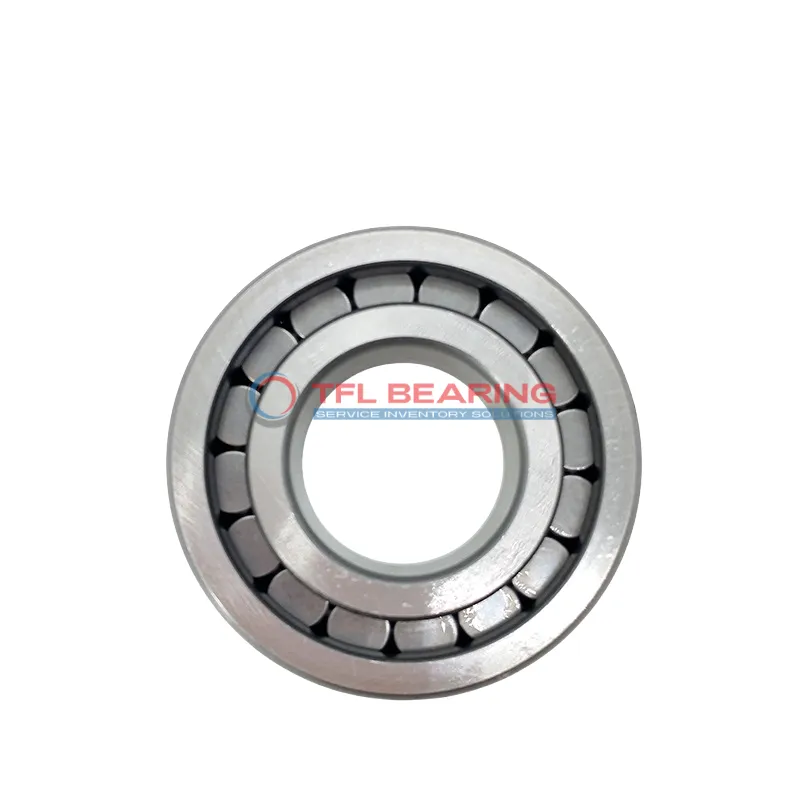

Single Row Full Complement Cylindrical Roller Bearings NJG 2308 VH

Single Row Full Complement Cylindrical Roller Bearings NJG 2308 VH

The NJG 2308 VH is a single row cylindrical roller bearing with a 40mm bore and 90mm outer diameter, built from tough chrome steel. It handles combined loads up to 32625 lbf and runs smoothly at speeds up to 4000 RPM.

Its full complement design, without a cage, allows for higher load capacity while maintaining stability. The open seal type makes lubrication with grease or oil straightforward.

This bearing suits applications with heavy radial loads and moderate axial displacement, such as gearboxes or industrial drives. It’s interchangeable with SKF models for easy replacement.

Weighing 1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it operates reliably in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJG 2308 VH
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 59.1 mm
  • Shoulder Dia Outer Ring 75.2 mm
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Permissible Axial Displacement(max.) 2.4 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 32625 lbf
  • Static Radial Load 35100 lbf
  • Max Speed 4000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 kg
Single Row Full Complement Cylindrical Roller Bearings NJG 2308 VH dimension drawing
Download DWG Download PDF

Features

Performance Features of NJG 2308 VH Bearing

NJG 2308 VH Bearing is built with a full complement of chrome steel rollers, offering high load capacity and durability.
Its dynamic radial load reaches 32625 lbf, making it suitable for heavy-duty applications.

The open design allows for easy lubrication with grease or oil, ensuring smooth operation.
With a maximum speed of 4000 rpm, it balances performance and reliability.

NJG 2308 VH Bearing operates in temperatures from -30° to 110°C, adapting to various environments.
Its chrome steel construction resists wear, extending the bearing’s service life.

Application

Industrial Uses of NJG 2308 VH Bearing
NJG 2308 VH Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is NJG 2308 VH Bearing Used?
You’ll often find NJG 2308 VH Bearing in automotive applications such as drivetrain components, where its combined load capacity ensures smooth performance. Its chrome steel construction also makes it suitable for high-speed operations in manufacturing equipment.

Built for Heavy-Duty Use: NJG 2308 VH Bearing
NJG 2308 VH Bearing excels in applications like rolling mills and mining equipment, thanks to its robust full complement roller design. The absence of a cage allows for higher load capacity, making it ideal for extreme conditions.

Automotive vs Industrial: Applications of NJG 2308 VH Bearing
In automotive settings, NJG 2308 VH Bearing supports transmissions and axles, while in industrial environments, it’s a go-to for pumps and compressors. Its metric sizing ensures compatibility across various machinery types.

Essential Roles of NJG 2308 VH Bearing
NJG 2308 VH Bearing plays a key role in wind turbines, where its ability to handle combined loads ensures reliable operation. The grease or oil lubrication options make it adaptable to different environmental conditions.
