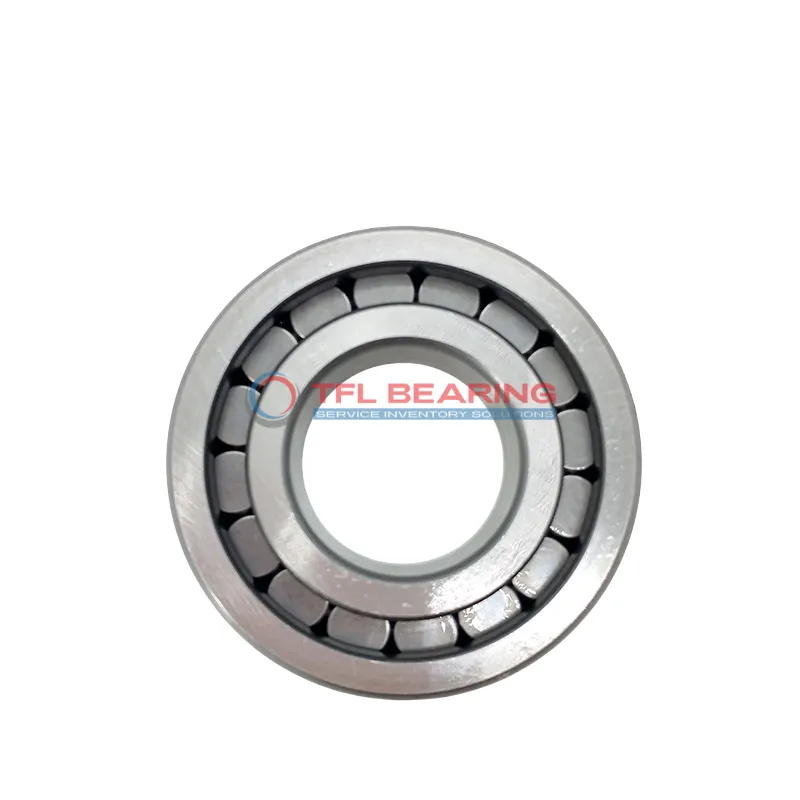

Single Row Full Complement Cylindrical Roller Bearings NJG 2305 VH

Single Row Full Complement Cylindrical Roller Bearings NJG 2305 VH

The NJG 2305 VH is a single row cylindrical roller bearing with a 25mm bore and 62mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 15345 lbf and reaches speeds of 6000 RPM.

Its full complement design means it has no cage, offering higher load capacity and durability. The open seal allows easy lubrication with grease or oil.

This bearing suits applications with axial displacement up to 1.7mm, making it versatile for various setups. It works well in temperatures from -30°C to 110°C.

Weighing 0.38kg, it’s a robust choice for industrial machinery or gear systems. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJG 2305 VH
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 24 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 36.1 mm
  • Shoulder Dia Outer Ring 48.2 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 1.7 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 15345 lbf
  • Static Radial Load 15300 lbf
  • Max Speed 6000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.38 kg

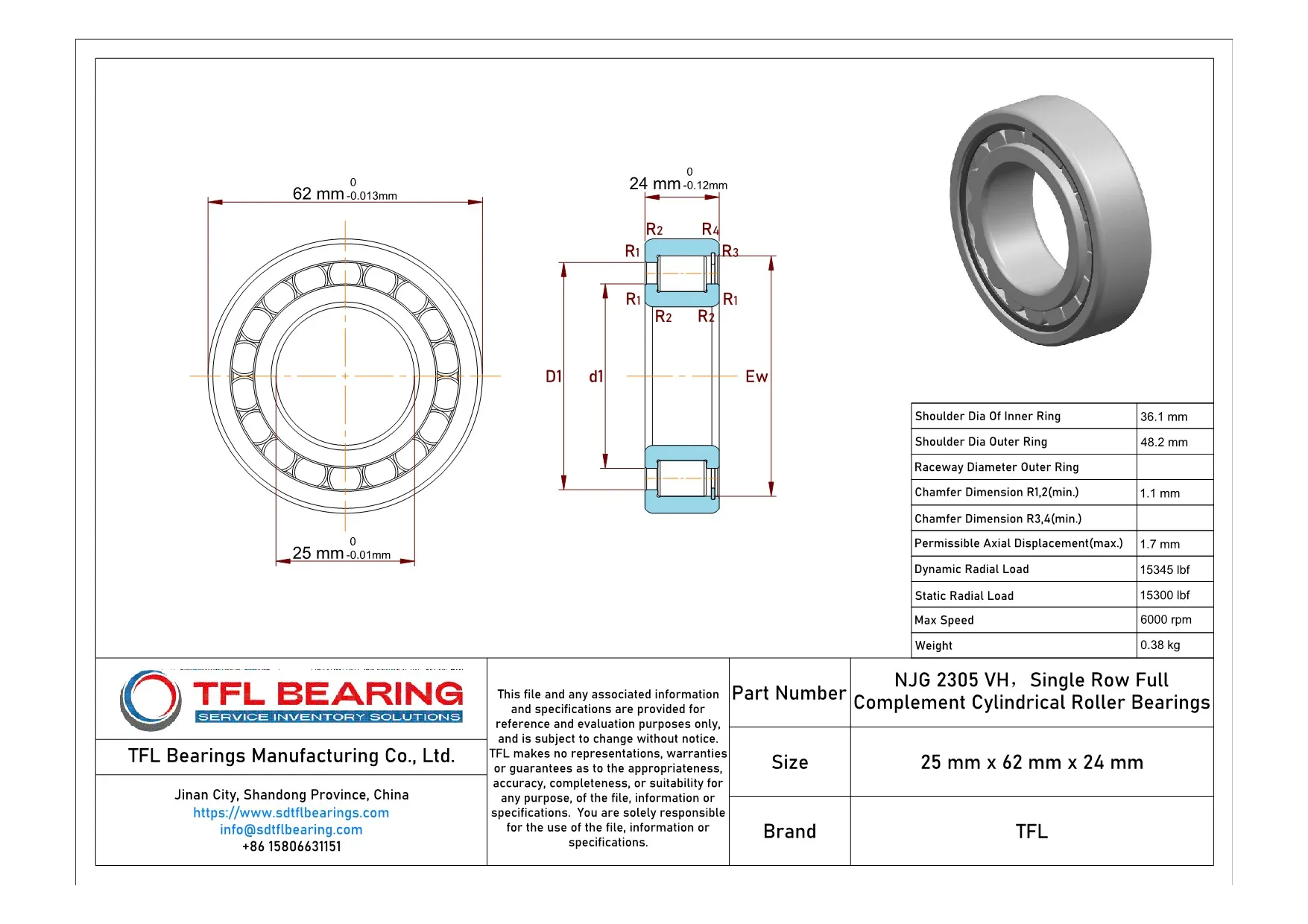

Single Row Full Complement Cylindrical Roller Bearings NJG 2305 VH dimension drawing
Download DWG Download PDF

Features

Performance Features of NJG 2305 VH Bearing

NJG 2305 VH Bearing is built with a full complement of chrome steel rollers, offering high radial load capacity up to 15345 lbf.
Its single-row cylindrical design ensures stability under combined loads, making it versatile for various applications.

The open seal type allows for easy lubrication with grease or oil, enhancing operational efficiency.
With a maximum speed of 6000 rpm, it delivers reliable performance in demanding conditions.

NJG 2305 VH Bearing operates smoothly within a temperature range of -30° to 110°C, suitable for diverse environments.
Its chrome steel construction provides durability and resistance to wear, extending service life.

The precise tolerances in bore and outer diameters ensure a secure fit, reducing vibration and noise.
This bearing is ideal for applications requiring high load capacity and long-term reliability.

Application

Industrial Uses of NJG 2305 VH Bearing
NJG 2305 VH Bearing is commonly used in heavy machinery like industrial gearboxes and conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for demanding environments.

Where Is NJG 2305 VH Bearing Used?
In automotive applications, NJG 2305 VH Bearing supports components such as transmissions and differentials, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: NJG 2305 VH Bearing
For automation equipment, NJG 2305 VH Bearing provides reliable performance in robotic arms and assembly lines, where precision and durability are key. The absence of a cage allows for higher load capacity in compact spaces.

Light-Duty vs Heavy-Duty: Best Uses for NJG 2305 VH Bearing
In consumer electronics like printers, NJG 2305 VH Bearing ensures smooth operation under moderate loads. However, it truly shines in industrial settings, where its full complement rollers handle heavier demands effortlessly.
