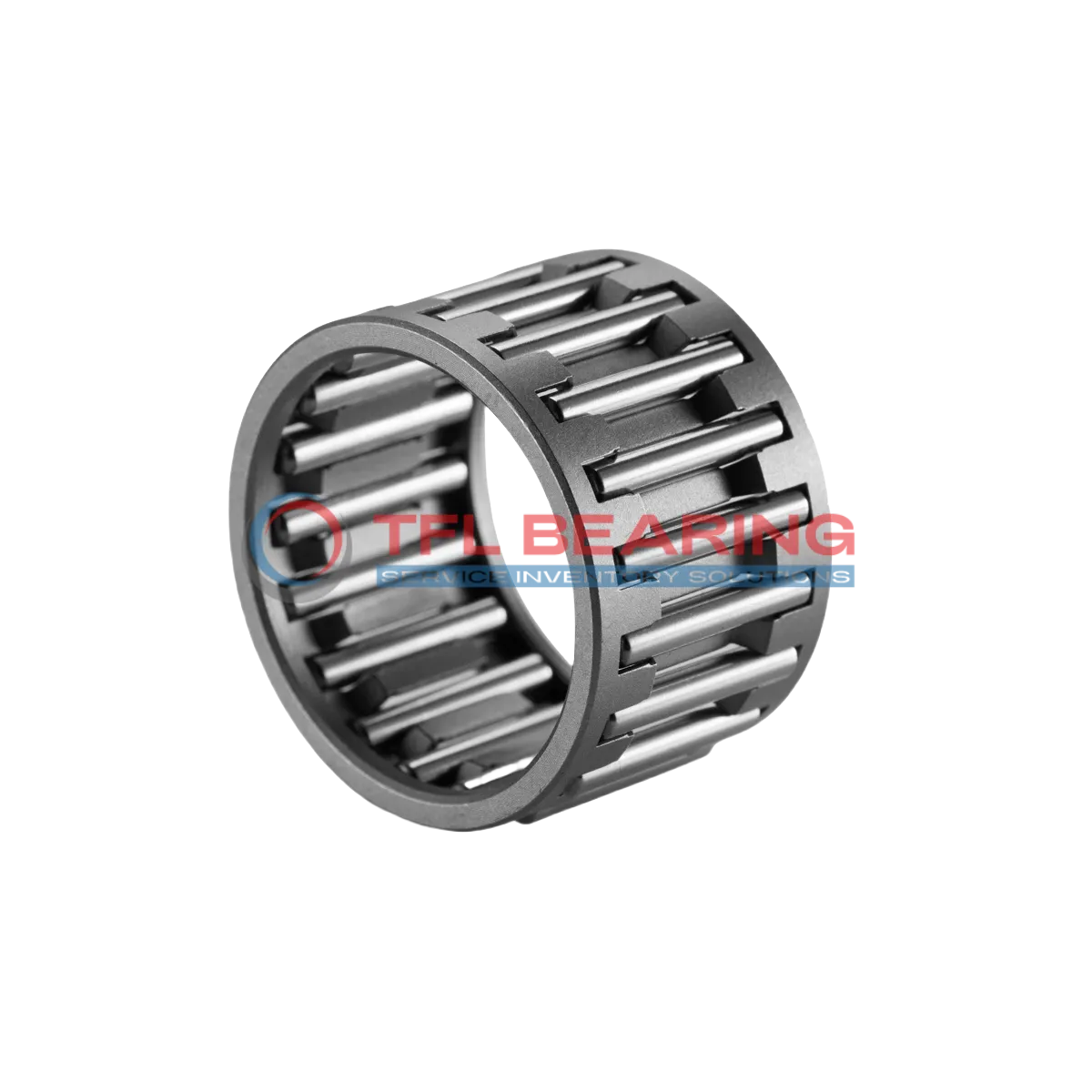

Needle Roller And Cage Assemblies K95X103X30

Needle Roller And Cage Assemblies K95X103X30

The K95X103X30 is a needle roller and cage assembly with a 95mm bore and 103mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 15525 lbf and operates smoothly at speeds up to 5000 RPM.
Its single-row design with a steel cage ensures durability and easy handling. The assembly works efficiently in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Suitable for applications like gearboxes or industrial machinery where high radial loads are present.
Weighing just 165g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K95X103X30
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 95 mm
  • Outer Dia 103 mm
  • Width 30 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 15525 lbf
  • Static Radial Load 40500 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 5000 rpm
  • Weight 165 g
Needle Roller And Cage Assemblies K95X103X30 dimension drawing
Download DWG Download PDF

Features

How Does K95X103X30 Bearing Handle Heavy Loads?
K95X103X30 Bearing features a robust steel cage and needle rollers, designed to handle dynamic radial loads up to 15525 lbf.
Its single-row construction ensures stability and precision, even under demanding conditions.
The steel needle rollers reduce friction, enhancing efficiency and extending the bearing’s service life.
With a maximum speed of 5000 rpm, it delivers reliable performance in high-speed applications.
K95X103X30 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its compact design and lightweight construction make it suitable for various industrial uses.

Application

Key Fields for K95X103X30 Bearing
K95X103X30 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive transmissions, K95X103X30 Bearing handles high radial loads efficiently, contributing to smoother gear shifts and longer component life. Its metric sizing makes it a versatile fit for various vehicle models.
For automation systems, K95X103X30 Bearing provides reliable performance in robotic arms and conveyor mechanisms. The single-row design simplifies installation while maintaining precision under dynamic conditions.
Medical imaging devices also benefit from K95X103X30 Bearing’s smooth operation and low maintenance needs. The steel cage and needles offer consistent performance in high-precision equipment.
