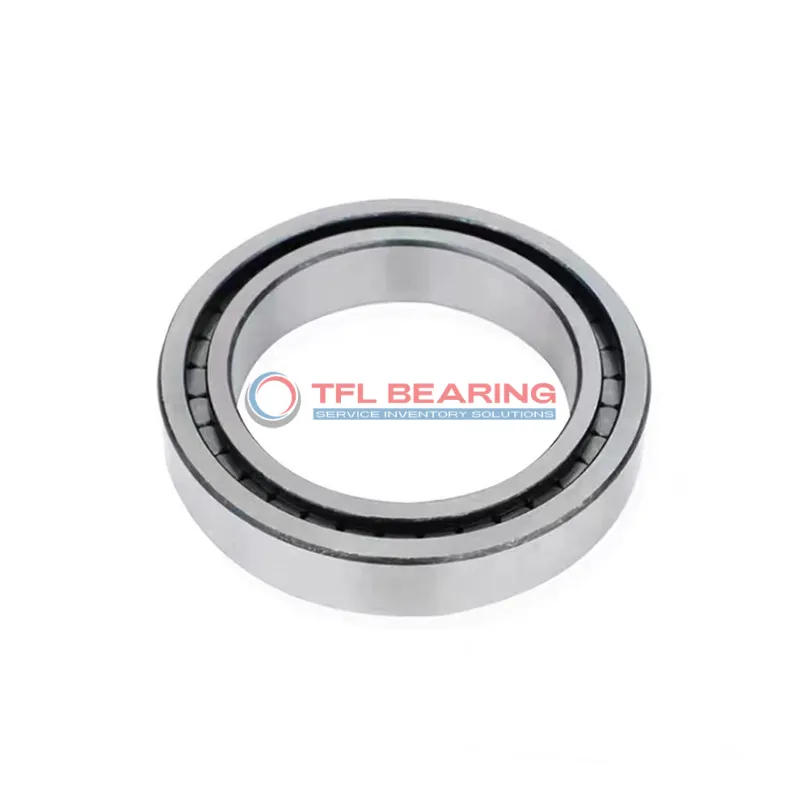

Single Row Full Complement Cylindrical Roller Bearings NCF 3016 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 3016 CV

The NCF 3016 CV is a single-row cylindrical roller bearing with an 80mm bore and 125mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 37125 lbf and runs smoothly at speeds up to 3000 RPM.

Its full complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for heavy-duty applications like gearboxes or industrial machinery where high radial loads are present.

Weighing 1.43kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 3016 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 34 mm
  • Width Tolerance -0.15mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 95 mm
  • Shoulder Dia Outer Ring 111 mm
  • Raceway Diameter Outer Ring 116.99 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 4 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 37125 lbf
  • Static Radial Load 51300 lbf
  • Max Speed 3000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.43 kg

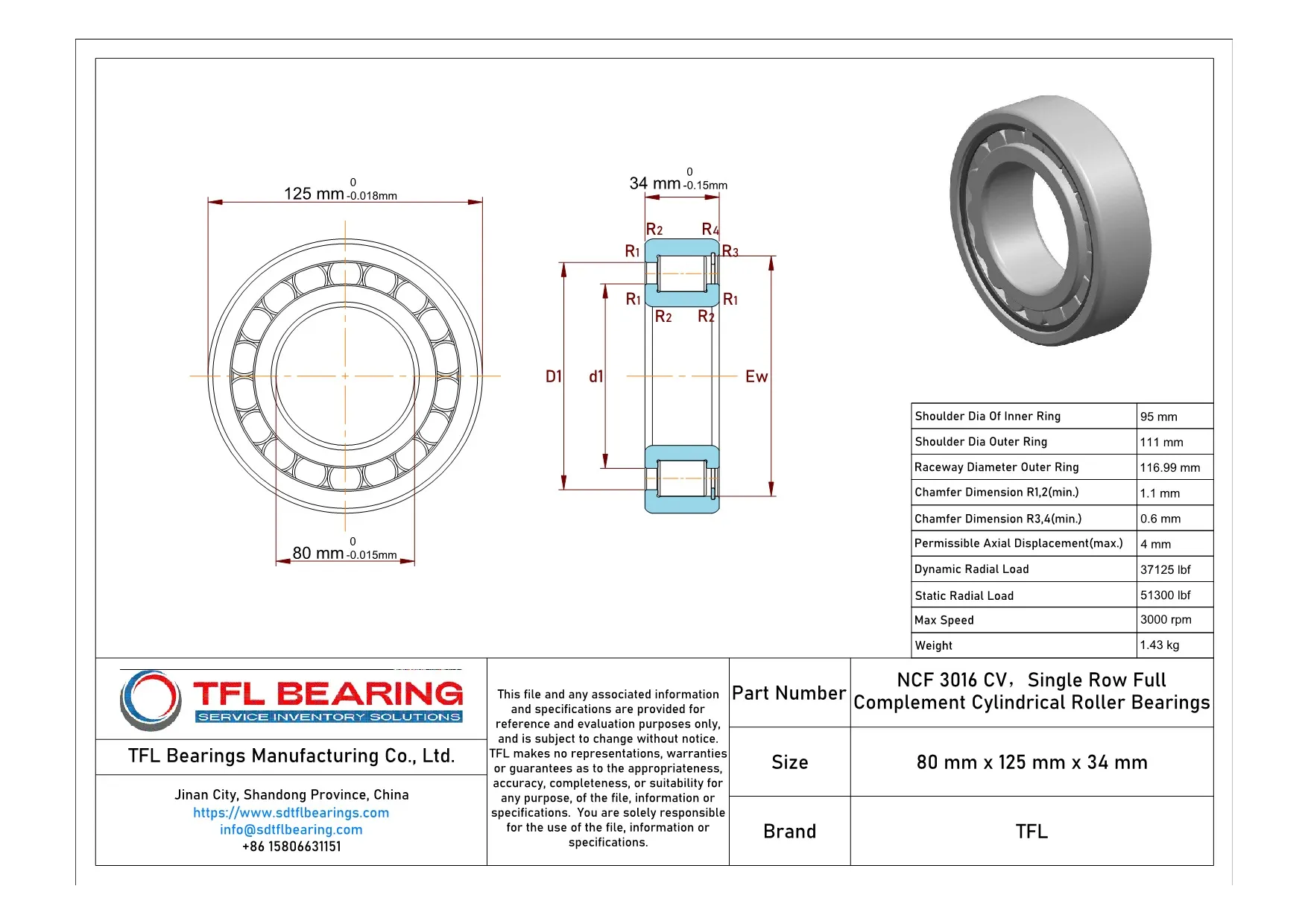

Single Row Full Complement Cylindrical Roller Bearings NCF 3016 CV dimension drawing
Download DWG Download PDF

Features

Why Choose NCF 3016 CV Bearing for Precision Tasks?

NCF 3016 CV Bearing features a full complement of cylindrical rollers, enhancing its load-carrying capacity without a cage.
This design allows for higher radial load handling, with a dynamic radial load capacity of 37,125 lbf.

The chrome steel construction ensures durability and resistance to wear in demanding applications.
Its precision engineering maintains performance even under combined load conditions.

NCF 3016 CV Bearing operates smoothly at speeds up to 3,000 rpm, suitable for various industrial uses.
The open seal design simplifies lubrication, whether using grease or oil.

With a temperature range of -30° to 110°C, it performs reliably in diverse environments.
The absence of a cage reduces friction, contributing to longer service life.

Application

Industrial Uses of NCF 3016 CV Bearing
NCF 3016 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

Where Is NCF 3016 CV Bearing Used?
You’ll find NCF 3016 CV Bearing in automotive applications such as truck transmissions, where its combined load capacity ensures smooth operation. The chrome steel construction also makes it suitable for high-speed scenarios.

Built for Heavy-Duty Use: NCF 3016 CV Bearing
NCF 3016 CV Bearing excels in construction equipment like cranes, thanks to its robust design and high static radial load rating. The absence of a cage allows for maximum roller count, enhancing load distribution.

Automotive vs Industrial: Applications of NCF 3016 CV Bearing
In automotive settings, NCF 3016 CV Bearing supports drivetrain components, while in industrial plants, it’s ideal for pumps and compressors. Its metric dimensions ensure compatibility across various equipment types.

Perfect Fit for Automation: NCF 3016 CV Bearing
NCF 3016 CV Bearing works well in robotic arms and automated assembly lines, where precision and durability are key. The grease or oil lubrication options adapt to different operational needs.
