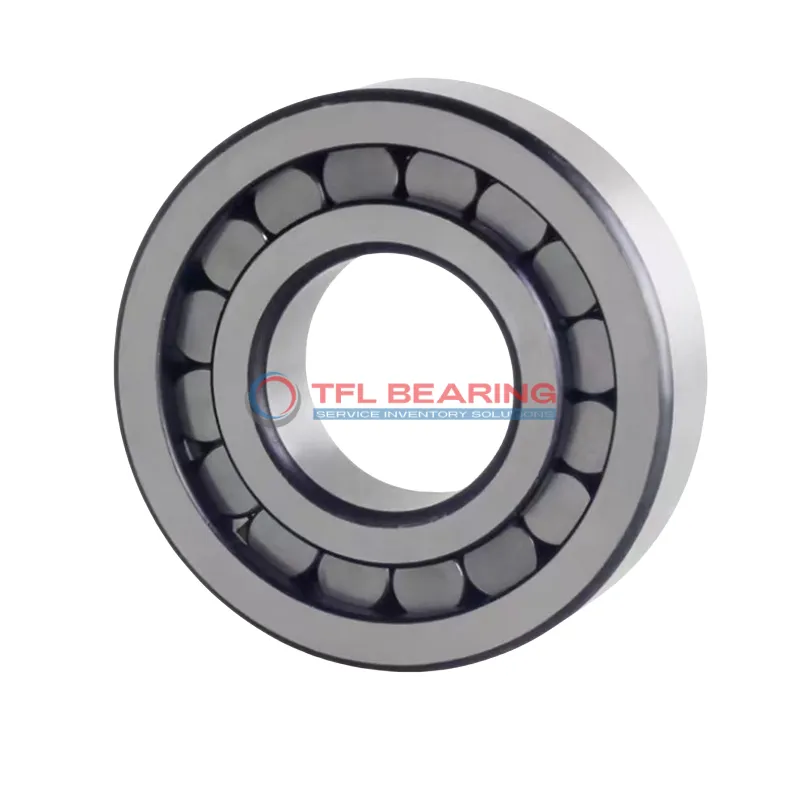

Single Row Full Complement Cylindrical Roller Bearings NCF 2976 V

Single Row Full Complement Cylindrical Roller Bearings NCF 2976 V

The NCF 2976 V is a single row full complement cylindrical roller bearing with a 380mm bore and 520mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 353250 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design eliminates the need for a cage, allowing more rollers for higher load capacity. The open seal type makes lubrication with grease or oil straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common. It can operate in temperatures from -30°C to 110°C.

Weighing 52kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2976 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 520 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 82 mm
  • Width Tolerance -0.40mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 427.5 mm
  • Shoulder Dia Outer Ring 473.5 mm
  • Raceway Diameter Outer Ring 488 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 5 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 353250 lbf
  • Static Radial Load 731250 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 52 kg

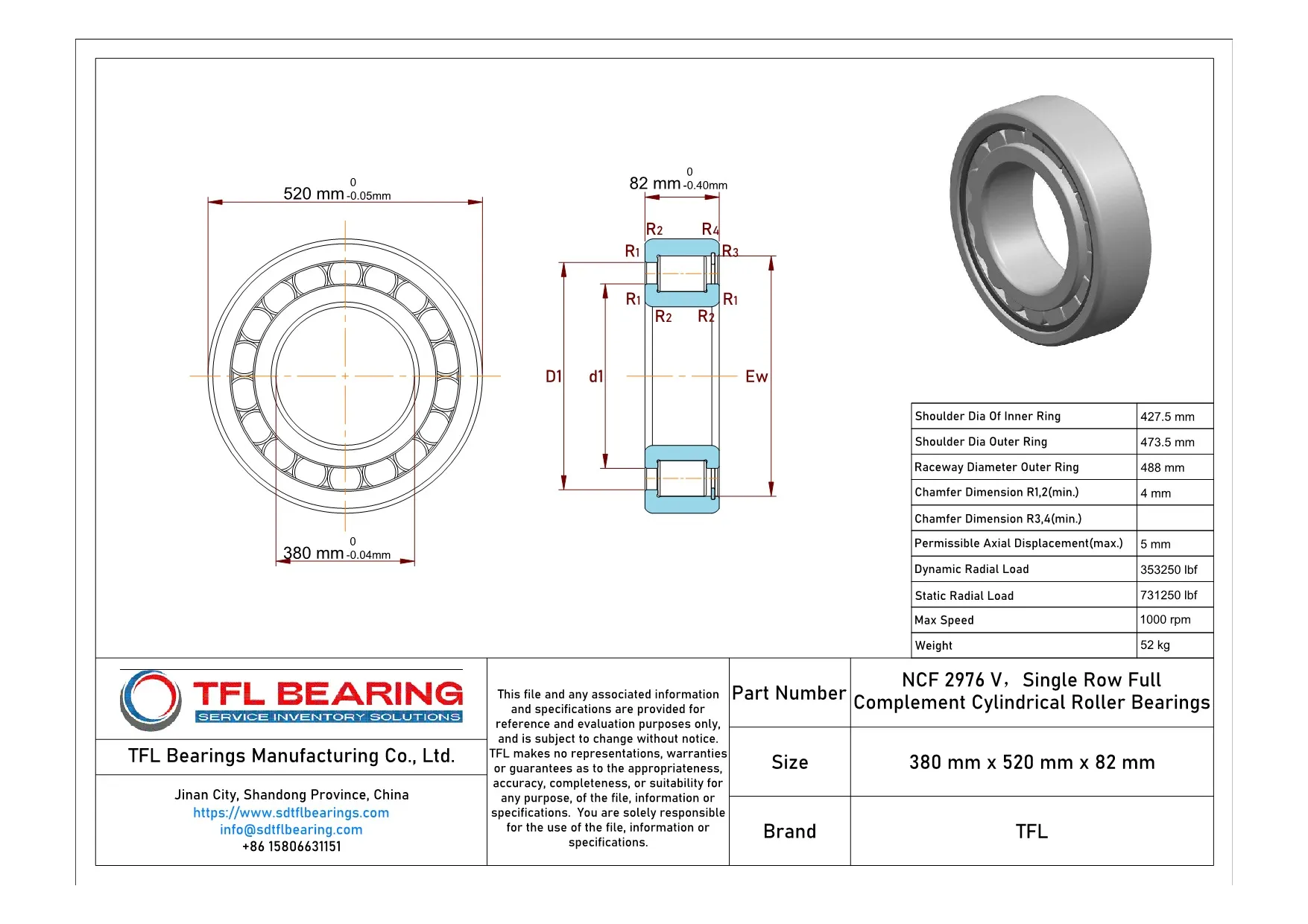

Single Row Full Complement Cylindrical Roller Bearings NCF 2976 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2976 V Bearing

NCF 2976 V Bearing is built with a full complement of chrome steel rollers, offering high radial load capacity up to 353,250 lbf.
Its single-row cylindrical design ensures efficient load distribution, making it suitable for combined load applications.

The open seal type allows for easy lubrication with grease or oil, enhancing operational flexibility.
With a maximum speed of 1,000 rpm, it maintains performance in various industrial settings.

NCF 2976 V Bearing operates in temperatures from -30° to 110°C, ensuring reliability in diverse conditions.
Its robust construction reduces maintenance needs, providing long-term durability.

Application

Industrial Uses of NCF 2976 V Bearing
NCF 2976 V Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type simplifies lubrication, making it suitable for harsh environments.

In automotive applications, NCF 2976 V Bearing supports large drivetrain components, such as truck axles, due to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of heavy-duty vehicles.

For wind turbines, NCF 2976 V Bearing’s ability to withstand combined loads makes it ideal for rotor shafts. The absence of a cage allows for higher load capacity, which is crucial in renewable energy systems.

Key Fields for NCF 2976 V Bearing
NCF 2976 V Bearing excels in mining equipment, where its durability and high static radial load capacity are essential. The grease or oil lubrication options adapt to different operational conditions.

In steel mills, NCF 2976 V Bearing’s resistance to extreme temperatures ensures reliable performance. Its full complement rollers provide stability under heavy loads, reducing downtime.

What Makes NCF 2976 V Bearing a Preferred Choice?
NCF 2976 V Bearing is often chosen for paper manufacturing machinery due to its high dynamic radial load rating. The chrome steel rollers offer long service life even in demanding conditions.

For construction equipment, NCF 2976 V Bearing’s large bore diameter accommodates heavy shafts. Its design minimizes axial displacement, ensuring precise alignment in critical applications.
