Single Row Full Complement Cylindrical Roller Bearings NCF 1872 V

Single Row Full Complement Cylindrical Roller Bearings NCF 1872 V

The NCF 1872 V is a single row full complement cylindrical roller bearing with a 360mm bore and 440mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 90450 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design eliminates the cage, allowing more rollers for higher load capacity. The open seal type makes lubrication with grease or oil straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery where radial and axial loads are present. It operates well in temperatures from -30°C to 110°C.

Weighing 11.5kg, it’s robust for its size and interchangeable with SKF models. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 1872 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 440 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 38 mm
  • Width Tolerance -0.40mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 388 mm
  • Shoulder Dia Outer Ring 413 mm
  • Raceway Diameter Outer Ring 418.9 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 3 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 90450 lbf
  • Static Radial Load 202500 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 11.5 kg

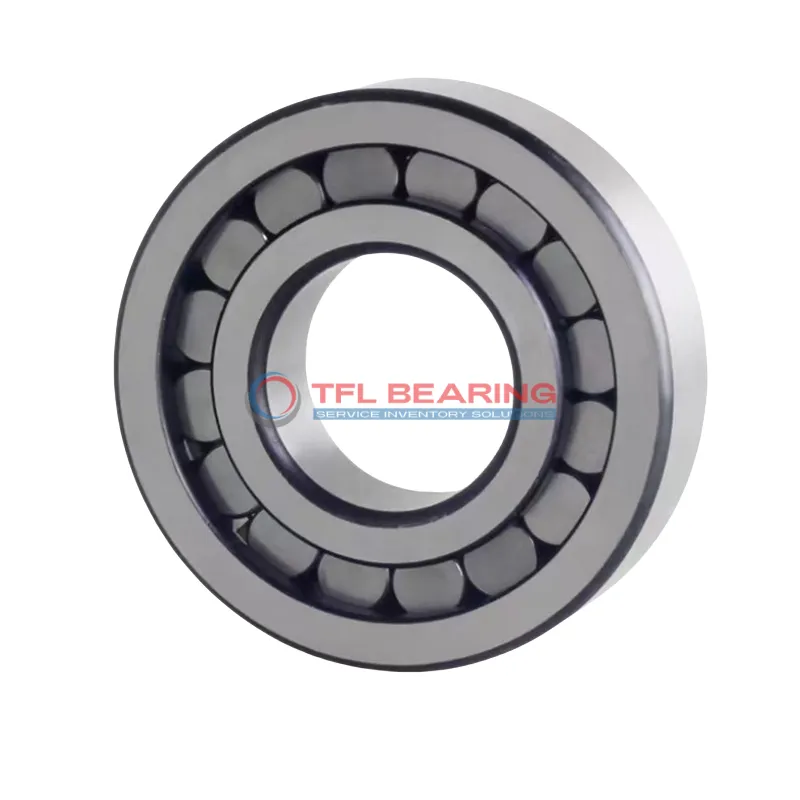

Single Row Full Complement Cylindrical Roller Bearings NCF 1872 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 1872 V Bearing

NCF 1872 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 90450 lbf, making it suitable for heavy-duty applications.

The full complement of rollers ensures maximum load-carrying capacity without a cage, enhancing durability.
With a maximum speed of 1000 rpm, it delivers reliable performance in various industrial settings.

NCF 1872 V Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances of NCF 1872 V Bearing ensure smooth operation and long service life.
Its robust construction makes it a dependable choice for demanding environments.

Application

Industrial Uses of NCF 1872 V Bearing
NCF 1872 V Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is NCF 1872 V Bearing Used?
You’ll often find NCF 1872 V Bearing in wind turbines and mining equipment, where its ability to handle combined loads makes it a reliable choice. The open seal design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: NCF 1872 V Bearing
NCF 1872 V Bearing excels in applications like steel mills and paper processing machines, where its high static radial load capacity is essential. The absence of a cage means more rollers can fit, boosting load-bearing performance.

Automotive vs Aerospace: Applications of NCF 1872 V Bearing
In automotive settings, NCF 1872 V Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. Its metric sizing ensures compatibility with a wide range of industrial standards.

Practical Applications of NCF 1872 V Bearing
NCF 1872 V Bearing is ideal for construction equipment like cranes and excavators, where its grease or oil lubrication options adapt to various operating conditions. The temperature range suits both cold and moderately hot environments.
