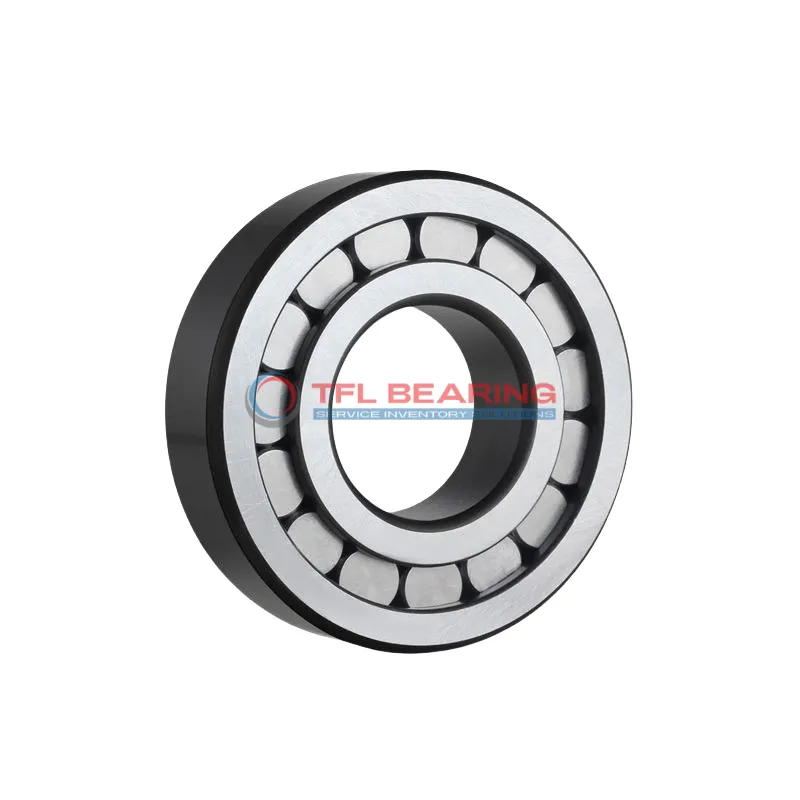

Single Row Full Complement Cylindrical Roller Bearings NCF 3092 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 3092 CV

The NCF 3092 CV is a single row full complement cylindrical roller bearing, measuring 460mm in bore diameter and 680mm in outer diameter. Made from durable chrome steel, it handles combined loads with a dynamic radial load capacity of 830,250 lbf.

Its full complement design eliminates the need for a cage, allowing more rollers and higher load capacity. The open seal type makes lubrication with grease or oil straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery, where high radial loads are common. It operates smoothly in temperatures ranging from -30°C to 110°C.

Weighing 195kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 3092 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 460 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 680 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 163 mm
  • Width Tolerance -0.45mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 522 mm
  • Shoulder Dia Outer Ring 611 mm
  • Raceway Diameter Outer Ring 632.97 mm
  • Chamfer Dimension r1,2(min.) 6 mm
  • Permissible Axial Displacement(max.) 16 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 830250 lbf
  • Static Radial Load 1563750 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 195 kg

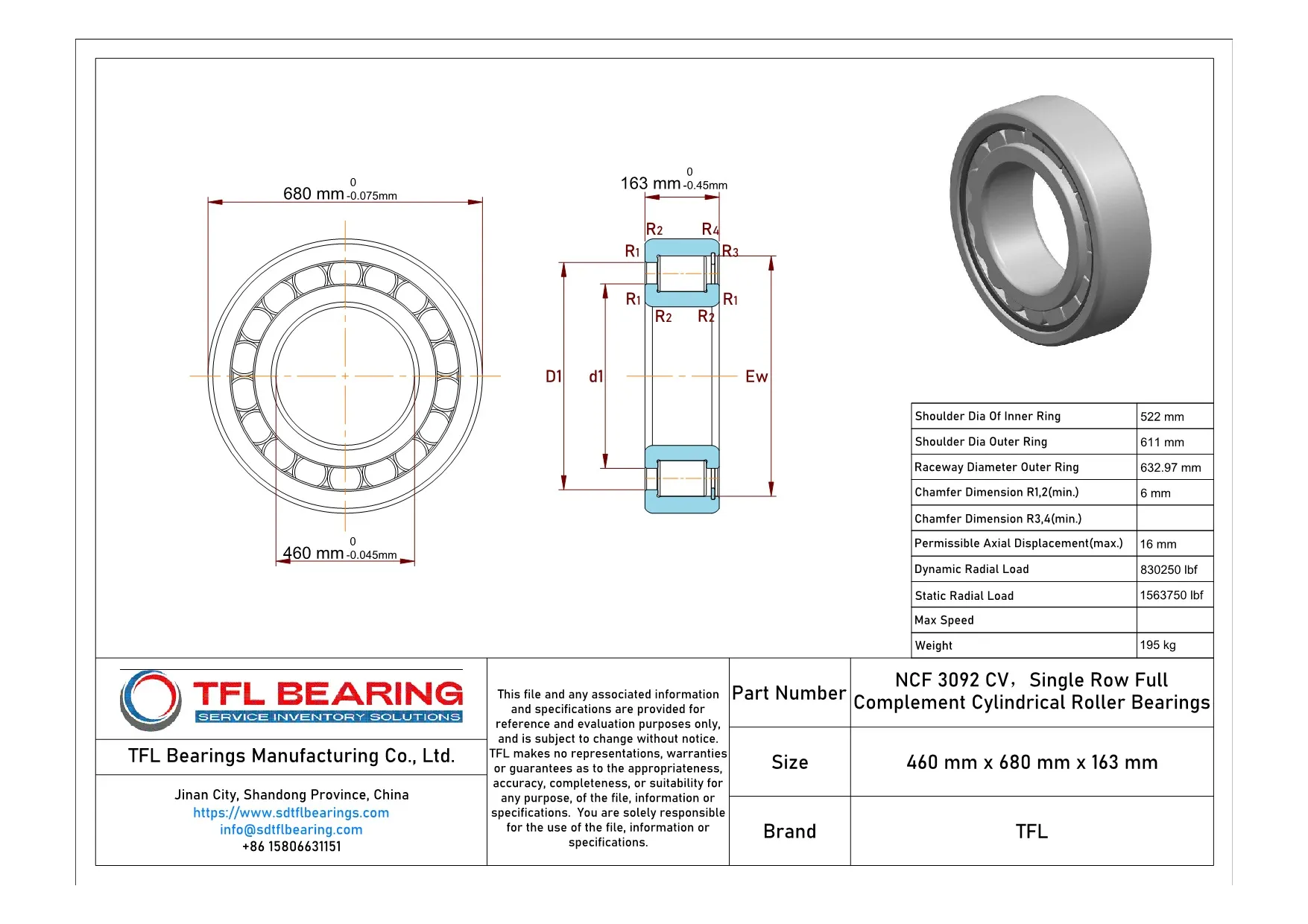

Single Row Full Complement Cylindrical Roller Bearings NCF 3092 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 3092 CV Bearing

NCF 3092 CV Bearing is built with a full complement of chrome steel rollers, offering high load capacity and durability.
Its dynamic radial load rating of 830,250 lbf ensures reliable performance in heavy-duty applications.

The open design allows for easy lubrication with grease or oil, maintaining smooth operation.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

The single-row cylindrical design provides excellent resistance to combined loads.
Precision tolerances on bore and outer diameters ensure a secure fit and stable operation.

Application

Industrial Uses of NCF 3092 CV Bearing
NCF 3092 CV Bearing is commonly used in heavy machinery, such as large gearboxes and industrial presses, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is NCF 3092 CV Bearing Used?
You’ll find NCF 3092 CV Bearing in wind turbines and mining equipment, where its chrome steel construction withstands harsh environments. Its large bore size makes it ideal for applications requiring robust support and durability.

Built for Heavy-Duty Use: NCF 3092 CV Bearing
NCF 3092 CV Bearing excels in steel mills and paper processing machines, thanks to its ability to manage combined loads. The absence of a cage means more rollers can fit, boosting its load capacity significantly.

Automotive vs Aerospace: Applications of NCF 3092 CV Bearing
In automotive settings, NCF 3092 CV Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. Its metric dimensions ensure compatibility with a wide range of industrial standards.

Practical Applications of NCF 3092 CV Bearing
NCF 3092 CV Bearing is a go-to for construction equipment like cranes and bulldozers, where reliability under heavy loads is key. The grease or oil lubrication options make it adaptable to various operating conditions.
