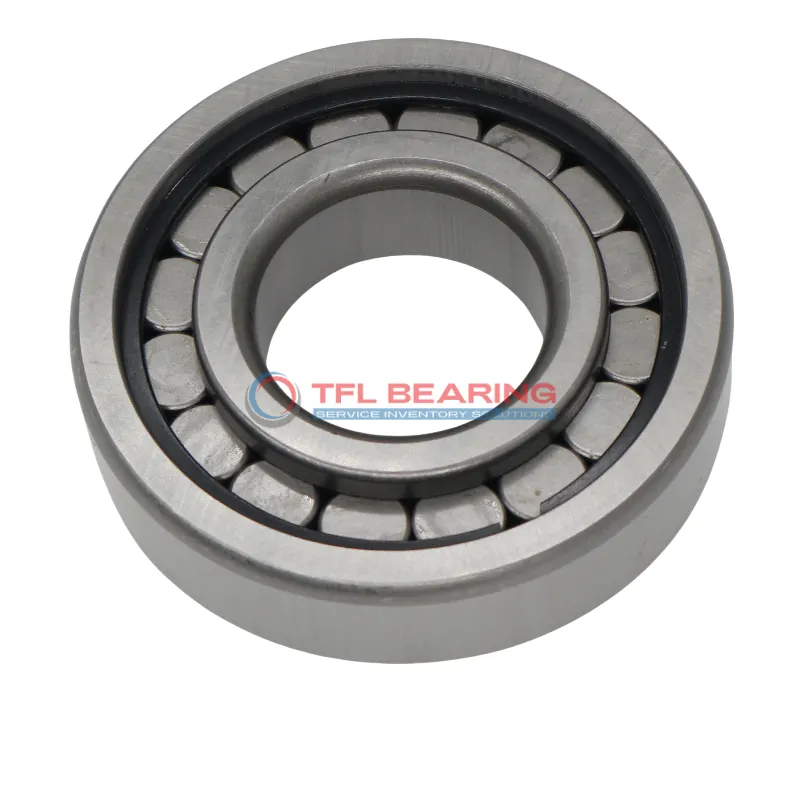

Single Row Full Complement Cylindrical Roller Bearings NCF 2234 V

Single Row Full Complement Cylindrical Roller Bearings NCF 2234 V

The NCF 2234 V is a single row full complement cylindrical roller bearing with a 170mm bore and 310mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 247500 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal allows for easy lubrication with grease or oil, suitable for temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 28.7kg, it’s robust and built to last. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2234 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 310 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 86 mm
  • Width Tolerance -0.25mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 219 mm
  • Shoulder Dia Outer Ring 269 mm
  • Raceway Diameter Outer Ring 281.09 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Chamfer Dimension r3,4(min.) 4 mm
  • Permissible Axial Displacement(max.) 7 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 247500 lbf
  • Static Radial Load 382500 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 28.7 kg

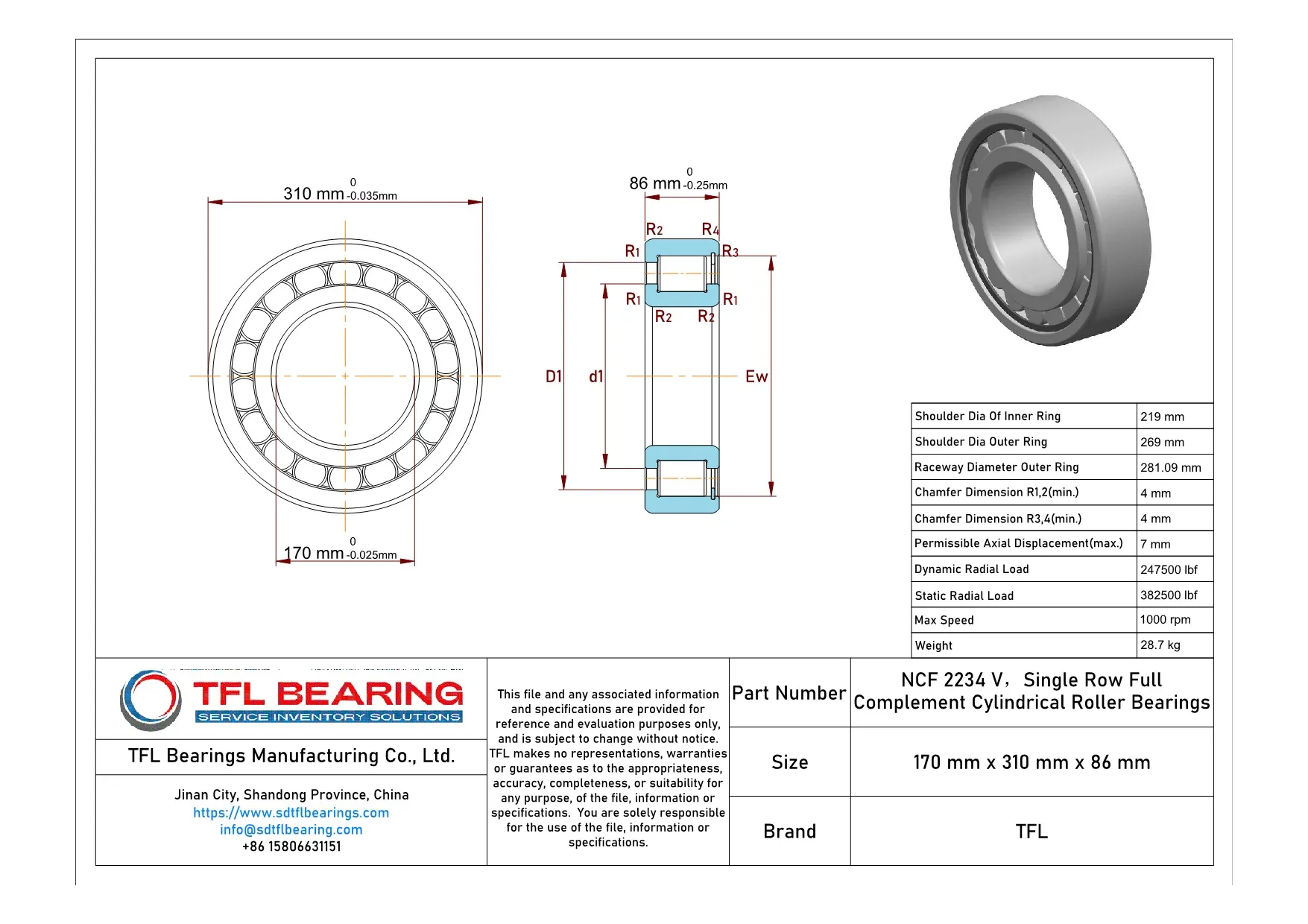

Single Row Full Complement Cylindrical Roller Bearings NCF 2234 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2234 V Bearing

NCF 2234 V Bearing is built with a full complement of chrome steel rollers, enhancing its load-carrying capacity.
Its dynamic radial load reaches 247,500 lbf, making it suitable for heavy-duty applications.

The open design allows for easy lubrication with grease or oil, ensuring smooth operation.
With a maximum speed of 1,000 rpm, it balances performance and durability.

NCF 2234 V Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its robust construction ensures reliable performance in various industrial environments.

The absence of a cage reduces friction, extending the bearing’s service life.
Precision tolerances on bore and outer diameters ensure a perfect fit during installation.

Application

Industrial Uses of NCF 2234 V Bearing
NCF 2234 V Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring longevity in demanding environments.

Where Is NCF 2234 V Bearing Used?
In automotive applications, NCF 2234 V Bearing supports components such as heavy-duty axles and transmissions, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of European and Asian vehicle designs.

Built for Heavy-Duty Use: NCF 2234 V Bearing
For automation and robotics, NCF 2234 V Bearing provides reliable performance in robotic arms and automated assembly lines. The absence of a cage allows for higher load capacity, making it suitable for high-stress operations.

Medical vs Industrial: Where NCF 2234 V Bearing Excels
In medical imaging devices, NCF 2234 V Bearing offers smooth operation due to its precision engineering. However, it truly shines in industrial settings like steel mills, where its durability withstands extreme conditions.

Practical Applications of NCF 2234 V Bearing
NCF 2234 V Bearing is ideal for wind turbines, where its ability to handle combined loads ensures consistent performance. The grease or oil lubrication options make it adaptable to various operational requirements.
