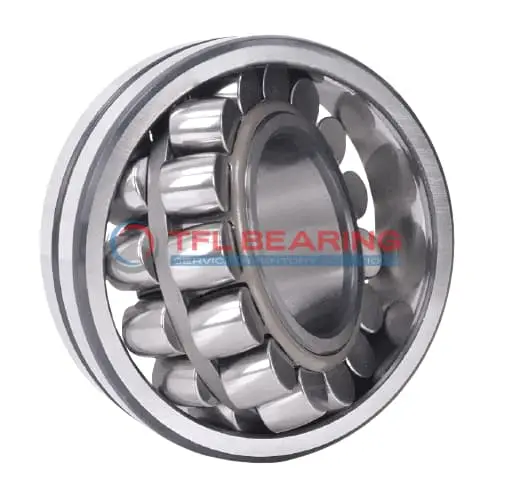

22217 E/W64 Double Row Spherical Roller Bearing

22217 E/W64 Double Row Spherical Roller Bearing

The 22217 E/W64 is a double-row spherical roller bearing with an 85mm bore and 150mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 65419 lbf and runs smoothly at speeds up to 5600 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The bearing requires lubrication and operates in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 2.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22217 E/W64
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 150 x 36 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 101 mm
  • Shoulder/Recess Dia Of Outer Ring 133 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 65419 lbf
  • Static Radial Load 73063 lbf
  • Max Speed 5600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.7 kg
  • Price （US$） 127.13

Features

Performance Features of 22217 E/W64 Bearing

22217 E/W64 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 65419 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 5600 rpm, it delivers reliable performance in demanding environments.

22217 E/W64 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, reducing wear and extending service life.

The lubrication groove and hole design in 22217 E/W64 Bearing ensure consistent performance.
This feature simplifies maintenance while enhancing durability in industrial applications.

Application

Industrial Uses of 22217 E/W64 Bearing
The 22217 E/W64 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. Its chrome steel construction ensures durability in demanding industrial environments.

Where Is 22217 E/W64 Bearing Used?
You’ll often find 22217 E/W64 Bearing in mining equipment, where its high dynamic radial load capacity supports heavy-duty operations. The open seal design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 22217 E/W64 Bearing
22217 E/W64 Bearing excels in construction equipment like cranes and excavators, thanks to its spherical roller design that accommodates misalignment. The steel cage adds extra strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of 22217 E/W64 Bearing
In automotive applications, 22217 E/W64 Bearing is used in gearboxes and drivetrains, where its high-speed capability is beneficial. For aerospace, its temperature range makes it suitable for auxiliary systems.

Practical Applications of 22217 E/W64 Bearing
22217 E/W64 Bearing is ideal for conveyor systems in manufacturing plants, where its combined load handling keeps operations smooth. The metric sizing ensures compatibility with a wide range of machinery.
