Needle Roller Thrust Bearing Washers AS0515

Needle Roller Thrust Bearing Washers AS0515

The AS0515 is a needle roller thrust bearing washer with a 5mm bore and 15mm outer diameter, crafted from spring steel for durability. It’s just 1mm thick, making it a compact yet sturdy component.
Designed to handle high thrust loads, this washer works smoothly in temperatures ranging from -30°C to 110°C. Its precise tolerances ensure a reliable fit in various applications.
The AS0515 is interchangeable with INA washers, offering flexibility for replacements. Ideal for use in small machinery or automotive systems where space is limited.
Weighing only 1g, it’s lightweight and RoHS compliant, making it a practical choice for eco-conscious projects.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AS0515
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 5 mm
  • Bore Dia Tolerance 0.02mm to 0.14mm
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.370mm to -0.04mm
  • Width 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 1 g

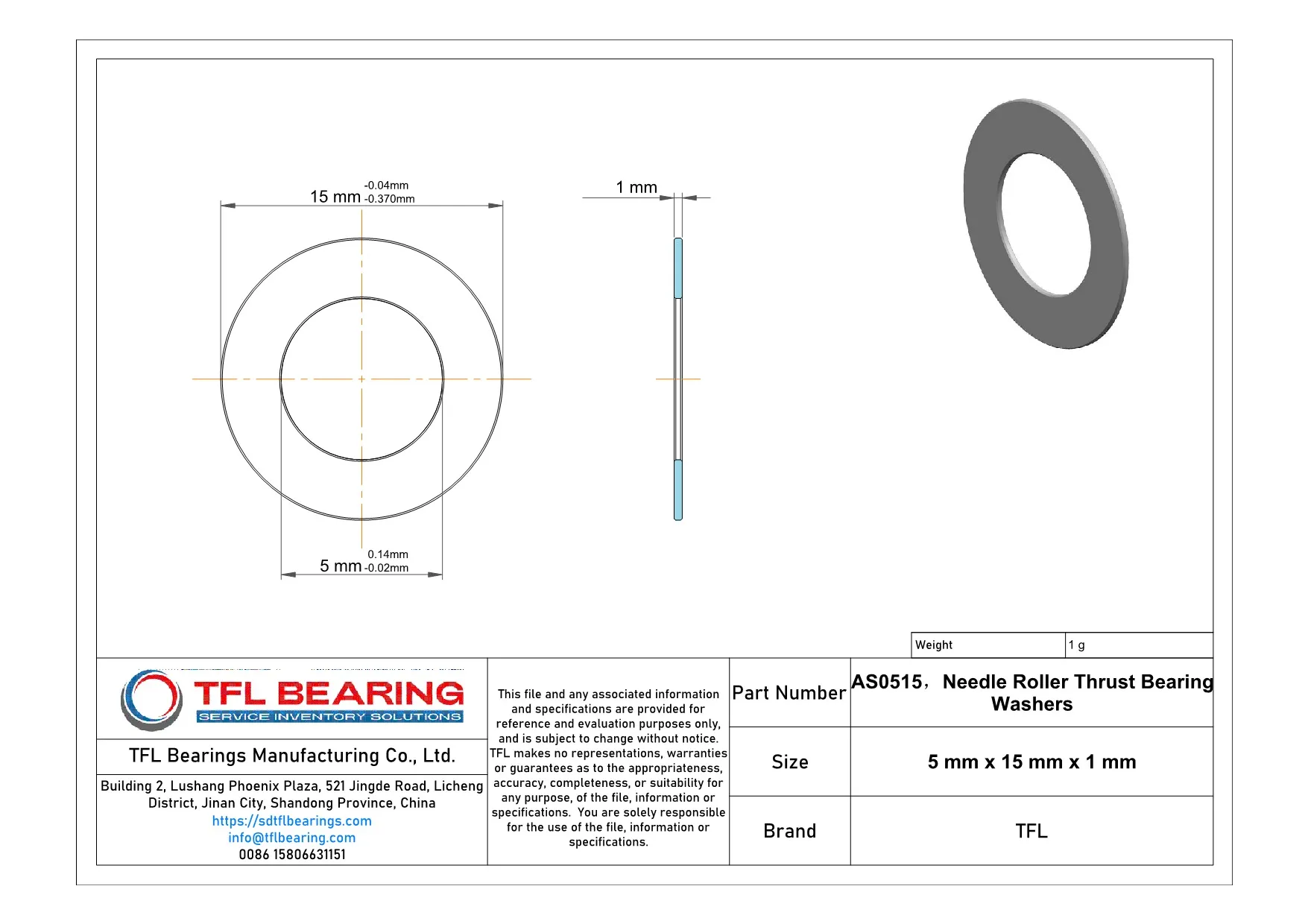

Needle Roller Thrust Bearing Washers AS0515 dimension drawing
Download DWG Download PDF

Features

Why Choose AS0515 Bearing for Precision Tasks?
AS0515 Bearing is crafted from spring steel, offering excellent durability and precision for needle roller applications.
Its slim 1 mm width and precise tolerances ensure seamless integration in compact designs.
The temperature range of -30° to 110°C allows AS0515 Bearing to perform reliably in varied environments.
With a lightweight design of just 1 g, it minimises added bulk without sacrificing strength.
AS0515 Bearing’s compatibility with INA models makes it a versatile choice for replacements or upgrades.
Its needle roller design ensures efficient load distribution, enhancing overall performance.

Application

Common Applications of AS0515 Bearing
AS0515 Bearing is widely used in compact industrial gearboxes, where its thin profile and needle roller design efficiently handle high radial loads in tight spaces. The spring steel construction ensures durability even in demanding environments.
In automotive applications, AS0515 Bearing fits perfectly in small transmission components, providing smooth operation under continuous stress. Its metric sizing makes it a versatile choice for various vehicle models.
For precision instruments like medical pumps, AS0515 Bearing offers reliable performance due to its consistent tolerances. The lightweight design is particularly useful in portable devices where every gram counts.
Automotive vs Aerospace: Applications of AS0515 Bearing
In automotive systems, AS0515 Bearing excels in clutch mechanisms, where its slim design saves space without compromising strength. The spring steel material withstands frequent engagement cycles.
Aerospace applications benefit from AS0515 Bearing’s lightweight properties in actuator systems, where weight reduction is critical. Its temperature tolerance ensures performance across various flight conditions.
Practical Applications of AS0515 Bearing
AS0515 Bearing works well in small electric motors, particularly in household appliances like blenders, where space constraints exist. The needle roller design provides smooth rotation under moderate loads.
In robotics, AS0515 Bearing finds use in compact joint mechanisms, offering precise movement control. The 1mm width allows for integration in slender robotic arm designs.
