Needle Roller Thrust Bearing Washers AS2035

Needle Roller Thrust Bearing Washers AS2035

The AS2035 needle roller thrust bearing washers are slim, just 1mm thick, with a 20mm bore and 35mm outer diameter. Made from spring steel, they offer reliable performance in temperatures from -30°C to 110°C.
These washers handle high thrust loads efficiently, thanks to their needle roller design. Their compact size makes them suitable for tight spaces where durability is needed.
They are interchangeable with INA bearings, providing a practical replacement option. Ideal for use in gearboxes, automotive applications, or industrial machinery.
Weighing only 5g, they are lightweight yet sturdy. Compliant with RoHS standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AS2035
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 20 mm
  • Bore Dia Tolerance 0.04mm to 0.25mm
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.440mm to -0.05mm
  • Width 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 5 g

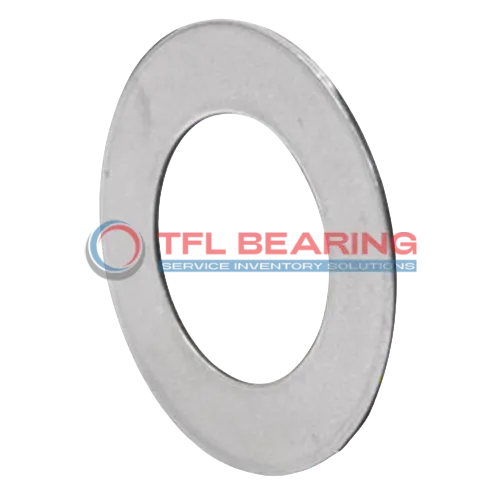

Needle Roller Thrust Bearing Washers AS2035 dimension drawing
Download DWG Download PDF

Features

Why Choose AS2035 Bearing for Precision Tasks?
AS2035 Bearing is crafted from spring steel, offering excellent durability and resistance to wear.
Its precise dimensions, with a bore diameter of 20 mm and outer diameter of 35 mm, ensure accurate performance.
The needle roller design provides smooth operation even under high thrust loads.
With a temperature range of -30° to 110°C, AS2035 Bearing performs reliably in various conditions.
Its lightweight design at just 5 g makes it ideal for applications where weight is a concern.
The RoHS compliance ensures it meets environmental and safety standards.

Application

Industrial Uses of AS2035 Bearing
AS2035 Bearing is commonly used in industrial gearboxes, where its thin profile helps save space without compromising load capacity. The spring steel material ensures resilience under frequent stress, making it suitable for high-cycle applications.
In automotive transmissions, AS2035 Bearing provides reliable support for clutch mechanisms, handling axial loads efficiently. Its metric dimensions make it a versatile choice for various vehicle designs, from compact cars to light trucks.
For automation systems, AS2035 Bearing’s precision washers are ideal for robotic arms, ensuring smooth movement in tight spaces. The needle roller design reduces friction, enhancing the overall efficiency of automated processes.
Where to Use AS2035 Bearing
AS2035 Bearing fits well in household appliances like washing machines, where its durability handles constant vibrations. The lightweight design also contributes to energy efficiency in everyday devices.
In medical devices, AS2035 Bearing’s spring steel construction offers reliability in equipment like dental drills. Its compact size and precise tolerances make it a practical choice for precision instruments.
