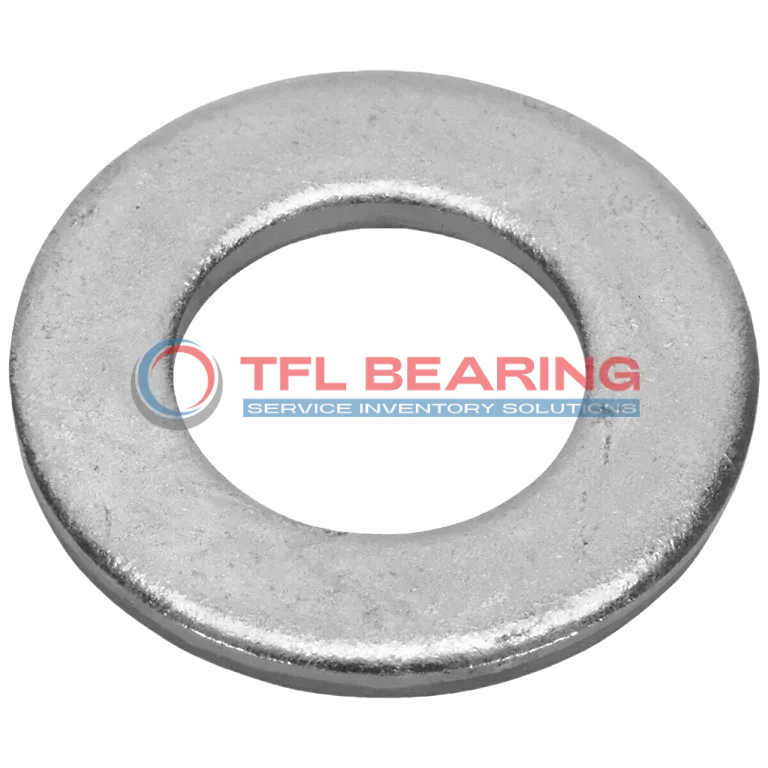

Needle Roller Thrust Bearing Washers TWB1828

Needle Roller Thrust Bearing Washers TWB1828

The TWB1828 needle roller thrust bearing washers are small yet sturdy, with a 1.125″ bore and 1.75″ outer diameter. Made from spring steel, they handle temperatures from -30°C to 110°C, making them versatile for various conditions.
These washers are designed for smooth operation, with tight tolerances ensuring precise fit and performance. Their lightweight design, at just 11g, makes them easy to handle and install.
Interchangeable with INA bearings, they offer a reliable replacement option. Ideal for applications like automotive components or small machinery where space is limited but durability is key.
Compliant with RoHS standards, they are a safe and practical choice for many industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number TWB1828
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.125"
  • Bore Dia Tolerance 0.04mm to 0.25mm
  • Outer Dia 1.75"
  • Outer Dia Tolerance -0.440mm to -0.05mm
  • Width 0.063"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 11 g
Needle Roller Thrust Bearing Washers TWB1828 Drawing.dwg
Download DWG Download PDF

Features

Why Choose TWB1828 Bearing for Precision Tasks?
TWB1828 Bearing features spring steel construction, offering excellent durability and resistance to wear.
Its precise dimensions, with a bore dia of 1.125″ and outer dia of 1.75″, ensure accurate fitment in various applications.
The needle roller design of TWB1828 Bearing provides smooth operation under thrust loads.
With a temperature range of -30° to 110°C, it performs reliably in diverse environmental conditions.
TWB1828 Bearing’s lightweight design at just 11g makes it ideal for applications where weight is a concern.
Its compatibility with INA bearings adds to its versatility and ease of replacement.

Application

Key Fields for TWB1828 Bearing
TWB1828 Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The spring steel construction ensures durability even in demanding operating conditions.
In automotive applications, TWB1828 Bearing fits well in transmission systems, providing smooth rotation under heavy loads. Its inch sizing makes it a convenient choice for American and British vehicle models.
For automation equipment, TWB1828 Bearing’s thin profile is ideal for robotic arms, where space-saving components are essential. The precise tolerances contribute to reliable performance in repetitive motions.
Around the home, TWB1828 Bearing can be found in power tools like drills, where its robust design withstands frequent use. The lightweight nature doesn’t compromise its ability to manage substantial forces.
