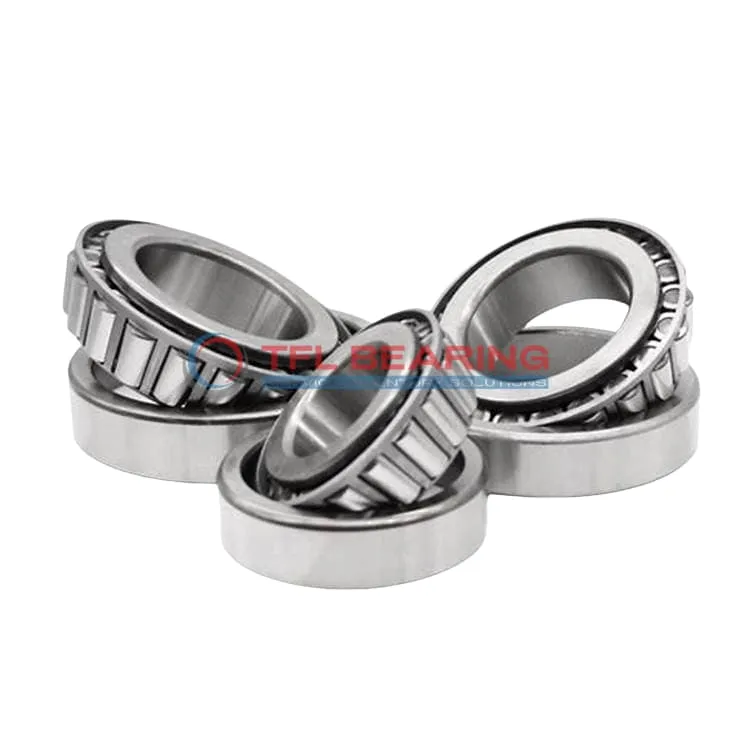

TS (Single Row Tapered Roller Bearings) (Imperial) 476-472X

TS (Single Row Tapered Roller Bearings) (Imperial) 476-472X

The 476-472X is a single-row tapered roller bearing with a 2.36″ bore and 4.88″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 32,200 lbf radially and 5,500 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 3.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 476-472X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.3622" x 4.875" x 1.1875"
  • Bore Dia 2.3622"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.142"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9687"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.72"
  • Cone Backface Backing Diameter 2.87"
  • Cup Frontface Backing Diameter 4.56"
  • Cup Backface Backing Diameter 4.29"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.16"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 476
  • Cup Part Number 472X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 475
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 32200 lbf
  • Static Radial Load 41900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 8360 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.7 lb

Features

How Is 476-472X Bearing Engineered for Reliability?

476-472X Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 32,200 lbf, making it suitable for heavy-duty applications.

The tapered roller design provides effective load distribution, reducing stress on individual components.
With a standard radial clearance, it offers reliable performance in various operating conditions.

476-472X Bearing operates within a temperature range of -30° to 110°C, maintaining stability in diverse environments.
The steel cage keeps rollers aligned, enhancing smooth operation and longevity.

Application

Industrial Uses of 476-472X Bearing
The 476-472X Bearing is a solid choice for heavy machinery, especially in construction equipment where combined loads are common. Its tapered roller design handles both radial and thrust forces efficiently.

In automotive applications, 476-472X Bearing works well in wheel hubs and differential systems, thanks to its chrome steel construction. The imperial sizing makes it a straightforward replacement for Timken equivalents.

For industrial fans and pumps, 476-472X Bearing’s open design simplifies lubrication and maintenance. The standard radial clearance ensures reliable performance in varying temperatures.

What Makes 476-472X Bearing a Preferred Choice?
476-472X Bearing is often used in agricultural machinery, where its durability withstands dusty and high-load conditions. The steel cage adds extra strength for long-term use.

In material handling systems, 476-472X Bearing supports conveyor rollers, ensuring smooth operation under continuous stress. Its ABEC-1 rating balances precision and cost-effectiveness.

For mining equipment, 476-472X Bearing’s robust design handles harsh environments. The tapered rollers distribute loads evenly, reducing wear over time.

Built for Heavy-Duty Use: 476-472X Bearing
476-472X Bearing excels in forestry equipment, where shock loads are frequent. Its chrome steel rollers resist deformation under heavy stress.

In railway applications, 476-472X Bearing provides stability for axle boxes, thanks to its precise tolerances. The open seal allows easy inspection and relubrication.

For power transmission systems, 476-472X Bearing’s combined load capacity makes it versatile. The inch measurements ensure compatibility with older machinery.

Automotive vs Industrial: Applications of 476-472X Bearing
In trucks and trailers, 476-472X Bearing handles the demanding loads of suspension systems. Its static radial load rating ensures reliability under stationary pressure.

For industrial gearboxes, 476-472X Bearing’s tapered rollers manage high-speed rotations smoothly. The steel cage prevents roller misalignment during operation.

In both sectors, 476-472X Bearing’s temperature range (-30° to 110°C) suits diverse operating conditions. The standard radial clearance adapts to thermal expansion.
