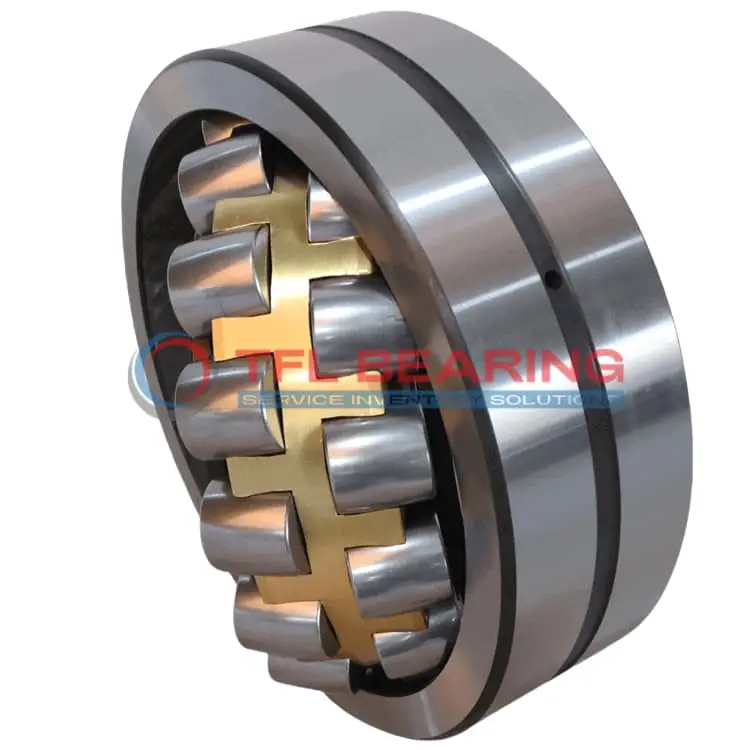

231/530 CAK/C08W507 Double Row Spherical Roller Bearing

231/530 CAK/C08W507 Double Row Spherical Roller Bearing

The 231/530 CAK/C08W507 is a double-row spherical roller bearing with a large 530mm bore and 870mm outer diameter, built from tough chrome steel. It handles combined loads up to 1916721 lbf and runs smoothly at speeds up to 670 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) allows for secure fitting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 640kg, it’s a robust choice for large machinery. Compliant with RoHS and REACH standards, it requires regular lubrication for optimal performance. The lubrication groove and holes (12mm diameter) make maintenance straightforward.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 231/530 CAK/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 530 x 870 x 272 mm
  • Bore Dia 530 mm
  • Bore Dia Tolerance +0.07mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 272 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 638 mm
  • Shoulder/Recess Dia Of Outer Ring 763 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1916721 lbf
  • Static Radial Load 3147325 lbf
  • Max Speed 670 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 640 kg
  • Price （US$） US$8,394.22

Features

Performance Features of 231/530 CAK/C08W507 Bearing

231/530 CAK/C08W507 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,916,721 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth operation by keeping the rollers aligned, reducing friction and wear.
With a maximum speed of 670 rpm, it balances performance and durability in demanding conditions.

231/530 CAK/C08W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reliable performance.

The open seal type allows for easy lubrication, maintaining optimal performance over time.
Weighing 640 kg, it is designed for robust applications where strength and reliability are key.

Application

Industrial Uses of 231/530 CAK/C08W507 Bearing
231/530 CAK/C08W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles combined loads effortlessly. The brass cage ensures smooth operation even under high stress.

In mining equipment, 231/530 CAK/C08W507 Bearing’s large bore and robust construction make it ideal for supporting rotating shafts in harsh environments. Its tapered bore also simplifies installation and maintenance.

For wind turbine applications, 231/530 CAK/C08W507 Bearing’s high dynamic radial load capacity ensures reliable performance in variable conditions. The chrome steel rollers provide long-lasting durability against wear.

Where Is 231/530 CAK/C08W507 Bearing Used?
You’ll often find 231/530 CAK/C08W507 Bearing in paper mills, where its spherical rollers accommodate misalignment from heavy rolls. The open design allows for easy lubrication, extending service life.

In steel plants, 231/530 CAK/C08W507 Bearing handles the extreme loads of rolling mills with ease. Its metric sizing ensures compatibility with European and Asian machinery standards.

Built for Heavy-Duty Use: 231/530 CAK/C08W507 Bearing
231/530 CAK/C08W507 Bearing excels in construction equipment like cranes, where its combined load capacity supports lifting operations. The temperature range suits both hot and cold working conditions.

For marine applications, 231/530 CAK/C08W507 Bearing’s corrosion-resistant materials and lubrication grooves ensure smooth performance in saltwater environments. Its weight distribution also reduces vibration.

Automotive vs Aerospace: Applications of 231/530 CAK/C08W507 Bearing
In large vehicles like buses, 231/530 CAK/C08W507 Bearing supports drivetrain components with its high static radial load rating. The brass cage dampens noise for quieter operation.

For aerospace ground equipment, 231/530 CAK/C08W507 Bearing’s precision tolerances ensure reliable performance in maintenance platforms. Its wide temperature range handles varying climates.
