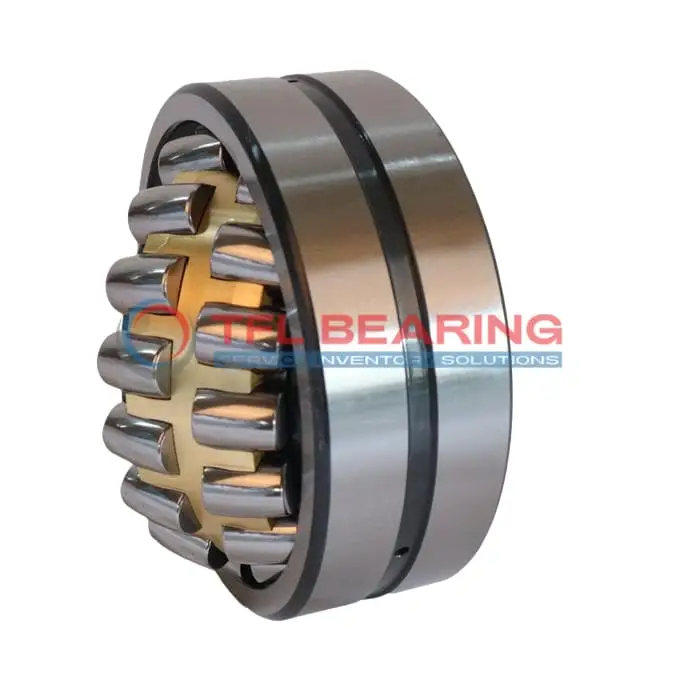

231/600 CAK/C084W33 Double Row Spherical Roller Bearing

231/600 CAK/C084W33 Double Row Spherical Roller Bearing

The 231/600 CAK/C084W33 is a double-row spherical roller bearing with a large 600mm bore and 980mm outer diameter, built from tough chrome steel. It handles combined loads up to 2413998 lbf and runs smoothly at speeds up to 560 RPM.

Its brass cage and spherical rollers ensure durability, while the tapered bore design allows for secure fitting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like mining equipment or large industrial machinery where high radial loads are common.

Weighing 900kg, it’s a robust choice for demanding tasks. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The open design requires regular lubrication, with grooves and holes for easy maintenance. Its P5 radial run-out ensures precise performance in critical setups.

Perfect for large-scale operations needing a sturdy, high-capacity bearing that can withstand intense conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 231/600 CAK/C084W33
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 980 x 300 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance +0.07mm to 0
  • Outer Dia 980 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 300 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 722 mm
  • Shoulder/Recess Dia Of Outer Ring 863 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2413998 lbf
  • Static Radial Load 4046561 lbf
  • Max Speed 560 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 900 kg
  • Price （US$） US$20,910.35

Features

Performance Features of 231/600 CAK/C084W33 Bearing

231/600 CAK/C084W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 2,413,998 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 560 rpm, it delivers reliable performance in demanding conditions.

231/600 CAK/C084W33 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its tapered bore design simplifies installation, ensuring a secure fit and efficient operation.

Application

Industrial Uses of 231/600 CAK/C084W33 Bearing
The 231/600 CAK/C084W33 Bearing is commonly used in heavy machinery like crushers and large gearboxes, where its double-row spherical design handles both radial and axial loads effectively.
Its brass cage and chrome steel construction ensure durability in high-load environments, making it a reliable choice for industrial applications.

What Makes 231/600 CAK/C084W33 Bearing a Preferred Choice?
In mining equipment, the 231/600 CAK/C084W33 Bearing excels due to its ability to withstand harsh conditions and heavy vibrations.
The tapered bore design also simplifies installation, reducing downtime during maintenance.

Built for Heavy-Duty Use: 231/600 CAK/C084W33 Bearing
This bearing is ideal for wind turbines, where its high dynamic load capacity and temperature tolerance ensure long-term performance.
The lubrication groove design further enhances its efficiency in continuous operation scenarios.

Automotive vs Aerospace: Applications of 231/600 CAK/C084W33 Bearing
While not typically used in aerospace, the 231/600 CAK/C084W33 Bearing is well-suited for large automotive applications like heavy-duty truck transmissions.
Its combined load capacity and robust construction make it a versatile option for demanding environments.
