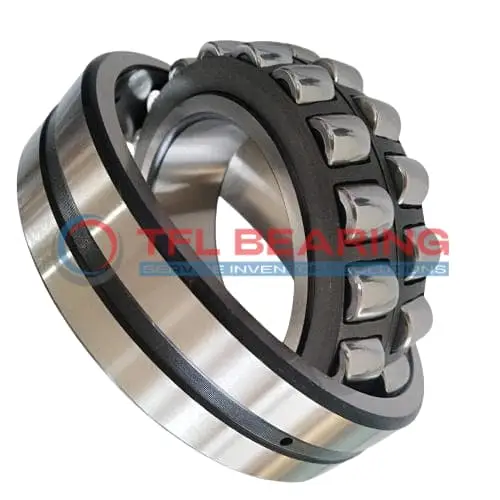

22213 CC C2 Double Row Spherical Roller Bearing

22213 CC C2 Double Row Spherical Roller Bearing

The 22213 CC C2 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 44512 lbf and operates smoothly at speeds up to 7000 RPM.

Its open design and steel cage ensure reliable performance, while the lubrication groove and holes make maintenance straightforward. The bearing works efficiently in temperatures ranging from -30°C to 200°C.

With a C2 radial clearance, it offers flexibility in various applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for heavy-duty machinery like gearboxes or industrial equipment where high radial loads are common. Weighing 1.55kg, it balances strength and manageability for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22213 CC C2
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 31 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 80.1 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg
  • Price （US$） 36.54

Features

Performance Features of 22213 CC C2 Bearing

22213 CC C2 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

With a maximum speed of 7000 rpm, 22213 CC C2 Bearing balances high performance and efficiency.
The C2 radial clearance ensures smooth operation, making it suitable for precision tasks.

22213 CC C2 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its steel cage maintains roller alignment, contributing to consistent performance over time.

Application

Industrial Uses of 22213 CC C2 Bearing
22213 CC C2 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The spherical roller type also accommodates slight misalignments, making it reliable in rugged conditions.

What Makes 22213 CC C2 Bearing a Preferred Choice?
In conveyor systems, 22213 CC C2 Bearing’s robust construction ensures smooth operation even under continuous heavy loads. Its chrome steel rollers and steel cage provide durability, reducing maintenance needs over time.

Built for Heavy-Duty Use: 22213 CC C2 Bearing
For mining equipment, 22213 CC C2 Bearing’s high dynamic radial load capacity makes it ideal for demanding environments. The C2 radial clearance ensures optimal performance under varying temperatures and loads.

Automotive vs Aerospace: Applications of 22213 CC C2 Bearing
In automotive applications, 22213 CC C2 Bearing supports drivetrain components, offering stability under combined loads. Its metric sizing and compatibility with SKF models make it a versatile choice for global manufacturers.

Essential Roles of 22213 CC C2 Bearing
In wind turbines, 22213 CC C2 Bearing’s ability to handle misalignment and high loads ensures reliable performance. The open design allows for easy lubrication, extending service life in harsh weather conditions.
