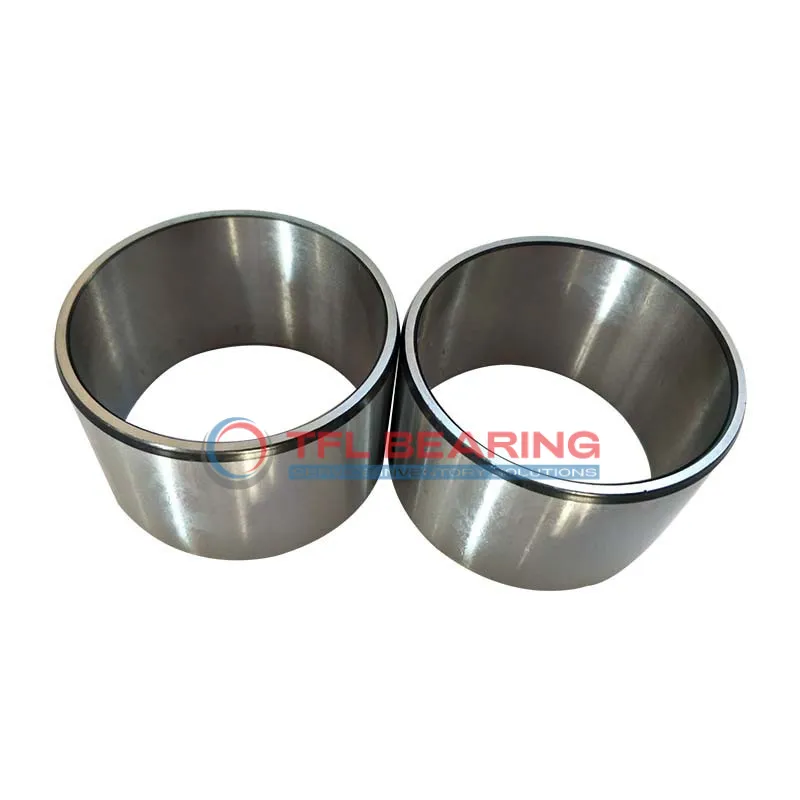

Inner Rings IR95X105X26-XL

Inner Rings IR95X105X26-XL

The IR95X105X26-XL is a needle roller bearing inner ring with a 95mm bore and 105mm outer diameter, crafted from sturdy chrome steel. Its narrow 26mm width makes it a compact yet robust component for high-load applications.
Designed for smooth operation, it comes pre-lubricated and handles radial loads efficiently. The precise tolerances ensure a reliable fit in demanding setups.
This model is interchangeable with INA bearings, offering flexibility for replacements. It’s ideal for use in gearboxes, transmissions, or industrial machinery where space is limited but performance is key.
Weighing just 313g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe choice for various engineering needs.
The 1mm minimum fillet radius helps reduce stress concentrations, enhancing longevity. A practical solution for maintenance or new builds.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR95X105X26-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.027mm to -0.014mm
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 313 g
  • Rmin 1 mm
Inner Rings IR95X105X26-XL dimension drawing
Download DWG Download PDF

Features

Why Choose IR95X105X26-XL for Precision Tasks?
IR95X105X26-XL is crafted from chrome steel, offering durability and resistance to wear in precision applications.
Its needle roller design ensures efficient load distribution, enhancing performance in compact spaces.
The bore diameter of 95 mm with tight tolerance guarantees a precise fit, reducing operational vibrations.
With a width of 26 mm, it maintains stability while accommodating high-speed requirements.
Lubrication is pre-applied, ensuring smooth operation from the first use.
RoHS compliance confirms its adherence to environmental standards, making it a reliable choice.

Application

Industrial Uses of IR95X105X26-XL Bearing
IR95X105X26-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its needle roller design handles high radial loads efficiently. The chrome steel material ensures durability even in demanding environments.
What Makes IR95X105X26-XL Bearing a Preferred Choice?
In automotive applications, IR95X105X26-XL Bearing fits well in gearboxes and transmission systems, providing smooth operation under high stress. Its metric dimensions make it easy to integrate into various vehicle designs.
Perfect Fit for Automation: IR95X105X26-XL Bearing
For automated systems, IR95X105X26-XL Bearing offers reliable performance in robotic arms and conveyor belts. The lubricated design reduces friction, ensuring long-lasting operation with minimal maintenance.
Medical vs Industrial: Where IR95X105X26-XL Bearing Excels
While IR95X105X26-XL Bearing is robust enough for industrial presses, its precision also suits medical devices like diagnostic equipment. The consistent performance makes it versatile across different sectors.
