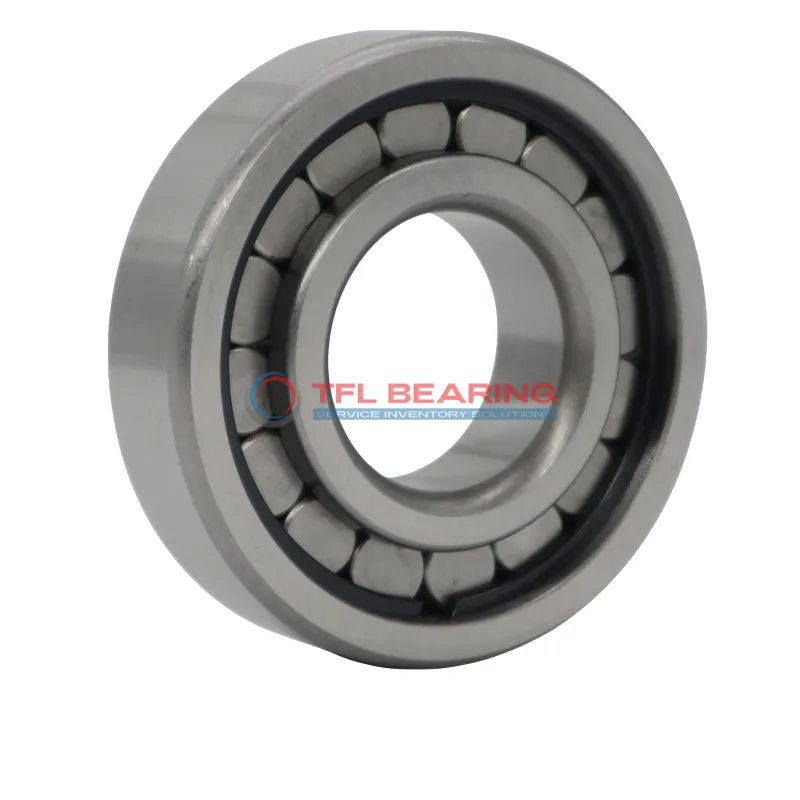

Single Row Full Complement Cylindrical Roller Bearings NCF 18/710 V

Single Row Full Complement Cylindrical Roller Bearings NCF 18/710 V

The NCF 18/710 V is a single-row full complement cylindrical roller bearing with a large 710mm bore and 870mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 346500 lbf and works well in temperatures from -30°C to 110°C.

Its full complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The inner ring provides stability, and the 74mm width ensures a compact fit for its size.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where high radial loads are common.

Weighing 92.5kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 18/710 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 710 mm
  • Bore Dia Tolerance -0.075mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.10mm to 0
  • Width 74 mm
  • Width Tolerance -0.75mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 767 mm
  • Shoulder Dia Outer Ring 815 mm
  • Raceway Diameter Outer Ring 831 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 8 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 346500 lbf
  • Static Radial Load 843750 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 92.5 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 18/710 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 18/710 V Bearing

NCF 18/710 V Bearing is built with a full complement of chrome steel rollers, enhancing its load-carrying capacity without a cage.

Its dynamic radial load capacity reaches 346,500 lbf, making it suitable for heavy-duty industrial applications.

The chrome steel construction ensures durability and resistance to wear, even under combined load conditions.

With a permissible axial displacement of 8 mm, it offers flexibility in various mounting situations.

Application

Industrial Uses of NCF 18/710 V Bearing
NCF 18/710 V Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, which is essential in demanding environments.

Where Is NCF 18/710 V Bearing Used?
In wind turbine systems, NCF 18/710 V Bearing supports the main shaft, providing stability under combined loads. Its chrome steel construction ensures durability in harsh weather conditions, making it a reliable choice for renewable energy applications.

Built for Heavy-Duty Use: NCF 18/710 V Bearing
NCF 18/710 V Bearing excels in mining equipment, where its robust design withstands extreme loads and vibrations. The absence of a cage allows for maximum roller count, enhancing load capacity in critical operations.

Automotive vs Aerospace: Applications of NCF 18/710 V Bearing
While NCF 18/710 V Bearing is too large for most automotive uses, it finds its place in aerospace ground support equipment, such as aircraft tow tractors. Its high static radial load capacity ensures safety and reliability in these specialised applications.

Key Fields for NCF 18/710 V Bearing
NCF 18/710 V Bearing is ideal for steel production lines, particularly in rolling stands where precision and strength are paramount. The metric dimensions make it compatible with a wide range of European industrial machinery.
