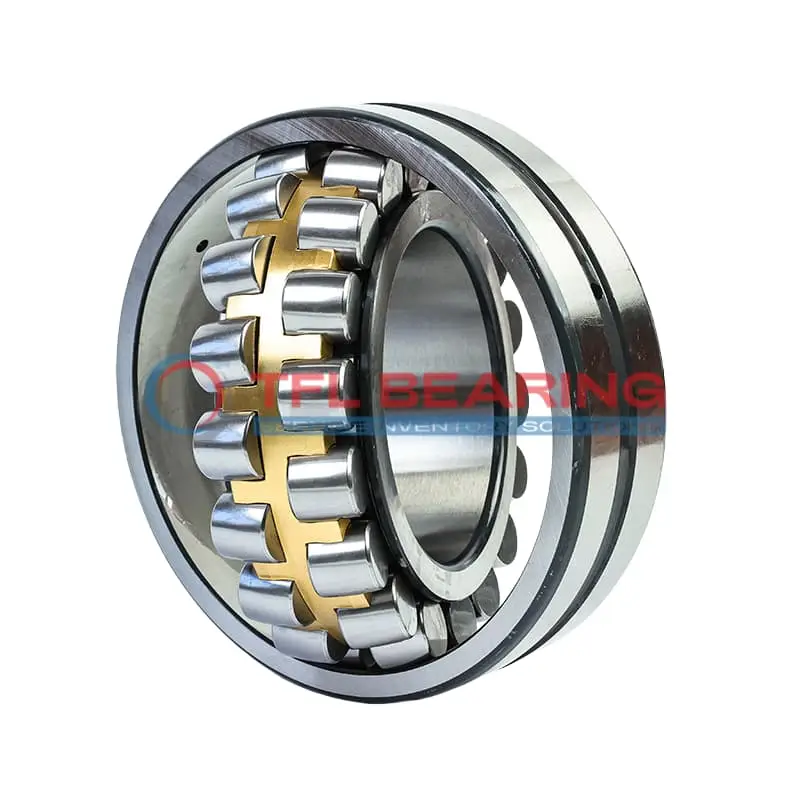

23172 CACK/C083W507 Double Row Spherical Roller Bearing

23172 CACK/C083W507 Double Row Spherical Roller Bearing

The 23172 CACK/C083W507 is a double-row spherical roller bearing with a 360mm bore and 600mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 1015012 lbf and operates smoothly at speeds up to 1000 RPM.

Its brass cage ensures durability, while the tapered bore design allows for secure fitting. The open seal type facilitates easy lubrication, with grooves and holes designed for efficient maintenance.

This bearing is suitable for heavy-duty applications like industrial machinery or large gearboxes, where high radial loads are common. It performs reliably in temperatures ranging from -30°C to 200°C.

Weighing 230kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, especially as it’s interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23172 CACK/C083W507
  • Brand TFL
  • Interchangeable SKF
  • Size 360 x 600 x 192 mm
  • Bore Dia 360 mm
  • Bore Dia Tolerance +0.057mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 192 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 418 mm
  • Shoulder/Recess Dia Of Outer Ring 524 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1015012 lbf
  • Static Radial Load 1562422 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 230 kg
  • Price （US$） US$5,566.14

Features

Performance Features of 23172 CACK/C083W507 Bearing

23172 CACK/C083W507 Bearing is built with chrome steel rings and rollers, offering excellent resistance to heavy radial loads.
Its dynamic radial load capacity reaches 1,015,012 lbf, making it suitable for demanding industrial applications.

The brass cage ensures smooth roller movement, reducing friction and extending operational life.
With a maximum speed of 1,000 rpm, it balances performance and durability in high-load scenarios.

23172 CACK/C083W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit in various machinery setups.

The open seal type allows for easy lubrication, maintaining optimal performance over time.
Its C3 radial clearance provides flexibility in applications with varying thermal expansions.

Weighing 230 kg, 23172 CACK/C083W507 Bearing is robust yet designed for reliable long-term use.
Its spherical roller design accommodates misalignment, ensuring smooth operation under combined loads.

Application

Industrial Uses of 23172 CACK/C083W507 Bearing
23172 CACK/C083W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbine applications, 23172 CACK/C083W507 Bearing supports the main shaft, thanks to its high dynamic load capacity and resistance to misalignment. The tapered bore design simplifies installation and maintenance.

For mining equipment, 23172 CACK/C083W507 Bearing’s robust construction and C3 radial clearance make it ideal for harsh environments with heavy loads and vibrations. The chrome steel rollers enhance durability in abrasive conditions.

Where Is 23172 CACK/C083W507 Bearing Used?
You’ll find 23172 CACK/C083W507 Bearing in paper mills, where it supports large rollers under constant load and speed variations. Its spherical roller design compensates for shaft misalignment, reducing wear.

In steel plants, 23172 CACK/C083W507 Bearing is essential for conveyor systems and rolling mills, handling extreme temperatures and heavy loads. The open seal design allows for easy lubrication, extending service life.

Built for Heavy-Duty Use: 23172 CACK/C083W507 Bearing
23172 CACK/C083W507 Bearing excels in construction equipment like cranes and excavators, where its high static load capacity ensures reliability. The metric sizing fits standard machinery designs globally.

For marine applications, 23172 CACK/C083W507 Bearing’s corrosion-resistant materials and wide temperature range make it suitable for ship propulsion systems. The lubrication groove design ensures consistent performance in wet conditions.
