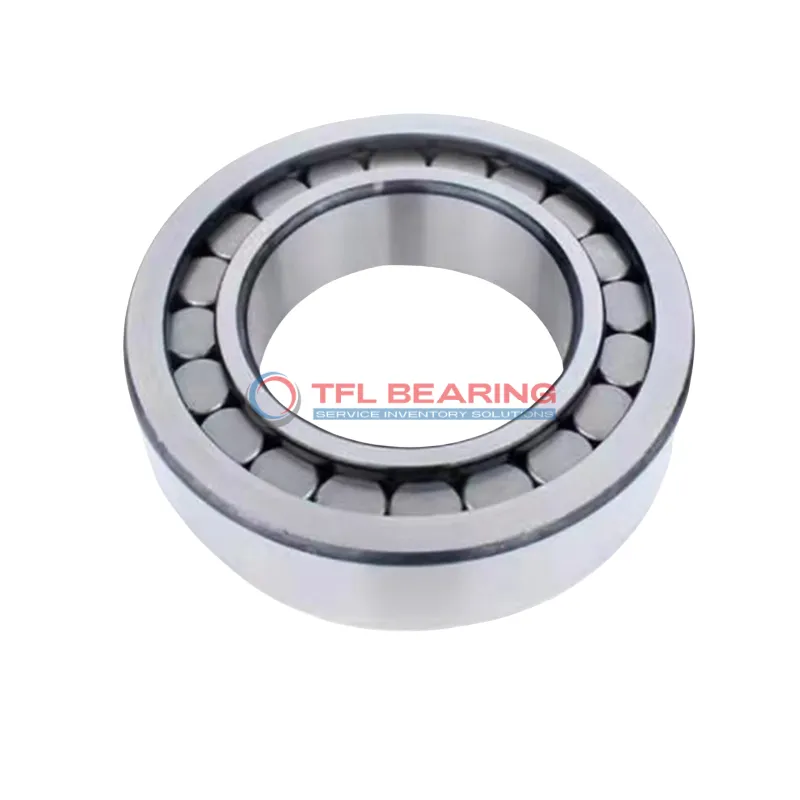

Single Row Full Complement Cylindrical Roller Bearings NCF 29/630 V

Single Row Full Complement Cylindrical Roller Bearings NCF 29/630 V

The NCF 29/630 V is a single row full complement cylindrical roller bearing with a large 630mm bore and 850mm outer diameter, built from tough chrome steel. It handles heavy combined loads, supporting up to 841,500 lbf radially, and works well in temperatures from -30°C to 110°C.

Its full complement design means no cage is needed, allowing more rollers for higher load capacity. The open seal type makes lubrication easy, whether using grease or oil.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 205kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 29/630 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 630 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 850 mm
  • Outer Dia Tolerance -0.10mm to 0
  • Width 128 mm
  • Width Tolerance -0.50mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 709 mm
  • Shoulder Dia Outer Ring 788 mm
  • Raceway Diameter Outer Ring 807 mm
  • Chamfer Dimension r1,2(min.) 6 mm
  • Permissible Axial Displacement(max.) 8 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 841500 lbf
  • Static Radial Load 1946250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 205 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 29/630 V dimension drawing
Download DWG Download PDF

Features

Core Advantages of NCF 29/630 V Bearing

NCF 29/630 V Bearing features a full complement of cylindrical rollers, offering high load capacity without a cage.
This design enhances its dynamic radial load capacity up to 841,500 lbf, making it suitable for heavy-duty applications.

The chrome steel construction ensures durability and resistance to wear, even under combined load conditions.
Its wide temperature range of -30° to 110°C allows reliable operation in various environments.

NCF 29/630 V Bearing’s open design simplifies lubrication with grease or oil, reducing maintenance needs.
The precise tolerances on bore and outer diameters ensure a secure fit and smooth performance.

Application

Industrial Uses of NCF 29/630 V Bearing
NCF 29/630 V Bearing is commonly used in heavy industrial machinery like rolling mills and large gearboxes, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is NCF 29/630 V Bearing Used?
In wind turbine systems, NCF 29/630 V Bearing supports the main shaft, providing stability under combined loads. Its chrome steel construction ensures durability even in harsh outdoor environments.

Built for Heavy-Duty Use: NCF 29/630 V Bearing
NCF 29/630 V Bearing excels in mining equipment, such as crushers and conveyors, where its robust design withstands extreme loads. The metric sizing makes it a versatile choice for global machinery standards.

Automotive vs Aerospace: Applications of NCF 29/630 V Bearing
In large commercial vehicles, NCF 29/630 V Bearing is used in drivetrain components, offering reliable performance under heavy loads. While not typical for aerospace, its precision suits specialised ground support equipment.

Key Fields for NCF 29/630 V Bearing
NCF 29/630 V Bearing is ideal for steel production lines, where its high static radial load capacity supports rolling processes. The grease or oil lubrication options adapt to various operational needs.
