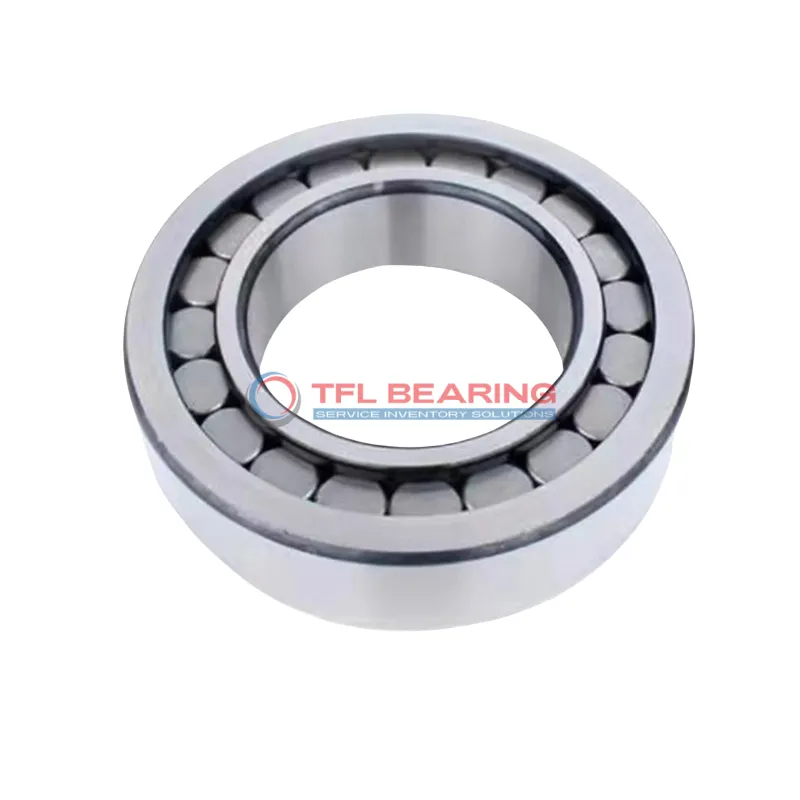

Single Row Full Complement Cylindrical Roller Bearings NCF 18/630 V

Single Row Full Complement Cylindrical Roller Bearings NCF 18/630 V

The NCF 18/630 V is a single-row cylindrical roller bearing with a large 630mm bore and 780mm outer diameter, built for heavy-duty applications. Made from chrome steel, it handles combined loads up to 281,250 lbf radially and allows some axial movement.

Its full complement design means it has no cage, maximising roller count for higher load capacity. The open seal type simplifies lubrication with grease or oil, and it operates in temperatures from -30°C to 110°C.

This bearing suits industrial machinery like large gearboxes or presses where high radial loads are common. Weighing 72.5kg, it’s built to last while meeting RoHS and REACH standards. Interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 18/630 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 630 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 780 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 69 mm
  • Width Tolerance -0.50mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 681 mm
  • Shoulder Dia Outer Ring 725 mm
  • Raceway Diameter Outer Ring 739 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 8 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 281250 lbf
  • Static Radial Load 652500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 72.5 kg

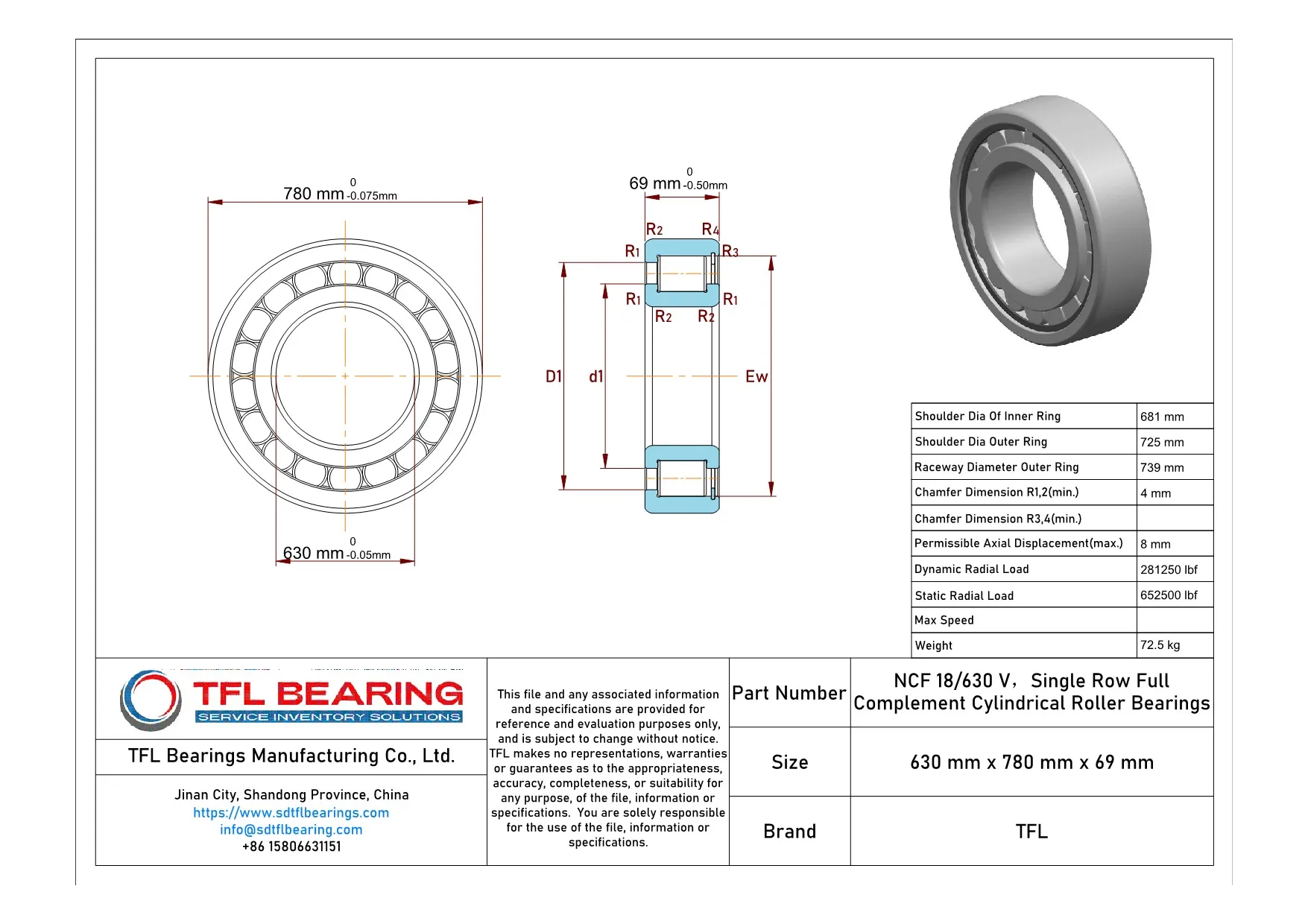

Single Row Full Complement Cylindrical Roller Bearings NCF 18/630 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 18/630 V Bearing

NCF 18/630 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 281250 lbf, making it suitable for heavy-duty applications.

The full complement design eliminates the need for a cage, allowing more rollers and higher load capacity.
This construction ensures smoother operation and longer service life under demanding conditions.

NCF 18/630 V Bearing operates effectively in temperatures ranging from -30° to 110 °C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance requirements.

With a permissible axial displacement of 8 mm, it accommodates slight misalignments during operation.
The precise tolerances on bore and outer diameters ensure a secure fit in various applications.

Application

Industrial Uses of NCF 18/630 V Bearing
NCF 18/630 V Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes NCF 18/630 V Bearing a Preferred Choice?
In wind turbine applications, NCF 18/630 V Bearing’s chrome steel construction ensures durability against variable loads and harsh weather. Its metric sizing makes it a reliable fit for international equipment standards.

Built for Heavy-Duty Use: NCF 18/630 V Bearing
NCF 18/630 V Bearing excels in mining equipment, supporting massive loads in crushers and conveyors. The absence of a cage maximises roller count, enhancing load capacity for continuous operation.

Automotive vs Aerospace: Applications of NCF 18/630 V Bearing
In large commercial vehicles, NCF 18/630 V Bearing handles combined loads in drivetrains, while its precision suits aerospace ground support equipment. The wide temperature range ensures performance in diverse environments.

Where Is NCF 18/630 V Bearing Used?
NCF 18/630 V Bearing is ideal for industrial pumps, where its grease or oil lubrication options adapt to different operational needs. The robust design minimises downtime in high-pressure systems.
