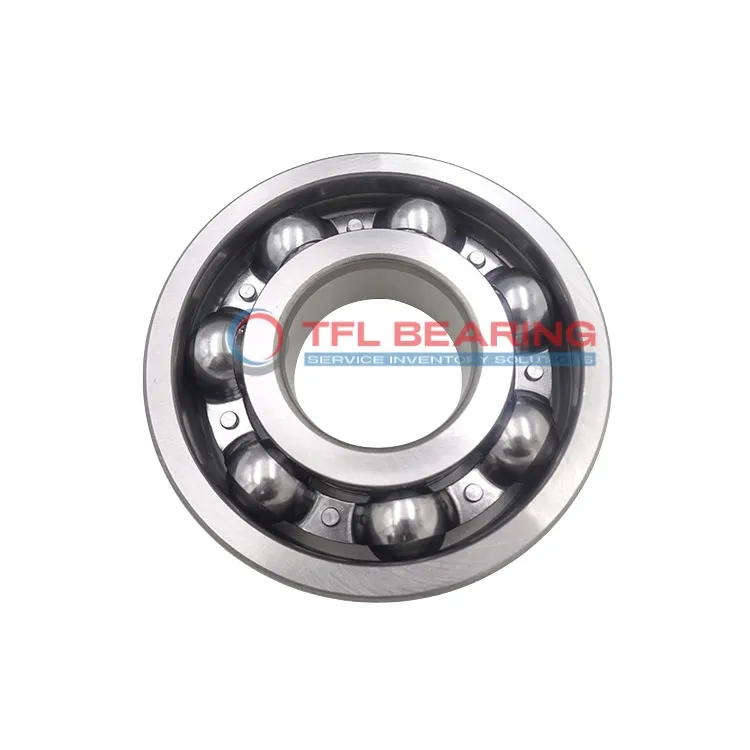

Single Row Deep Groove Ball Bearings With Filling Slots 213/C3

Single Row Deep Groove Ball Bearings With Filling Slots 213/C3

The 213/C3 is a single-row deep groove ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13601 lbf and operates smoothly at speeds up to 6000 RPM.

Its open design with filling slots allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.05kg, it offers a robust build for its size. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 213/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.15mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Grade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 13601 lbf
  • Static Radial Load 13151 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 1.05 kg
  • Price（$） 27.04
Single Row Deep Groove Ball Bearings With Filling Slots 213/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 213/C3 Bearing

213/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13601 lbf, making it suitable for demanding applications.

The filling slot design allows for easier lubrication, ensuring smooth operation over time.
With a maximum speed of 6,000 rpm, it balances performance and durability.

213/C3 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance provides flexibility in various operating conditions.

Application

Industrial Uses of 213/C3 Bearing
213/C3 Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its filling slots allow for higher radial load capacity. The chrome steel construction ensures durability in demanding environments.

What Makes 213/C3 Bearing a Preferred Choice?
In automotive applications, 213/C3 Bearing fits well in wheel hubs and transmissions, thanks to its C3 clearance for thermal expansion. The open design simplifies lubrication, extending service life.

Built for Heavy-Duty Use: 213/C3 Bearing
For automation systems, 213/C3 Bearing handles high-speed rotations in robotic arms and conveyor belts. Its metric sizing makes it easy to integrate into European and Asian equipment.

Medical vs Industrial: Where 213/C3 Bearing Excels
While 213/C3 Bearing isn’t typically used in medical devices, it shines in industrial settings like compressors. The ABEC 1 tolerance balances cost and performance for general machinery.

Perfect Fit for Automation: 213/C3 Bearing
In consumer appliances like washing machines, 213/C3 Bearing offers quiet operation and reliability. The chrome steel cage reduces friction, making it ideal for long-term use.
