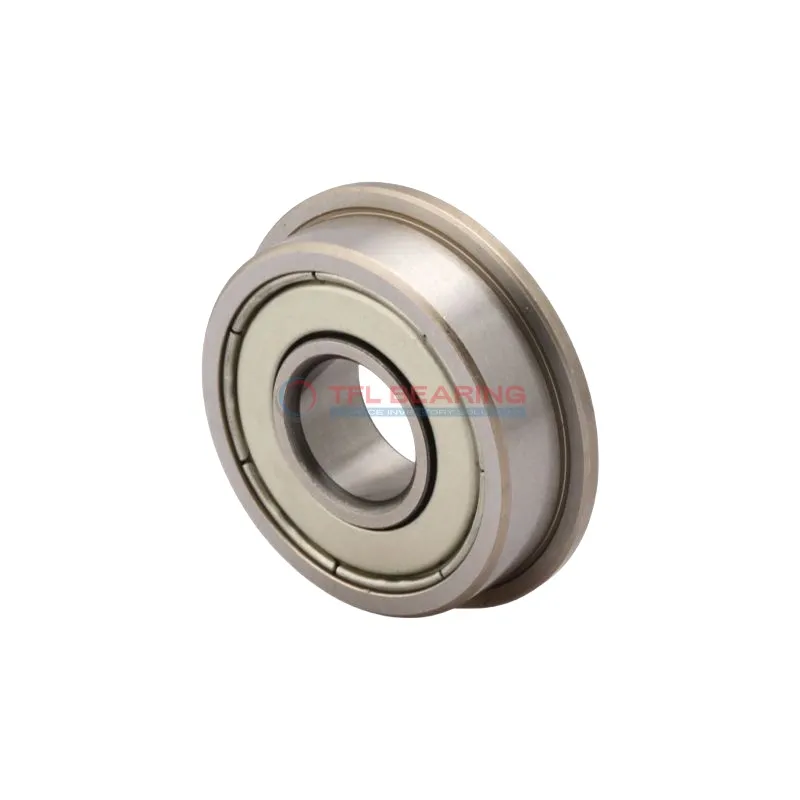

Metric Size Miniature Flanged Ball Bearings F697zz

Metric Size Miniature Flanged Ball Bearings F697zz

The F697zz is a compact radial ball bearing with a 7mm bore and 17mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 307 lbf and reaches speeds of 36000 RPM, making it suitable for fast-moving applications.

Its shielded design helps keep dirt out while retaining lubrication, and the stainless steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With a lightweight design at just 5.54g, it’s easy to handle and install. Ideal for small machinery, electric motors, or hobbyist projects where reliable performance is needed.

Compliant with RoHS and REACH standards, this bearing offers a practical solution for everyday industrial and DIY uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F697zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.2 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 9
  • Ball Dia 2.3810 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 307 lbf
  • Static Radial Load 129 lbf
  • Max Speed 36000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.54 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F697zz dimension drawing
Download DWG Download PDF

Features

How Does F697zz Bearing Reduce Friction?

F697zz Bearing features a shielded design with stainless steel shields, protecting against contaminants while reducing friction.
Its chrome steel construction ensures smooth operation, even at high speeds up to 36,000 rpm.
The stainless steel cage maintains ball alignment, minimising wear and extending the bearing’s life.
With a dynamic radial load capacity of 307 lbf, it offers reliable performance in various applications.

Application

Common Applications of F697zz Bearing
F697zz Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and shielded design. The stainless steel cage ensures smooth rotation even at high speeds.

In automation systems, F697zz Bearing fits well in robotic arms and small conveyors, where precision and reliability are key. Its ABEC1 tolerance makes it suitable for consistent performance in repetitive tasks.

For consumer electronics like printers or small appliances, F697zz Bearing offers quiet operation and durability. The chrome steel construction provides long service life even with frequent use.

Medical devices such as dental handpieces benefit from F697zz Bearing’s high-speed capability and low friction. The shielded design helps keep contaminants out, ensuring hygiene in sensitive environments.
