Single Row Deep Groove Ball Bearings 6008-RSJEM

Single Row Deep Groove Ball Bearings 6008-RSJEM

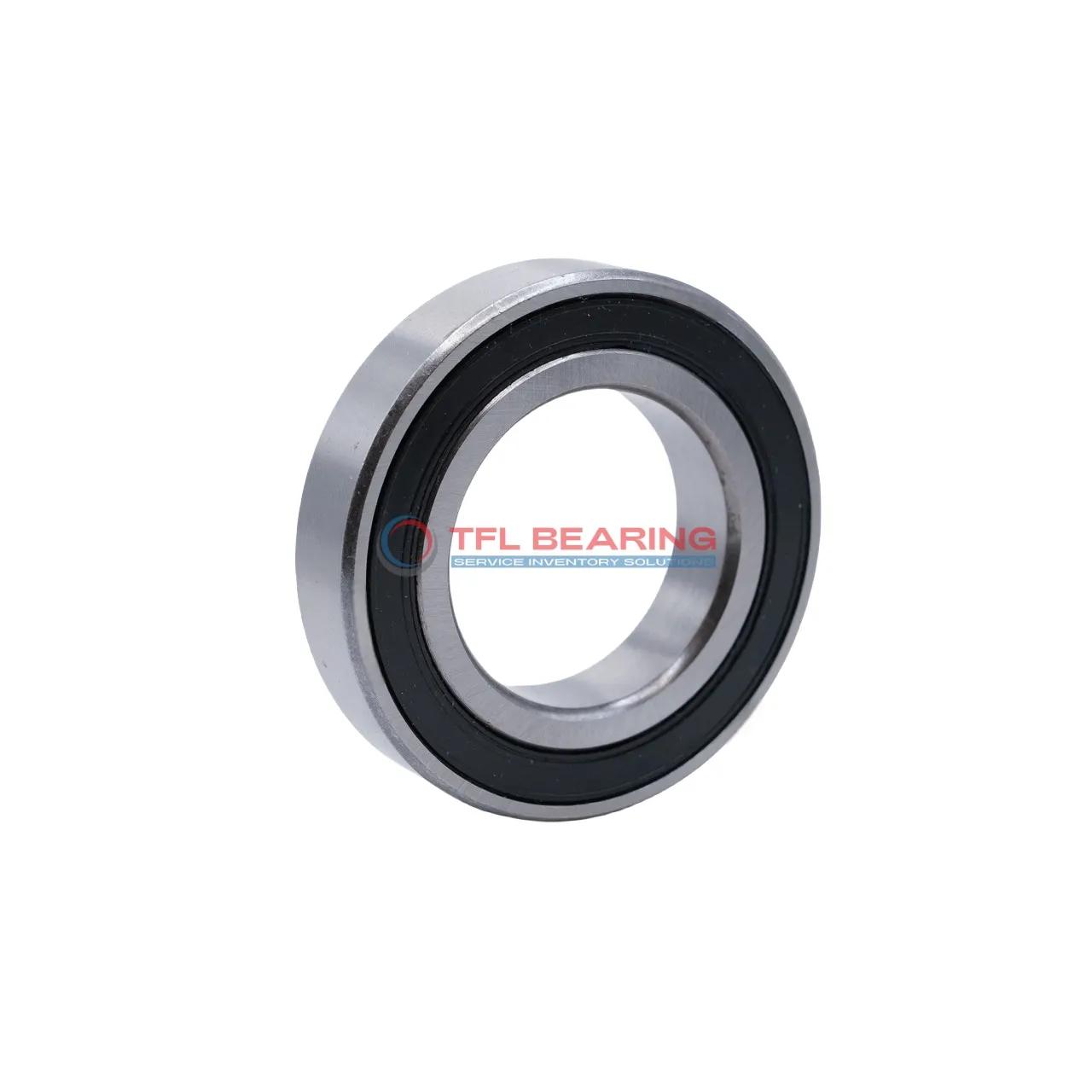

The 6008-RSJEM is a single-row deep groove ball bearing with a 40mm bore and 68mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3754 lbf and operates smoothly at speeds up to 10,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for busy environments. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. It’s well-suited for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 192g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6008-RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3754 lbf
  • Static Radial Load 2585 lbf
  • Max Speed 10000 rpm
  • Weight 192 g
  • price（$） 8.865
Single Row Deep Groove Ball Bearings 6008-RSJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6008-RSJEM Bearing

6008-RSJEM Bearing is designed for radial loads, with a dynamic radial load capacity of 3754 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the chrome steel cage maintains alignment.
With a maximum speed of 10,000 rpm, it offers reliable performance for high-speed applications.

6008-RSJEM Bearing operates in temperatures from -30°C to 120°C, suitable for diverse conditions.
Its ABEC 1 tolerance ensures consistent performance, making it a practical choice for many uses.

Application

Industrial Uses of 6008-RSJEM Bearing
6008-RSJEM Bearing is commonly used in conveyor systems, where its sealed design helps keep out dust and debris. The chrome steel construction ensures it can handle continuous radial loads without wearing out quickly.

What Makes 6008-RSJEM Bearing a Preferred Choice?
In automotive applications like electric motors, 6008-RSJEM Bearing provides smooth rotation and long service life. Its ABEC 1 tolerance makes it reliable for standard performance needs.

Perfect Fit for Automation: 6008-RSJEM Bearing
This bearing works well in robotic arms, offering consistent performance even with frequent movement. The sealed design also reduces maintenance needs in dusty environments.

Medical vs Industrial: Where 6008-RSJEM Bearing Excels
While not typically used in medical devices, 6008-RSJEM Bearing shines in industrial pumps and compressors. Its durability and ease of installation make it a go-to for many engineers.
