Single Row Deep Groove Ball Bearings R16ZZST

Single Row Deep Groove Ball Bearings R16ZZST

The R16ZZST is a single-row deep groove ball bearing with a 1″ bore and 2″ outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2652 lbf and spins smoothly at speeds up to 14,500 RPM.

Shielded on both sides, it keeps dirt out while maintaining smooth operation. The chrome steel cage adds durability, making it a reliable choice for various applications.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for use in electric motors, pumps, or small machinery where radial loads are common.

Compliant with RoHS and REACH standards, it’s a safe and practical option for everyday industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number R16ZZST
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 1"
  • Bore Dia Tolerance -0.00039" to 0
  • Outer Dia 2"
  • Outer Dia Tolerance -0.00051" to 0
  • Width 0.5"
  • Width Tolerance -0.00472" to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2652 lbf
  • Static Radial Load 1307 lbf
  • Max Speed 14500 rpm
  • price（$） 25.11

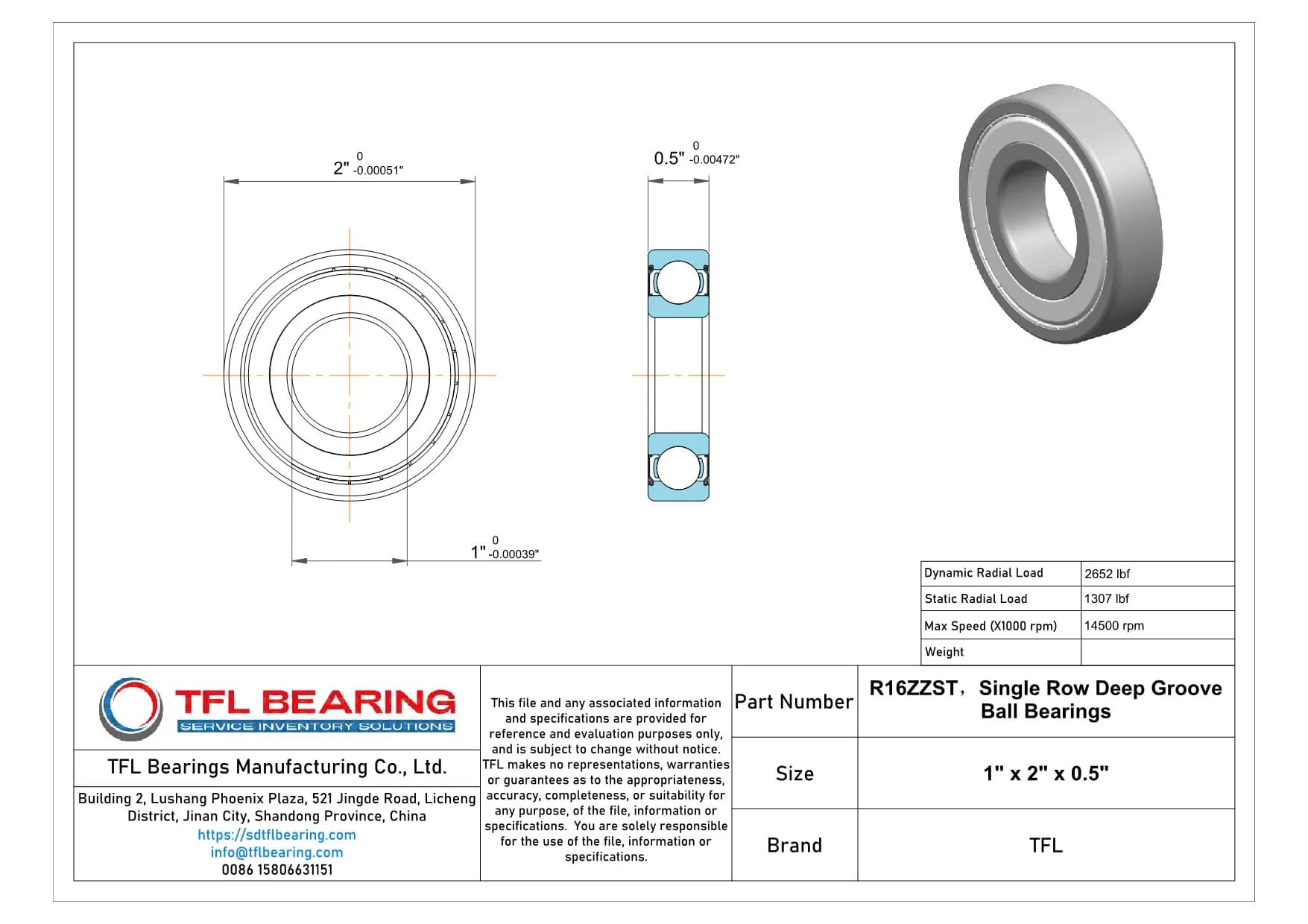

Single Row Deep Groove Ball Bearings R16ZZST dimension drawing
Download DWG Download PDF

Features

Performance Features of R16ZZST Bearing

R16ZZST Bearing is built with chrome steel rings and balls, offering strong radial load support.

Its dynamic radial load capacity reaches 2652 lbf, making it suitable for various applications.

The shielded design helps keep contaminants out, ensuring smoother operation.

With a maximum speed of 14,500 rpm, it delivers reliable performance in demanding conditions.

Application

Common Applications of R16ZZST Bearing
R16ZZST Bearing is widely used in industrial equipment like conveyor systems and small machinery, where its shielded design helps keep out dust and debris. The inch sizing makes it a convenient fit for many North American machines.

In automotive applications, R16ZZST Bearing works well in components like alternators and small electric motors, thanks to its reliable radial load capacity. Its chrome steel construction ensures durability even in demanding conditions.

For home appliances, R16ZZST Bearing is often found in fans and small power tools, where smooth operation is key. The ABEC 1 tolerance provides a good balance of performance and affordability for everyday use.

Automation systems benefit from R16ZZST Bearing in robotic arms and small actuators, where its compact size and shielded design are advantageous. The temperature range also makes it suitable for varied operating environments.
