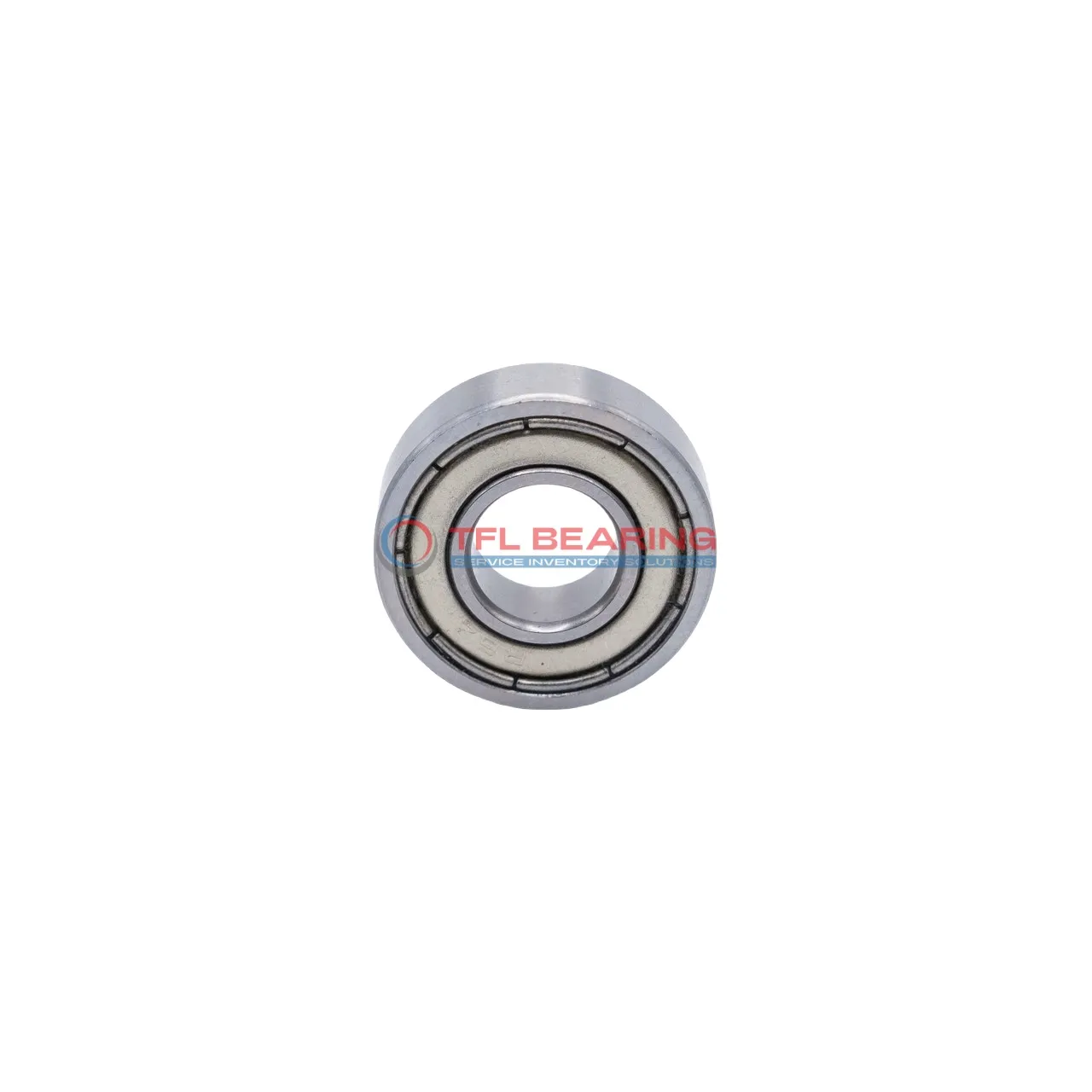

Stainless Steel Deep Groove Ball Bearings W 605-2Z

Stainless Steel Deep Groove Ball Bearings W 605-2Z

The W 605-2Z is a compact stainless steel deep groove ball bearing, measuring 5mm by 14mm by 5mm. It handles radial loads up to 171 lbf and spins smoothly at speeds up to 53,000 RPM.

Its shielded design keeps dirt out while retaining grease, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability.

This bearing works well in temperatures from -30°C to 120°C and comes pre-lubricated with grease. It’s interchangeable with SKF models for easy replacement.

Ideal for small machinery, medical devices, or food processing equipment where hygiene and reliability matter. Weighing just 3.4 grams, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 605-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 171 lbf
  • Static Radial Load 58 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 53000 rpm
  • Weight 0.0034 kg
  • Price（$） 2.33
Stainless Steel Deep Groove Ball Bearings W 605-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 605-2Z Bearing for Precision Tasks?

W 605-2Z Bearing features stainless steel construction, offering excellent corrosion resistance and durability.
Its shielded design protects against contaminants while maintaining smooth operation.
With a dynamic radial load capacity of 171 lbf, it handles precise radial movements efficiently.
The grease lubrication ensures long-term performance, even at high speeds up to 53,000 rpm.

Application

Industrial Uses of W 605-2Z Bearing
W 605-2Z Bearing is commonly used in small industrial equipment like electric motors and pumps, where its stainless steel construction offers good corrosion resistance. The shielded design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.

What Makes W 605-2Z Bearing a Preferred Choice?
In automotive applications, W 605-2Z Bearing fits well in components like window regulators and small gearboxes due to its compact size. The grease lubrication ensures smooth operation even in tight spaces.

Perfect Fit for Automation: W 605-2Z Bearing
For robotics and automation, W 605-2Z Bearing works reliably in joints and small actuators. Its lightweight design and high-speed capability make it suitable for precise movements.

Medical vs Industrial: Where W 605-2Z Bearing Excels
In medical devices, W 605-2Z Bearing is often found in dental tools and lab equipment, thanks to its hygienic stainless steel material. Industrial uses include food processing machinery where cleanliness matters.

Essential Roles of W 605-2Z Bearing
Around the home, W 605-2Z Bearing can be spotted in appliances like blenders and small fans. Its durability and quiet operation make it a practical choice for everyday devices.
