Flanged Deep Groove Ball Bearings W 605 R-2RS1

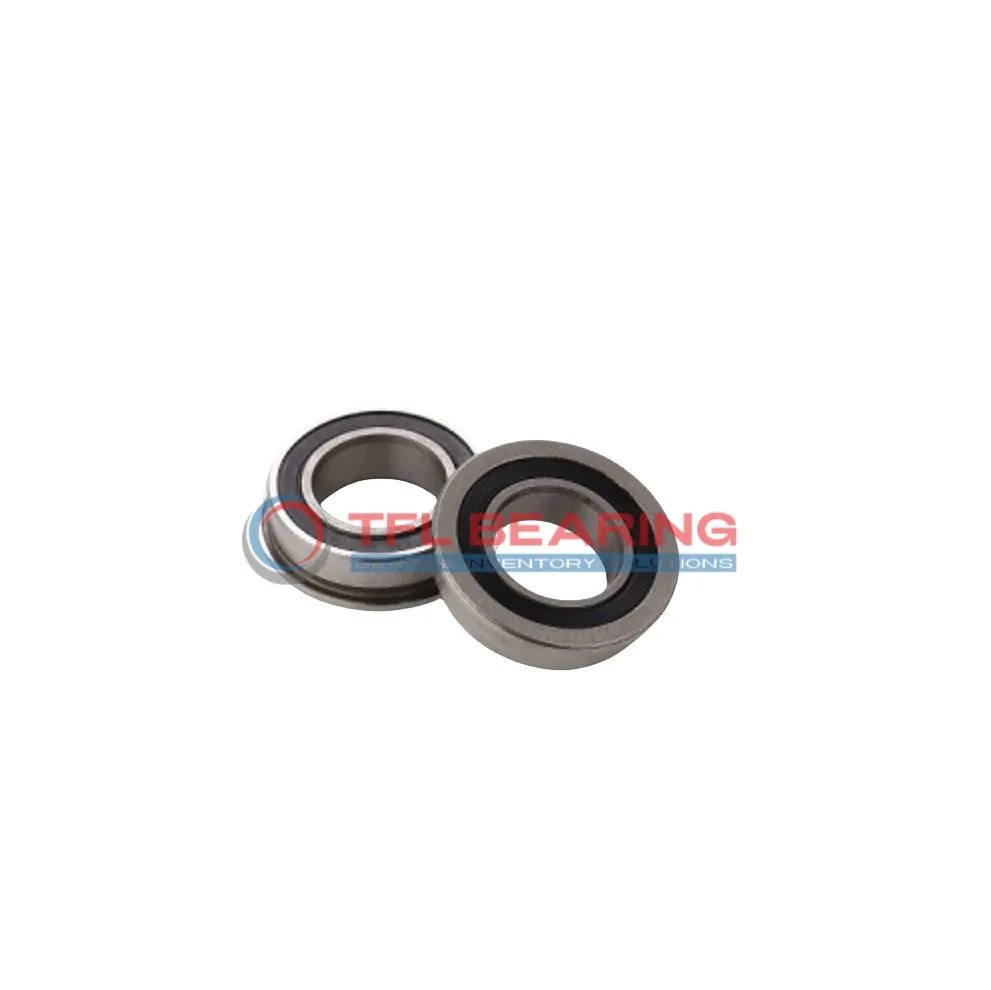

Flanged Deep Groove Ball Bearings W 605 R-2RS1

The W 605 R-2RS1 is a compact flanged deep groove ball bearing, measuring 5mm by 16mm by 5mm, with a stainless steel construction for durability. It handles radial loads up to 171 lbf and can spin at speeds up to 30,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The flange adds stability, helping it stay securely in place during operation.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for small machinery or appliances where space is limited but performance is key. Weighing just 0.0038kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 605 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 16 mm
  • Flange Thickness 1 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 171 lbf
  • Static Radial Load 58 lbf
  • Max Speed 30000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0038 kg
  • Price（$） 1.7
Flanged Deep Groove Ball Bearings W 605 R-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 605 R-2RS1 Bearing Reduce Friction?

W 605 R-2RS1 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design retains lubrication, reducing wear and maintenance needs.
The single-row construction and precision tolerance class P0 enhance performance in radial load applications.
With a maximum speed of 30,000 rpm, it delivers reliable efficiency for various uses.

Application

Common Applications of W 605 R-2RS1 Bearing
W 605 R-2RS1 Bearing is widely used in small electric motors, such as those found in household appliances like blenders and fans. Its compact size and sealed design make it ideal for protecting against dust and moisture.

In automation systems, W 605 R-2RS1 Bearing ensures smooth operation in components like conveyor rollers and robotic arms. The stainless steel construction offers good resistance to corrosion, even in humid environments.

For medical devices, W 605 R-2RS1 Bearing provides reliable performance in equipment like dental tools and lab instruments. The grease lubrication helps maintain quiet operation, which is essential in sensitive settings.

Where Is W 605 R-2RS1 Bearing Used?
You’ll often find W 605 R-2RS1 Bearing in office equipment, such as printers and scanners, where its small size and durability are key. The flange design also helps with easy installation and alignment.

In hobbyist projects, W 605 R-2RS1 Bearing is popular for DIY drones and model cars due to its lightweight and smooth rotation. The sealed feature keeps out debris, extending its lifespan even with frequent use.

Built for Versatility: W 605 R-2RS1 Bearing
W 605 R-2RS1 Bearing works well in food processing equipment, thanks to its stainless steel materials that resist rust and contamination. The high-speed capability ensures efficient performance in production lines.

For automotive accessories, W 605 R-2RS1 Bearing fits well in dashboard mechanisms and window regulators. Its reliability and quiet operation make it a practical choice for everyday vehicle use.
