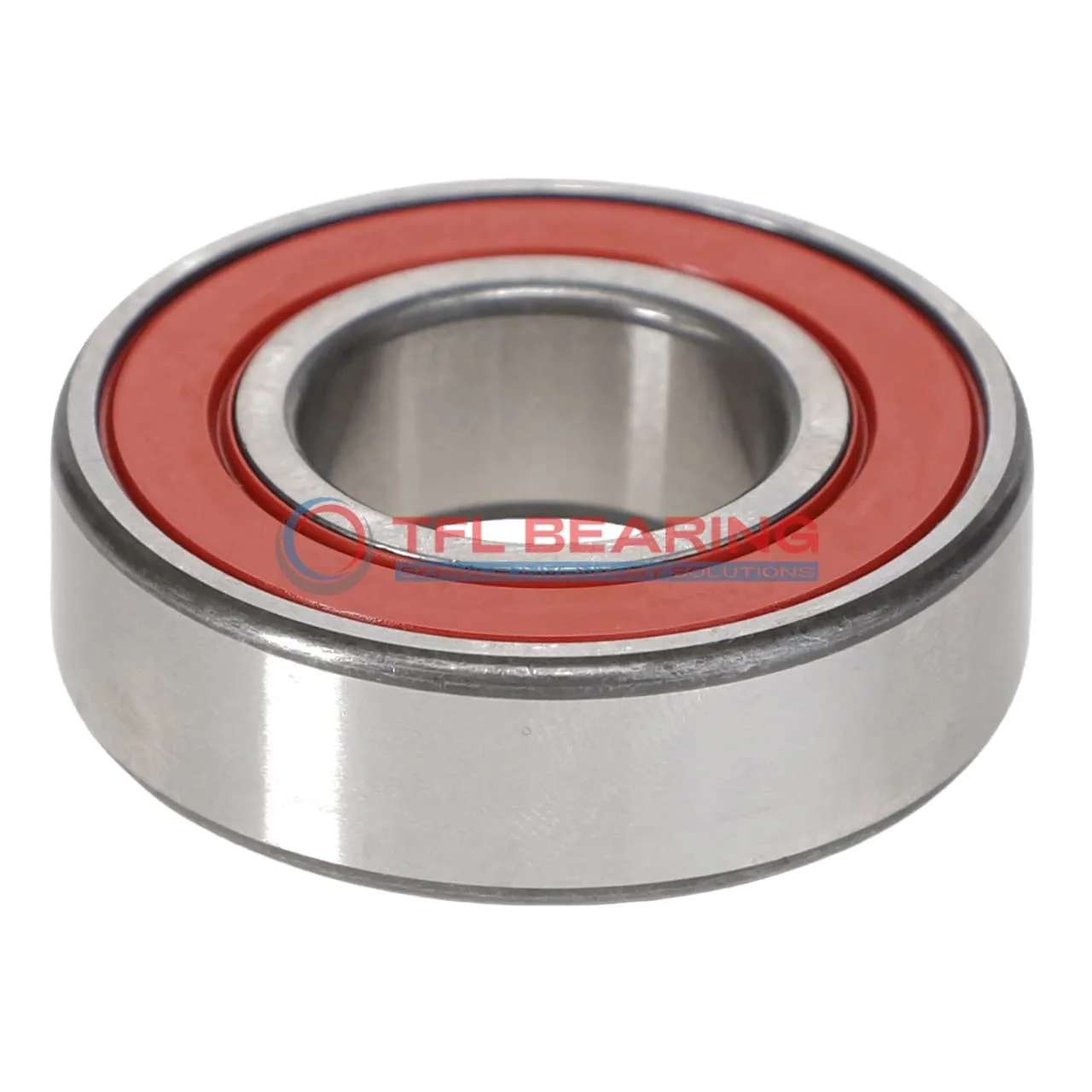

Single Row Deep Groove Ball Bearings 6014-2RS1/W64F

Single Row Deep Groove Ball Bearings 6014-2RS1/W64F

The 6014-2RS1/W64F is a single-row deep groove ball bearing with a 70mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8565 lbf and operates smoothly at speeds up to 6000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the solid oil ensures long-lasting performance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 598g, it offers a good balance of strength and weight. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6014-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8565 lbf
  • Static Radial Load 6947 lbf
  • Max Speed 6000 rpm
  • Weight 598 g
  • price（$） 32.985
Single Row Deep Groove Ball Bearings 6014-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6014-2RS1/W64F Bearing

6014-2RS1/W64F Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 8565 lbf.
Its sealed design with solid oil lubrication ensures smooth operation and reduces maintenance needs.

The bearing operates efficiently within a temperature range of -30°C to 120°C, suitable for various environments.
With a maximum speed of 6,000 rpm, it balances performance and durability for industrial applications.

The ABEC 1 tolerance class ensures reliable precision, making it ideal for radial load requirements.
Its compact size of 70 mm×110 mm×20 mm fits seamlessly into machinery without compromising strength.

Application

Industrial Uses of 6014-2RS1/W64F Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in demanding environments.

What Makes 6014-2RS1/W64F Bearing a Preferred Choice?
In automotive applications, it’s often found in wheel hubs and transmissions, thanks to its radial load capacity and durability. The chrome steel construction provides long-lasting performance under various conditions.

Perfect Fit for Automation: 6014-2RS1/W64F Bearing
For robotic arms and automated systems, this bearing offers reliable performance with minimal maintenance. Its sealed design and solid oil lubrication make it suitable for continuous operation.

Medical vs Industrial: Where 6014-2RS1/W64F Bearing Excels
While it’s robust enough for industrial gear, it’s also used in medical devices like centrifuges, where precision and reliability are key. The temperature range ensures it performs well in different settings.
