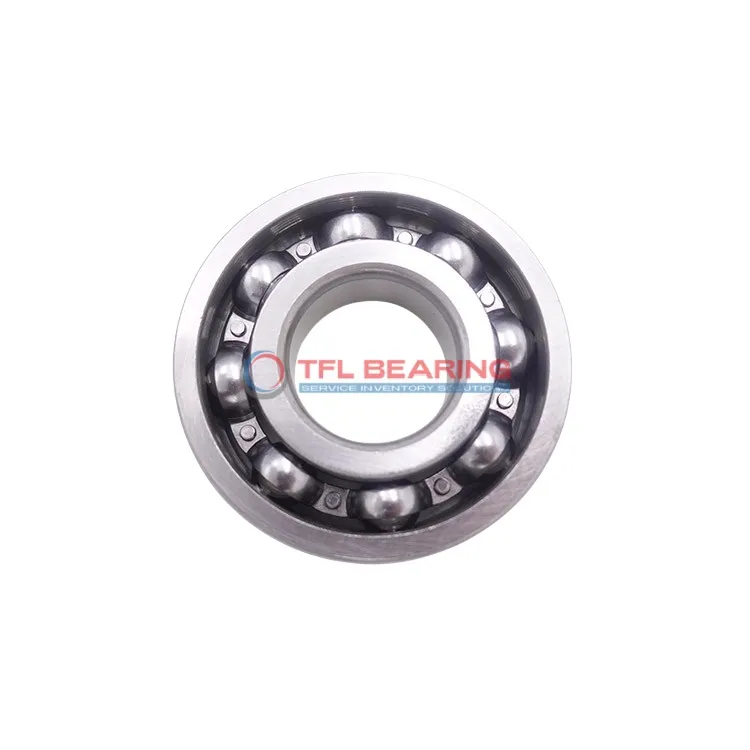

Single Row Deep Groove Ball Bearings 6418

Single Row Deep Groove Ball Bearings 6418

The 6418 is a single-row deep groove ball bearing with a 90mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 41814 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for radial load applications like electric motors or conveyor systems.

Weighing 1150g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6418
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 54 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 41814 lbf
  • Static Radial Load 33721 lbf
  • Max Speed 3000 rpm
  • Weight 1150 g
  • price（$） 214.254
Single Row Deep Groove Ball Bearings 6418 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6418 Bearing

6418 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 41814 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 3,000 rpm, it balances performance and durability.

6418 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design simplifies maintenance, though lubrication is required for optimal performance.

The ABEC-1 tolerance class ensures reliable operation in various industrial settings.
Its metric dimensions (90 mm bore, 225 mm outer diameter) make it compatible with standard systems.

Application

Industrial Uses of 6418 Bearing
The 6418 Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 6418 Bearing Used?
You’ll often find the 6418 Bearing in conveyor systems and electric motors, thanks to its reliable performance under continuous operation. The open seal design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 6418 Bearing
The 6418 Bearing excels in applications like agricultural equipment and construction machinery, where its high load capacity is essential. Its ABEC-1 tolerance ensures consistent performance without unnecessary complexity.

Automotive vs Industrial: Applications of 6418 Bearing
In automotive systems, the 6418 Bearing supports components like alternators and fans, while in industrial settings, it’s ideal for large fans and compressors. Its metric sizing makes it versatile across different regions.

Perfect Fit for Automation: 6418 Bearing
The 6418 Bearing is a solid choice for robotic arms and automated assembly lines, where precision and reliability are key. Its stainless steel cage adds resistance to wear in high-speed operations.
