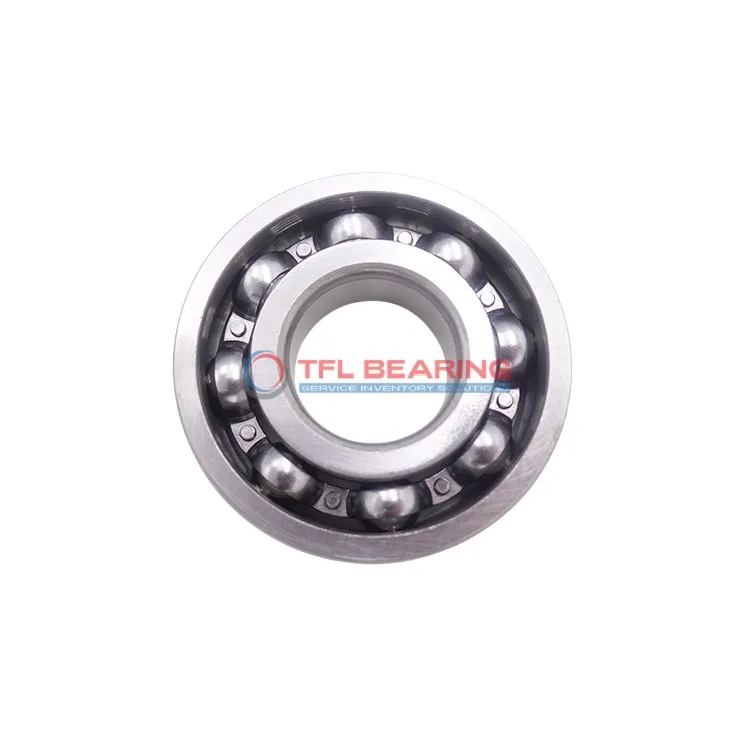

Single Row Deep Groove Ball Bearings 6418/C3

Single Row Deep Groove Ball Bearings 6418/C3

The 6418/C3 is a single-row deep groove ball bearing with a 90mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 41814 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial motors or pumps where radial loads are prevalent.

Weighing 1150g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6418/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 54 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 41814 lbf
  • Static Radial Load 33721 lbf
  • Max Speed 3000 rpm
  • Weight 1150 g
  • price（$） 232.506
Single Row Deep Groove Ball Bearings 6418/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6418/C3 Bearing Reduce Friction?

6418/C3 Bearing features a deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while maintaining low friction during operation.

With a dynamic radial load capacity of 41,814 lbf, it handles demanding applications with ease.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied operating conditions.

The open seal design simplifies maintenance while keeping contaminants at bay.
Operating temperatures range from -30°C to 120°C, ensuring reliability in diverse environments.

Application

Industrial Uses of 6418/C3 Bearing
The 6418/C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its robust design handles radial loads with ease. Its open seal type allows for straightforward lubrication, ideal for high-duty cycles.

In automotive applications, 6418/C3 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under varying speeds. The C3 clearance ensures smooth operation even with thermal expansion.

For automation equipment, 6418/C3 Bearing supports robotic arms and assembly lines, thanks to its durable chrome steel construction. The metric sizing makes it compatible with a wide range of European machinery standards.

Where Is 6418/C3 Bearing Used?
You’ll often find 6418/C3 Bearing in agricultural machinery, such as tractors and harvesters, where its radial load capacity is crucial. The wide temperature range also makes it suitable for outdoor use.

In packaging machines, 6418/C3 Bearing ensures smooth operation of rotating parts, reducing downtime. Its ABEC 1 tolerance offers a good balance between precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 6418/C3 Bearing
The 6418/C3 Bearing excels in construction equipment like cranes and excavators, handling heavy radial loads without faltering. Its chrome steel cage enhances durability in gritty environments.

For wind turbines, 6418/C3 Bearing provides long-lasting performance in nacelles and gearboxes. The C3 clearance accommodates slight misalignments, common in such dynamic applications.

Automotive vs Aerospace: Applications of 6418/C3 Bearing
In automotive systems, 6418/C3 Bearing is trusted for drivetrain components, offering reliability under constant stress. Its static load capacity ensures stability during sudden stops.

While not typically used in aerospace, 6418/C3 Bearing finds its place in ground support equipment, where robustness matters more than weight savings. The temperature range suits various operational climates.
