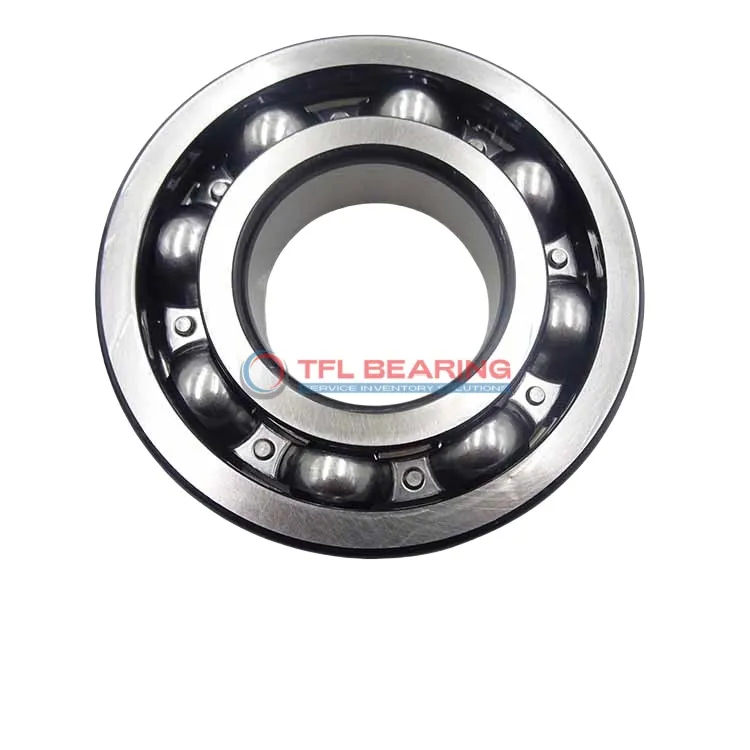

Single Row Deep Groove Ball Bearings 6334 M/C4VL2071

Single Row Deep Groove Ball Bearings 6334 M/C4VL2071

The 6334 M/C4VL2071 is a single-row deep groove ball bearing with a 170mm bore and 360mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 70140 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design and machined metal cage ensure durability, while the C4 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for heavy-duty machinery like pumps or industrial gearboxes where radial loads are prevalent.

Weighing 34.9kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6334 M/C4VL2071
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 72 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 70140 lbf
  • Static Radial Load 76435 lbf
  • Max Speed 3400 rpm
  • Weight 34.9 kg
  • price（$） 832.185
Single Row Deep Groove Ball Bearings 6334 M/C4VL2071 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6334 M/C4VL2071 Bearing

6334 M/C4VL2071 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 70,140 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, enhancing durability and reducing friction.
With a maximum speed of 3,400 rpm, it balances performance and reliability.

6334 M/C4VL2071 Bearing operates efficiently in temperatures from -30°C to 120°C.
Its open design allows for easy lubrication, maintaining smooth operation over time.

The C4 radial clearance provides flexibility in various operating conditions.
This bearing is interchangeable with SKF models, ensuring compatibility and convenience.

Application

Industrial Uses of 6334 M/C4VL2071 Bearing
This bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending service life in demanding environments.

Where Is 6334 M/C4VL2071 Bearing Used?
You’ll often find 6334 M/C4VL2071 Bearing in conveyor systems and agricultural equipment, thanks to its robust construction and high load capacity. Its C4 clearance ensures reliable performance even under varying thermal conditions.

Built for Heavy-Duty Use: 6334 M/C4VL2071 Bearing
With its chrome steel rings and machined metal cage, this bearing excels in applications like mining equipment and construction machinery. The wide temperature range makes it suitable for both hot and cold operating conditions.

Automotive vs Aerospace: Applications of 6334 M/C4VL2071 Bearing
In automotive settings, this bearing supports large drivetrain components, while its precision makes it useful in aerospace ground support equipment. The metric sizing ensures compatibility with international machinery standards.
