Single Row Deep Groove Ball Bearings 61848

Single Row Deep Groove Ball Bearings 61848

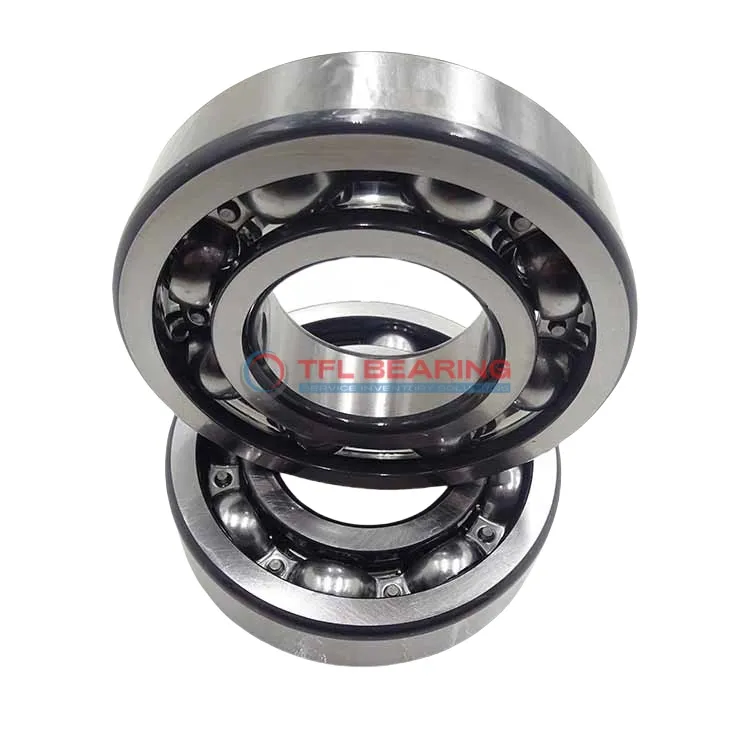

The 61848 is a single-row deep groove ball bearing with a 240mm bore and 300mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24279 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty machinery or industrial equipment where radial load support is key.

Weighing 3.88kg, it balances strength with manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61848
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 28 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 24279 lbf
  • Static Radial Load 33721 lbf
  • Max Speed 2600 rpm
  • Weight 3.88 kg
  • price（$） 347.85
Single Row Deep Groove Ball Bearings 61848 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61848 Bearing

61848 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 24279 lbf.
Its stainless steel cage ensures smooth operation, reducing friction and wear.

The P6 tolerance class of 61848 Bearing provides precise performance for demanding applications.
With a maximum speed of 2,600 rpm, it balances efficiency and durability.

61848 Bearing operates in temperatures from -30° to 120°C, suitable for various environments.
Its open design simplifies maintenance, making it a practical choice for industrial use.

Application

Industrial Uses of 61848 Bearing
61848 Bearing is commonly used in heavy machinery, such as large conveyor systems and industrial fans, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, making it suitable for high-temperature environments.

Where Is 61848 Bearing Used?
You’ll often find 61848 Bearing in automotive applications like electric motors and pumps, where its durability and precision are key. Its metric sizing makes it a reliable choice for European and Asian vehicle models.

Perfect Fit for Automation: 61848 Bearing
In automated production lines, 61848 Bearing supports robotic arms and assembly systems, thanks to its high load capacity and stability. The chrome steel construction ensures long-lasting performance even in demanding conditions.

Medical vs Industrial: Where 61848 Bearing Excels
While 61848 Bearing performs well in industrial settings, it’s also found in medical imaging devices where precision is critical. The stainless steel cage adds an extra layer of reliability for continuous use.

Essential Roles of 61848 Bearing
From agricultural equipment to printing presses, 61848 Bearing handles radial loads with ease. Its wide temperature range makes it versatile for various climates and working conditions.
