Single Row Deep Groove Ball Bearings 6316/W64

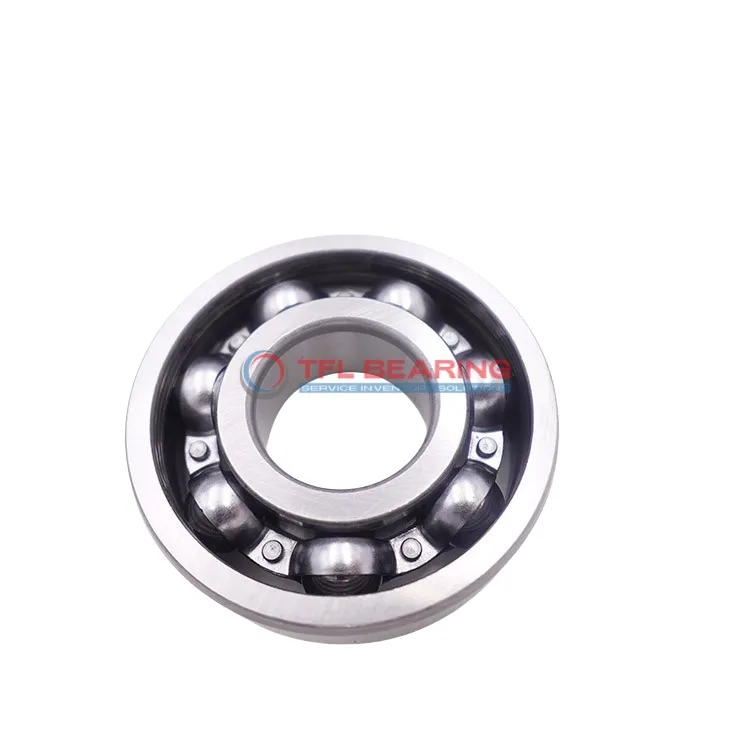

Single Row Deep Groove Ball Bearings 6316/W64

The 6316/W64 is a single-row deep groove ball bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 27652 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 3670g, it offers a robust build for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6316/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 39 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 27652 lbf
  • Static Radial Load 19491 lbf
  • Max Speed 4000 rpm
  • Weight 3670 g
Single Row Deep Groove Ball Bearings 6316/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6316/W64 Bearing

6316/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 27652 lbf, ensuring reliable performance in various applications.

The solid oil lubrication in 6316/W64 Bearing reduces friction and extends maintenance intervals.
It operates smoothly within a temperature range of -30°C to 120°C, making it versatile for different environments.

With a maximum speed of 4,000 rpm, 6316/W64 Bearing balances efficiency and durability.
The open design simplifies installation and maintenance, saving time and effort.

Application

Common Applications of 6316/W64 Bearing
6316/W64 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its deep groove design handles radial loads efficiently. The solid oil lubrication ensures long service life with minimal maintenance.

In automotive applications, 6316/W64 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under varying speeds. Its chrome steel construction offers good resistance to wear and tear.

For automation equipment, 6316/W64 Bearing supports smooth operation in robotic arms and conveyor belts. The open seal design allows for easy inspection and re-lubrication when needed.

Where Is 6316/W64 Bearing Used?
You’ll often find 6316/W64 Bearing in household appliances like washing machines, where its durability and quiet operation are appreciated. The metric dimensions make it a versatile choice for various brands.

In agricultural machinery, 6316/W64 Bearing handles heavy loads in equipment like harvesters and tractors. Its solid oil lubrication performs well even in dusty or humid conditions.

Built for Heavy-Duty Use: 6316/W64 Bearing
6316/W64 Bearing is a solid pick for construction equipment, such as cranes and excavators, thanks to its high dynamic load capacity. The chrome steel cage adds extra strength for tough environments.

In food processing machines, 6316/W64 Bearing’s compliant materials meet hygiene standards while ensuring smooth operation. The temperature range suits both hot and cold production lines.

Light-Duty vs Heavy-Duty: Best Uses for 6316/W64 Bearing
For light-duty tasks like office printers, 6316/W64 Bearing offers quiet and efficient performance. Its precision fits well in devices requiring consistent motion.

In heavy industrial settings, 6316/W64 Bearing stands up to demanding conditions like mining equipment. The robust design and solid oil lubrication reduce downtime for maintenance.
