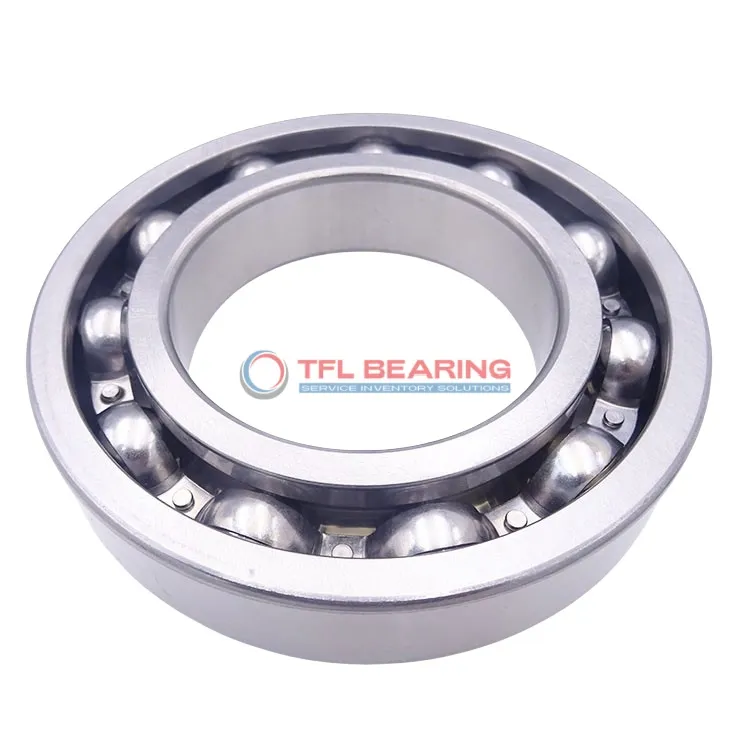

Single Row Deep Groove Ball Bearings 6324 M/C3VL0241

Single Row Deep Groove Ball Bearings 6324 M/C3VL0241

The 6324 M/C3VL0241 is a single row deep groove ball bearing with a 120mm bore and 260mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 46760 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design and C3 radial clearance allow for flexibility in high-temperature environments, ranging from -30°C to 120°C. The machined metal cage enhances durability and performance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. It suits heavy-duty applications like industrial motors or pumps where radial loads are predominant.

Weighing 14.2kg, it’s built to last while complying with RoHS and REACH standards for safety and reliability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6324 M/C3VL0241
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 55 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 46760 lbf
  • Static Radial Load 41814 lbf
  • Max Speed 5000 rpm
  • Weight 14.2 kg
  • price（$） 412.11
Single Row Deep Groove Ball Bearings 6324 M/C3VL0241 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6324 M/C3VL0241 Bearing

6324 M/C3VL0241 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 46760 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, enhancing durability and reducing friction.
With a maximum speed of 5,000 rpm, it maintains reliable performance under stress.

6324 M/C3VL0241 Bearing operates in temperatures from -30° to 120°C, adapting to various environments.
Its open design simplifies maintenance while the C3 radial clearance allows for thermal expansion.

The ABEC 1 tolerance ensures consistent performance, ideal for industrial machinery.
Its robust construction and high load capacity make it a dependable choice for radial applications.

Application

Industrial Uses of 6324 M/C3VL0241 Bearing
This bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its radial load capacity ensures stable operation. The open design and C3 clearance make it suitable for applications with thermal expansion needs.

Where Is 6324 M/C3VL0241 Bearing Used?
You’ll often find it in conveyor systems and agricultural equipment, thanks to its robust chrome steel construction. The machined metal cage adds durability, making it reliable for high-load scenarios.

Built for Heavy-Duty Use: 6324 M/C3VL0241 Bearing
It’s a solid choice for mining equipment and construction machinery, handling radial loads with ease. The wide temperature range (-30°C to 120°C) ensures performance in varying environments.

Automotive vs Aerospace: Applications of 6324 M/C3VL0241 Bearing
In automotive applications, it supports components like wheel hubs and transmissions. For aerospace, its precision and load capacity make it useful in auxiliary systems.
