Stainless Steel Deep Groove Ball Bearings W 608-2RS1/VP311

Stainless Steel Deep Groove Ball Bearings W 608-2RS1/VP311

The W 608-2RS1/VP311 is a compact stainless steel deep groove ball bearing, measuring 8mm by 22mm by 7mm. It handles radial loads up to 447 lbf and spins smoothly at speeds up to 22,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless construction resists corrosion, even in harsh environments.

This bearing works well in temperatures from -30°C to 120°C and is pre-lubricated for easy installation. It’s a direct replacement for SKF bearings, offering reliable performance.

Ideal for small machinery, electric motors, or food processing equipment where hygiene matters. Weighing just 12 grams, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 608-2RS1/VP311
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 175 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 22000 rpm
  • Weight 0.012 kg
  • Price（$） 4.6

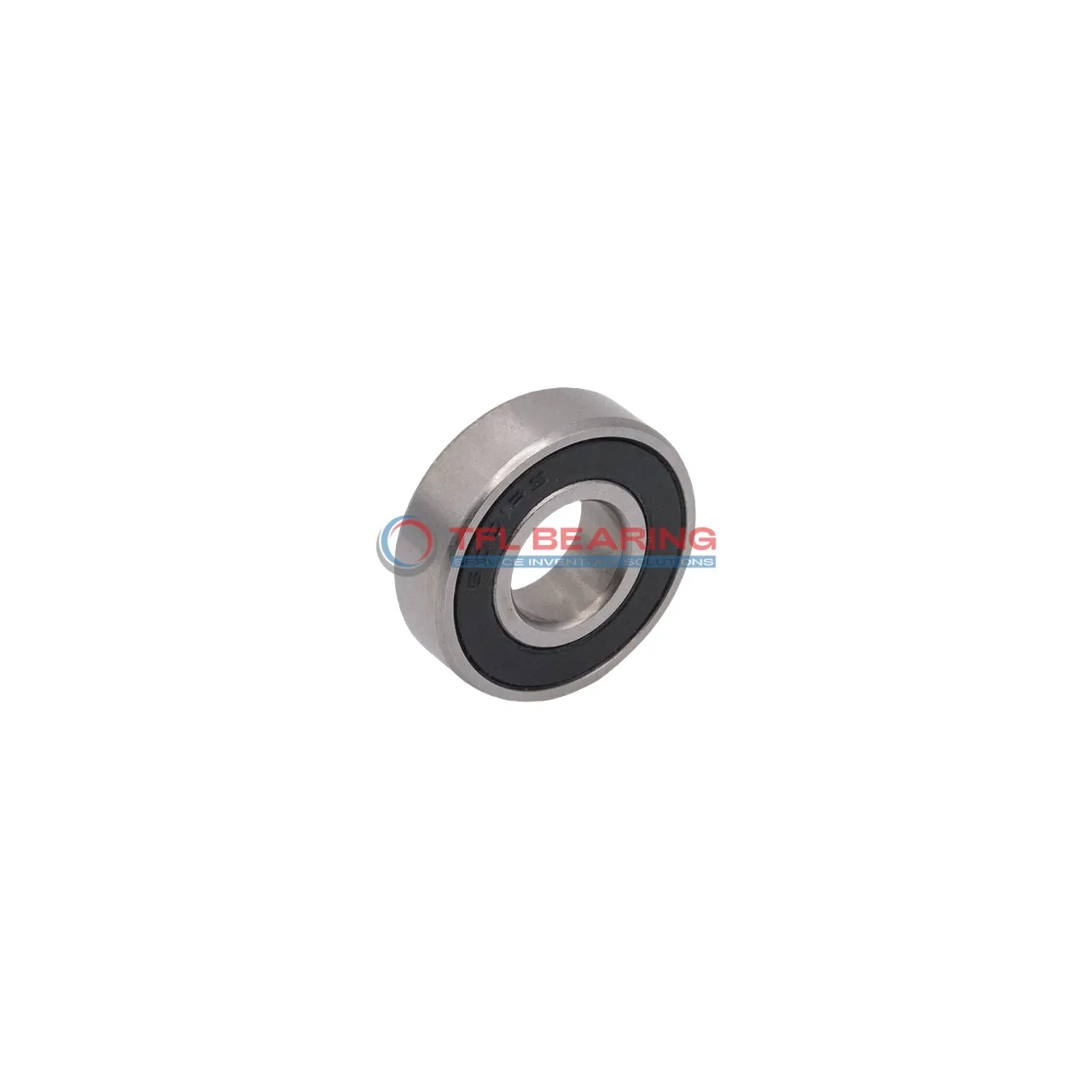

Stainless Steel Deep Groove Ball Bearings W 608-2RS1/VP311 dimension drawing
Download DWG Download PDF

Features

How Does W 608-2RS1/VP311 Bearing Reduce Friction?

W 608-2RS1/VP311 Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its sealed design retains lubrication, reducing wear and extending service life.

The single-row deep groove design enhances radial load capacity, supporting up to 447 lbf.
With a maximum speed of 22,000 rpm, it delivers reliable performance in various applications.

Stainless steel balls and rings resist corrosion, making it suitable for humid or demanding environments.
The grease lubrication ensures consistent performance across a temperature range of -30° to 120°C.

W 608-2RS1/VP311 Bearing’s compact size (8 mm×22 mm×7 mm) allows for easy integration into small spaces.
Its P0 tolerance class ensures precision and reliability in operation.

Application

Common Applications of W 608-2RS1/VP311 Bearing
W 608-2RS1/VP311 Bearing is widely used in small electric motors, such as those found in household appliances like blenders and fans. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday use.

In automation systems, W 608-2RS1/VP311 Bearing helps smooth operation in components like conveyor rollers and robotic joints. The stainless steel construction resists corrosion, making it suitable for humid or washdown environments.

For DIY projects, W 608-2RS1/VP311 Bearing is a popular choice in 3D printers and small machinery due to its compact size and reliability. The grease lubrication ensures quiet operation, which is ideal for home workshops.

Medical devices like dental drills often use W 608-2RS1/VP311 Bearing for its precision and hygiene-friendly stainless steel build. The sealed feature also prevents contamination in sensitive environments.
