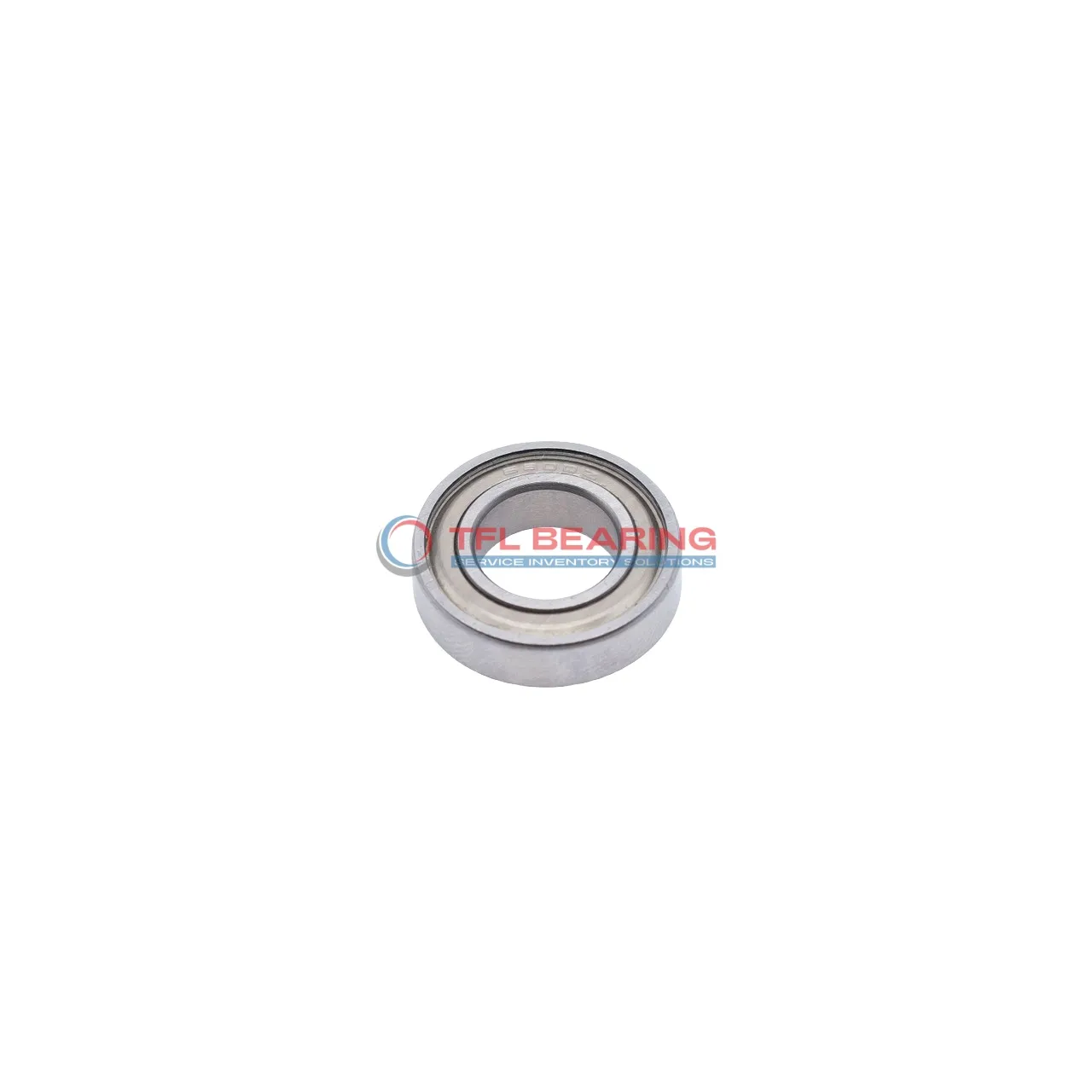

Single Row Deep Groove Ball Bearings 6312-2Z/C3WT

Single Row Deep Groove Ball Bearings 6312-2Z/C3WT

The 6312-2Z/C3WT is a single-row deep groove ball bearing with a 60mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 18412 lbf and operates smoothly at speeds up to 5300 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The C3 clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 1699g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6312-2Z/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11735 lbf
  • Max Speed 5300 rpm
  • Weight 1699 g
  • price（$） 33.768
Single Row Deep Groove Ball Bearings 6312-2Z/C3WT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6312-2Z/C3WT Bearing

6312-2Z/C3WT Bearing is designed for radial loads, with a dynamic radial load capacity of 18412 lbf.
Its chrome steel construction ensures durability and resistance to wear in various applications.
The shielded design protects against contaminants, enhancing its reliability.
With a maximum speed of 5,300 rpm, it offers a balance of performance and longevity.

Application

Industrial Uses of 6312-2Z/C3WT Bearing
6312-2Z/C3WT Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

What Makes 6312-2Z/C3WT Bearing a Preferred Choice?
In automotive applications, 6312-2Z/C3WT Bearing fits well in wheel hubs and transmissions due to its robust chrome steel construction. Its metric sizing makes it a versatile option for various vehicle models.

Built for Heavy-Duty Use: 6312-2Z/C3WT Bearing
For automation systems, 6312-2Z/C3WT Bearing provides reliable performance in robotic arms and conveyor belts. The shielded seals extend its lifespan by reducing dust and debris ingress.

Light-Duty vs Heavy-Duty: Best Uses for 6312-2Z/C3WT Bearing
In consumer electronics like washing machines, 6312-2Z/C3WT Bearing offers quiet and efficient operation. Its temperature range also makes it suitable for household appliances that experience frequent use.
