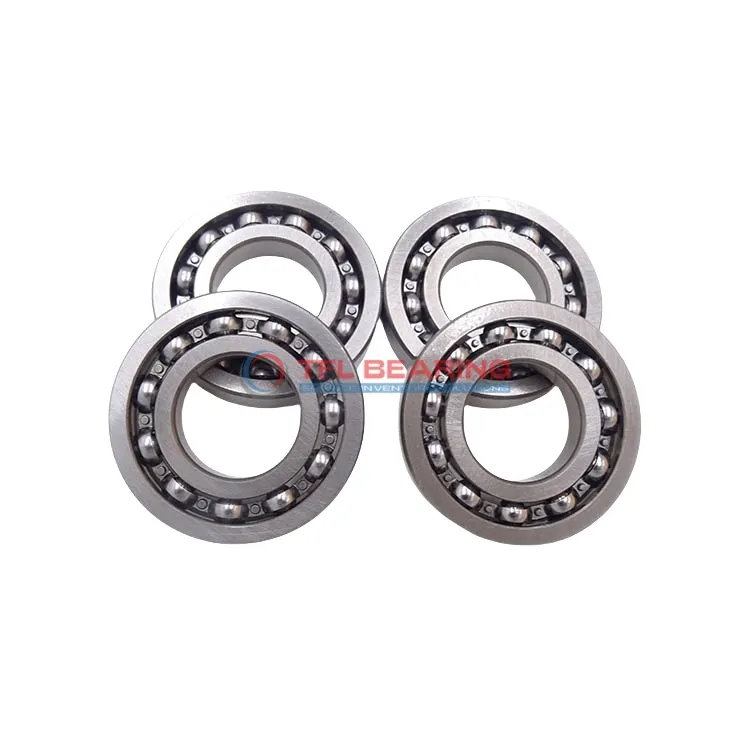

Single Row Deep Groove Ball Bearings 315SFF

Single Row Deep Groove Ball Bearings 315SFF

The 315SFF is a single-row deep groove ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 16800 lbf and operates smoothly in temperatures ranging from -30°C to 120°C.

Its open design allows for easy lubrication and maintenance, while the chrome steel cage ensures durability under heavy use. The bearing meets ABEC 1 and ISO P0 tolerance standards for consistent performance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery, pumps, or electric motors where radial load support is needed.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various applications. The compact 37mm width makes it easy to fit into tight spaces without compromising strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 315SFF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 61.002
Single Row Deep Groove Ball Bearings 315SFF dimension drawing
Download DWG Download PDF

Features

Performance Features of 315SFF Bearing

315SFF Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16800 lbf, ensuring reliable performance in various applications.
The chrome steel cage maintains ball alignment, reducing friction and wear.
With a temperature range of -30° to 120°C, it performs well in diverse conditions.

Application

Industrial Uses of 315SFF Bearing
315SFF Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 315SFF Bearing Used?
You’ll often find 315SFF Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 315SFF Bearing
315SFF Bearing excels in conveyor systems and gearboxes, handling high radial loads with ease. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Automotive vs Industrial: Applications of 315SFF Bearing
In automotive settings, 315SFF Bearing supports smooth operation in drivetrains, while in industrial gear, it’s trusted for its robustness in heavy machinery. The wide temperature range adds to its adaptability.
