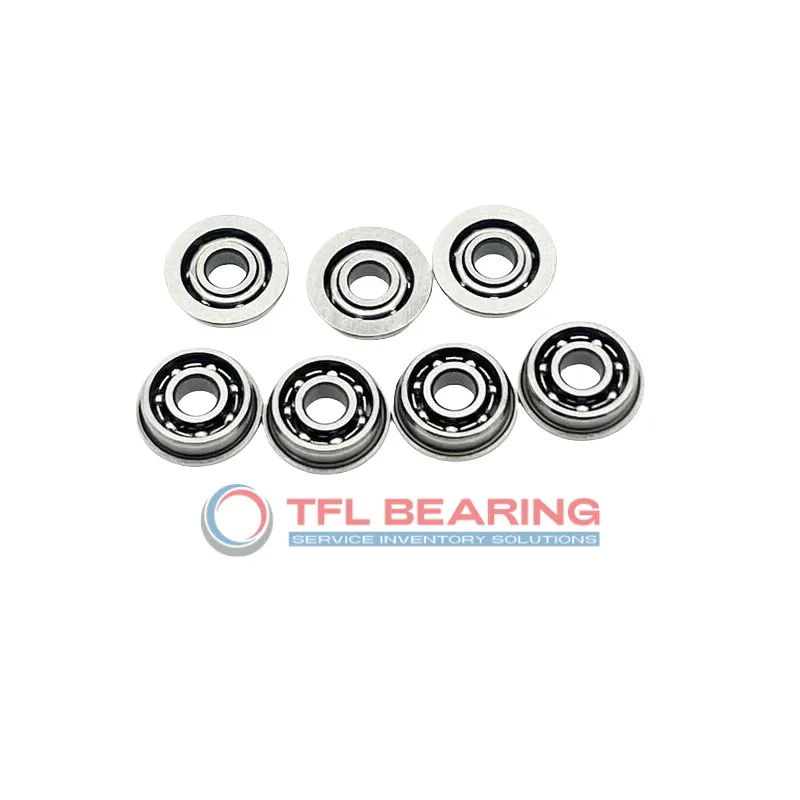

Standard Flanged Ball Bearings SF6706

Standard Flanged Ball Bearings SF6706

The SF6706 is a compact flanged ball bearing measuring 30mm in bore and 37mm in outer diameter, with a slim 4mm width. Made from stainless steel and chrome steel, it offers good resistance to wear and corrosion.

It handles radial loads up to 231 lbf and operates smoothly at speeds up to 5000 RPM. The open design allows for easy lubrication, ensuring long service life.

The flange provides secure mounting, preventing slippage in tight spaces. With a radial clearance of 0.002mm to 0.013mm, it ensures smooth rotation.

Ideal for small machinery or devices where space is limited, such as electric motors or medical equipment. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF6706
  • Brand TFL
  • Bore Dia 30 mm
  • Outer Dia 37 mm
  • Width 4 mm
  • Flange Outer Dia 39 mm
  • Flange Thickness 1 mm
  • Ball Qty 24
  • Ball Dia 1.588 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 231 lbf
  • Static Radial Load 192 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Price（$） 19
Standard Flanged Ball Bearings SF6706 dimension drawing
Download DWG Download PDF

Features

Why Choose SF6706 Bearing for Precision Tasks?

SF6706 Bearing features a stainless steel construction, offering good corrosion resistance for various applications.
Its dynamic radial load capacity of 231 lbf ensures reliable performance in precision tasks.

The open design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 5,000 rpm, it balances efficiency and durability.

The flange outer dia of 39 mm provides secure mounting, reducing misalignment risks.
Its ABEC-1 tolerance class ensures consistent performance in radial load applications.

Application

Common Applications of SF6706 Bearing
SF6706 Bearing is widely used in small electric motors, such as those found in household appliances like blenders and mixers. Its compact size and stainless steel construction make it resistant to corrosion, ideal for everyday use.

In automation systems, SF6706 Bearing fits well in lightweight robotic arms and conveyor guides. The open design allows for easy lubrication, ensuring smooth movement in repetitive tasks.

For medical devices, SF6706 Bearing’s precision helps in equipment like dental drills and lab centrifuges. The chrome steel balls provide reliable performance even under constant use.

You’ll also find SF6706 Bearing in office printers, where its low-profile design supports paper feed mechanisms. The flange adds stability, preventing misalignment during high-speed operation.
