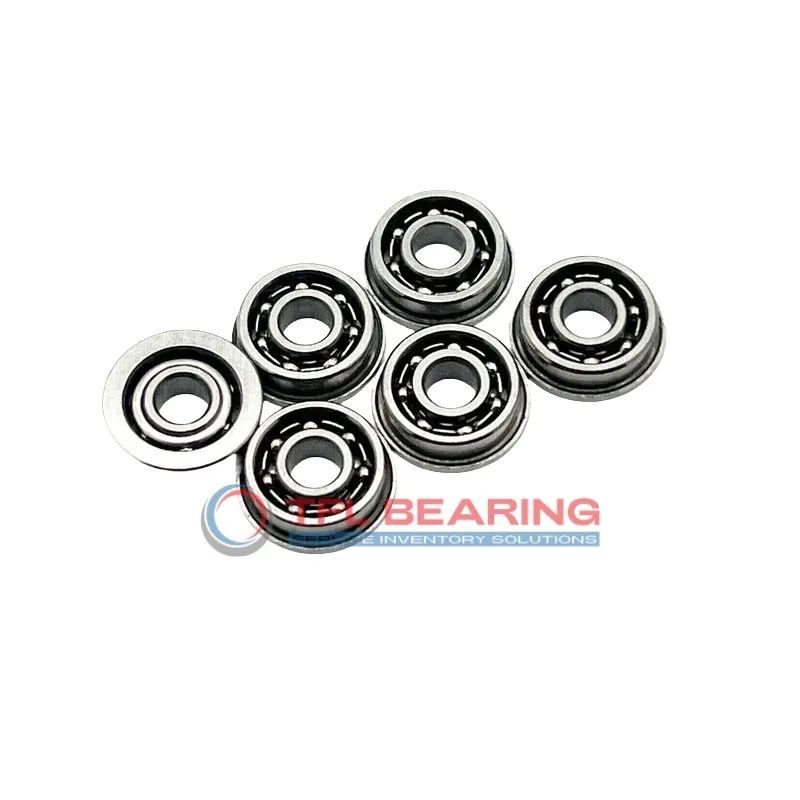

Standard Flanged Ball Bearings SF6805

Standard Flanged Ball Bearings SF6805

The SF6805 is a compact flanged ball bearing measuring 25mm by 37mm, with a width of just 7mm. Its stainless steel construction offers good resistance to wear and corrosion.

This bearing handles radial loads up to 87 lbf and can spin at speeds reaching 16,200 RPM, making it suitable for fast-moving applications. The open design allows for easy lubrication when needed.

The flange provides extra stability, helping the bearing stay securely in place during operation. It works in temperatures from -30°C to 110°C, adapting well to various environments.

Ideal for small machinery or equipment where space is limited, this bearing meets ABEC-1 tolerance standards. Its C0 radial clearance ensures smooth rotation in most general-purpose applications.

Compliant with RoHS and REACH regulations, it’s a reliable choice for European markets. The 15 chrome steel balls provide balanced load distribution for consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF6805
  • Brand TFL
  • Bore Dia 25 mm
  • Outer Dia 37 mm
  • Width 7 mm
  • Flange Outer Dia 40 mm
  • Flange Thickness 1.5 mm
  • Ball Qty 15
  • Ball Dia 3.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 87 lbf
  • Static Radial Load 595 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16200 rpm
  • Price（$） 14
Standard Flanged Ball Bearings SF6805 dimension drawing
Download DWG Download PDF

Features

Performance Features of SF6805 Bearing

SF6805 Bearing is crafted with stainless steel rings and a chrome steel ball set, ensuring durability and smooth radial load handling.
Its dynamic radial load capacity of 87 lbf makes it suitable for various applications requiring reliable performance.

The open design of SF6805 Bearing allows for easy lubrication, maintaining efficiency even at high speeds up to 16,200 rpm.
With a temperature range of -30° to 110°C, it performs well in diverse operating conditions.

The stainless steel cage in SF6805 Bearing keeps the balls aligned, reducing friction and extending service life.
Its ABEC-1 tolerance class ensures consistent precision for standard applications.

Application

Industrial Uses of SF6805 Bearing
SF6805 Bearing is commonly used in small industrial machinery, such as conveyor rollers and packaging equipment, where its compact size and radial load capacity are beneficial. The stainless steel construction ensures durability in various working environments.

Where Is SF6805 Bearing Used?
You’ll often find SF6805 Bearing in automotive applications like electric window mechanisms or small gearboxes, thanks to its reliable performance and metric sizing. Its open design allows for easy lubrication, extending its service life.

Built for Versatility: SF6805 Bearing
SF6805 Bearing works well in consumer electronics, such as printers or small fans, where low noise and smooth operation are key. The flange design helps with precise mounting, making installation straightforward.

Medical vs Industrial: Where SF6805 Bearing Excels
In medical devices like handheld scanners, SF6805 Bearing provides quiet and precise movement. For industrial uses, it’s a go-to for light-duty machinery requiring consistent radial load support.

Practical Applications of SF6805 Bearing
SF6805 Bearing is ideal for automation systems, including robotic arms, where its high-speed capability and stainless steel materials ensure long-term reliability. The ABEC-1 tolerance class offers a good balance of precision and cost-effectiveness.
