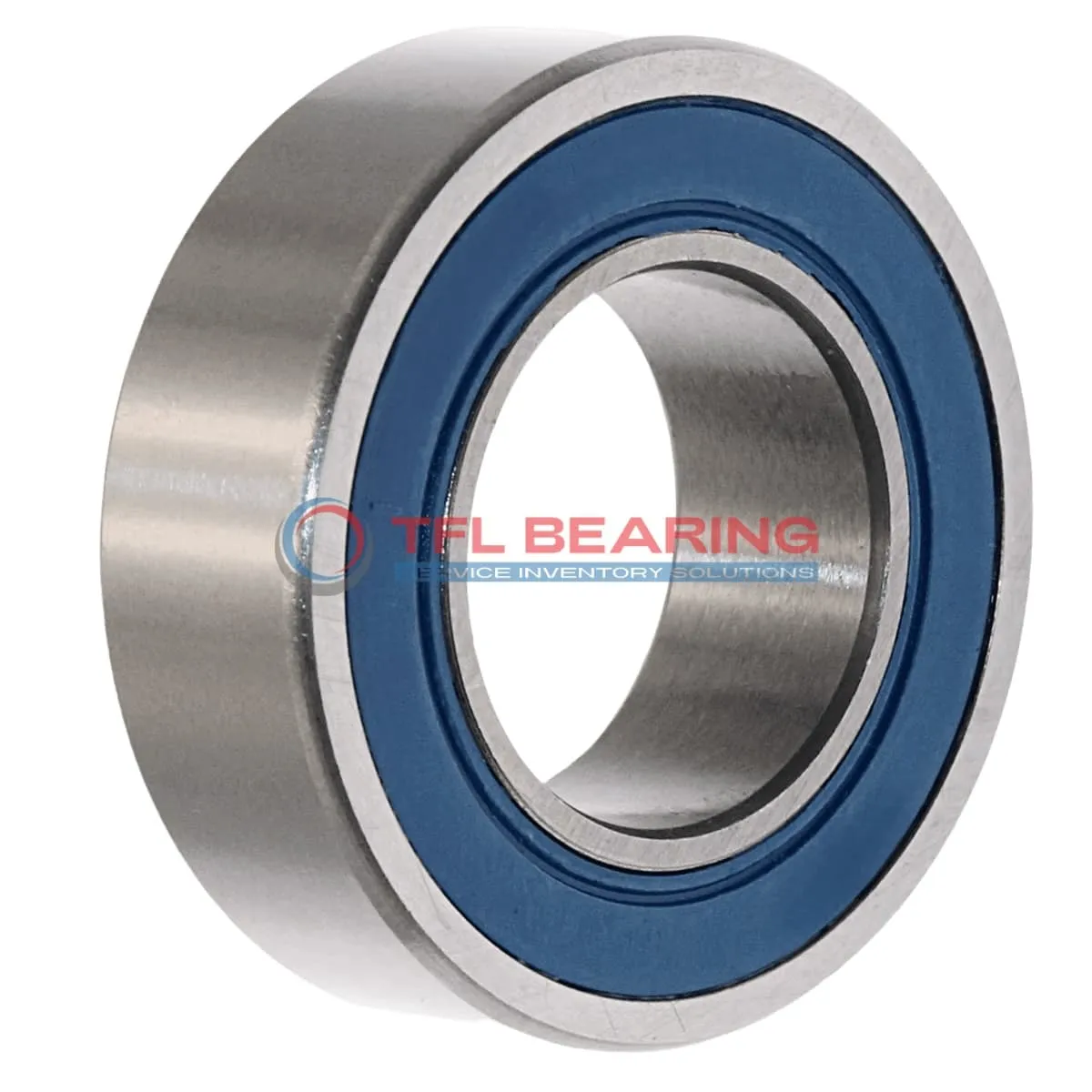

Single Row Deep Groove Ball Bearings 6310-2RS1/LT20

The 6310-2RS1/LT20 is a sealed single row deep groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 13938 lbf and operates smoothly at speeds up to 6000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The chrome steel cage adds strength and durability, even in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1050g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6310-2RS1/LT20
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 27 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 13938 lbf
Static Radial Load 861 lbf
Max Speed 6000 rpm
Weight 1050 g

Single Row Deep Groove Ball Bearings 6310-2RS1/LT20 dimension drawing

Download DWG Download PDF

Features

How Does 6310-2RS1/LT20 Bearing Reduce Friction?

6310-2RS1/LT20 Bearing features a deep groove design, optimised for smooth radial load distribution.
The sealed construction helps retain lubrication, reducing friction and wear over time.

Chrome steel rings and balls enhance durability, ensuring reliable performance under dynamic loads.
With a maximum speed of 6,000 rpm, it maintains efficiency without compromising longevity.

Its ABEC 1 tolerance class ensures consistent operation, suitable for various industrial applications.
The bearing operates efficiently within a temperature range of -30°C to 120°C.

Application

Industrial Uses of 6310-2RS1/LT20 Bearing
6310-2RS1/LT20 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6310-2RS1/LT20 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its ABEC 1 tolerance makes it suitable for standard precision requirements.

For automation systems, 6310-2RS1/LT20 Bearing works smoothly in conveyor belts and robotic arms. The sealed feature reduces maintenance needs, making it a practical choice for continuous operation.

In household appliances like washing machines, 6310-2RS1/LT20 Bearing offers quiet and efficient performance. Its temperature range allows it to handle both hot and cold conditions without issues.
