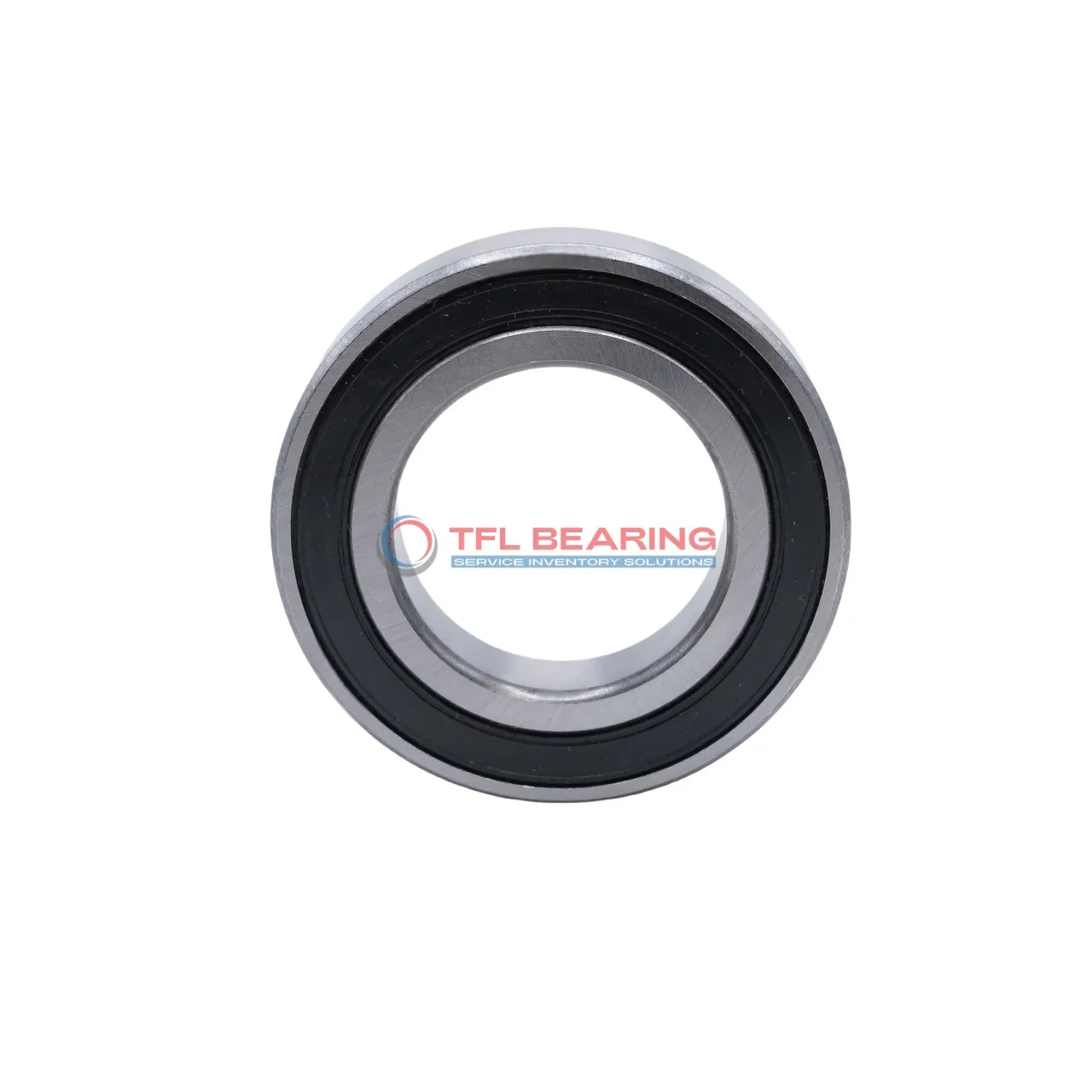

Single Row Deep Groove Ball Bearings 6308-2RS1/WT

Single Row Deep Groove Ball Bearings 6308-2RS1/WT

The 6308-2RS1/WT is a sealed single-row deep groove ball bearing, measuring 40mm by 90mm by 23mm, crafted from durable chrome steel. It handles radial loads up to 915 lbf and operates smoothly at speeds up to 7500 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The chrome steel cage adds strength and durability, even in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 620g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6308-2RS1/WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 915 lbf
  • Static Radial Load 5395 lbf
  • Max Speed 7500 rpm
  • Weight 620 g
Single Row Deep Groove Ball Bearings 6308-2RS1/WT dimension drawing
Download DWG Download PDF

Features

How Does 6308-2RS1/WT Bearing Reduce Friction?

6308-2RS1/WT Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation and reduced friction.
Its single-row deep groove construction enhances radial load capacity, supporting up to 915 lbf dynamic radial load.
The sealed design protects against contaminants, making it suitable for various environments.
With a maximum speed of 7,500 rpm, it delivers reliable performance in diverse applications.

Application

Common Applications of 6308-2RS1/WT Bearing
6308-2RS1/WT Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep out contaminants. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6308-2RS1/WT Bearing is often found in wheel hubs and transmission systems, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, 6308-2RS1/WT Bearing offers smooth and quiet operation. The sealed design also helps extend the bearing’s lifespan by preventing dust and moisture ingress.

In automation equipment, 6308-2RS1/WT Bearing is used in conveyor systems and robotic arms, where its consistent performance is essential. The ABEC 1 tolerance ensures reliable operation in precision applications.
