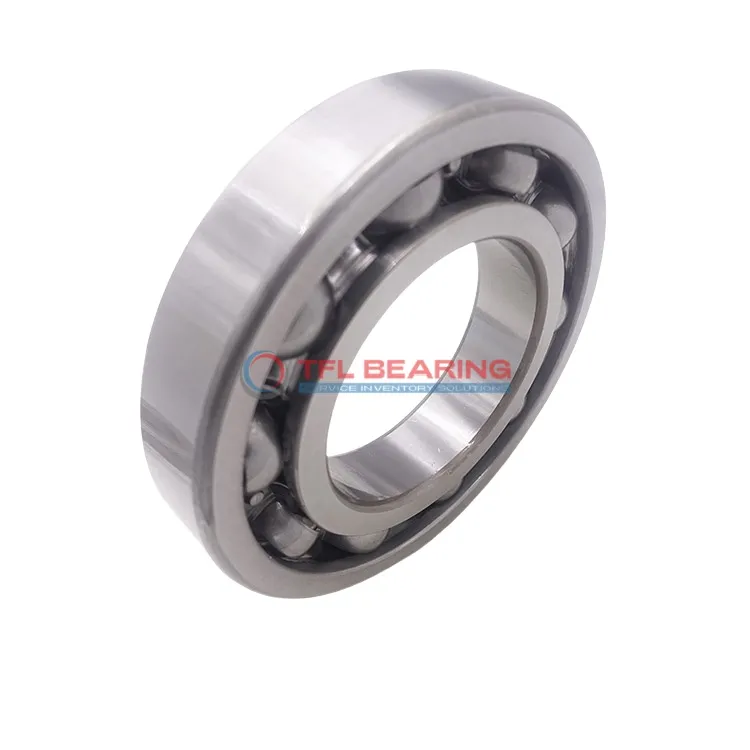

Single Row Deep Groove Ball Bearings 61832 MA/W64

Single Row Deep Groove Ball Bearings 61832 MA/W64

The 61832 MA/W64 is a single-row deep groove ball bearing with a 160mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11106 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the machined metal cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.25kg, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61832 MA/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 20 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11106 lbf
  • Static Radial Load 14388 lbf
  • Max Speed 4000 rpm
  • Weight 1.25 kg
  • price（$） 398.412
Single Row Deep Groove Ball Bearings 61832 MA/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61832 MA/W64 Bearing

61832 MA/W64 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 11106 lbf, making it suitable for demanding applications.

The machined metal cage ensures smooth operation and reduces wear over time.
With a maximum speed of 4,000 rpm, it balances performance and durability.

Solid oil lubrication extends maintenance intervals, reducing operational costs.
The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

Application

Industrial Uses of 61832 MA/W64 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently.
The solid oil lubrication ensures long service life, even in continuous operation environments.

Where Is 61832 MA/W64 Bearing Used?
You’ll often find it in conveyor systems and gearboxes, thanks to its robust chrome steel construction.
Its ABEC 1 tolerance makes it suitable for applications where moderate precision is required.

Built for Heavy-Duty Use: 61832 MA/W64 Bearing
It’s a reliable choice for agricultural equipment, where durability and load capacity are key.
The machined metal cage adds strength, making it ideal for high-vibration settings.

Automotive vs Aerospace: Applications of 61832 MA/W64 Bearing
In automotive systems, it supports components like alternators and fans, balancing performance and cost.
For aerospace, its temperature range and solid oil lubrication suit auxiliary equipment needing consistent reliability.

Perfect Fit for Automation: 61832 MA/W64 Bearing
This bearing works well in robotic arms and assembly line equipment, offering smooth rotation.
The open seal design allows for easy inspection and maintenance in automated setups.
