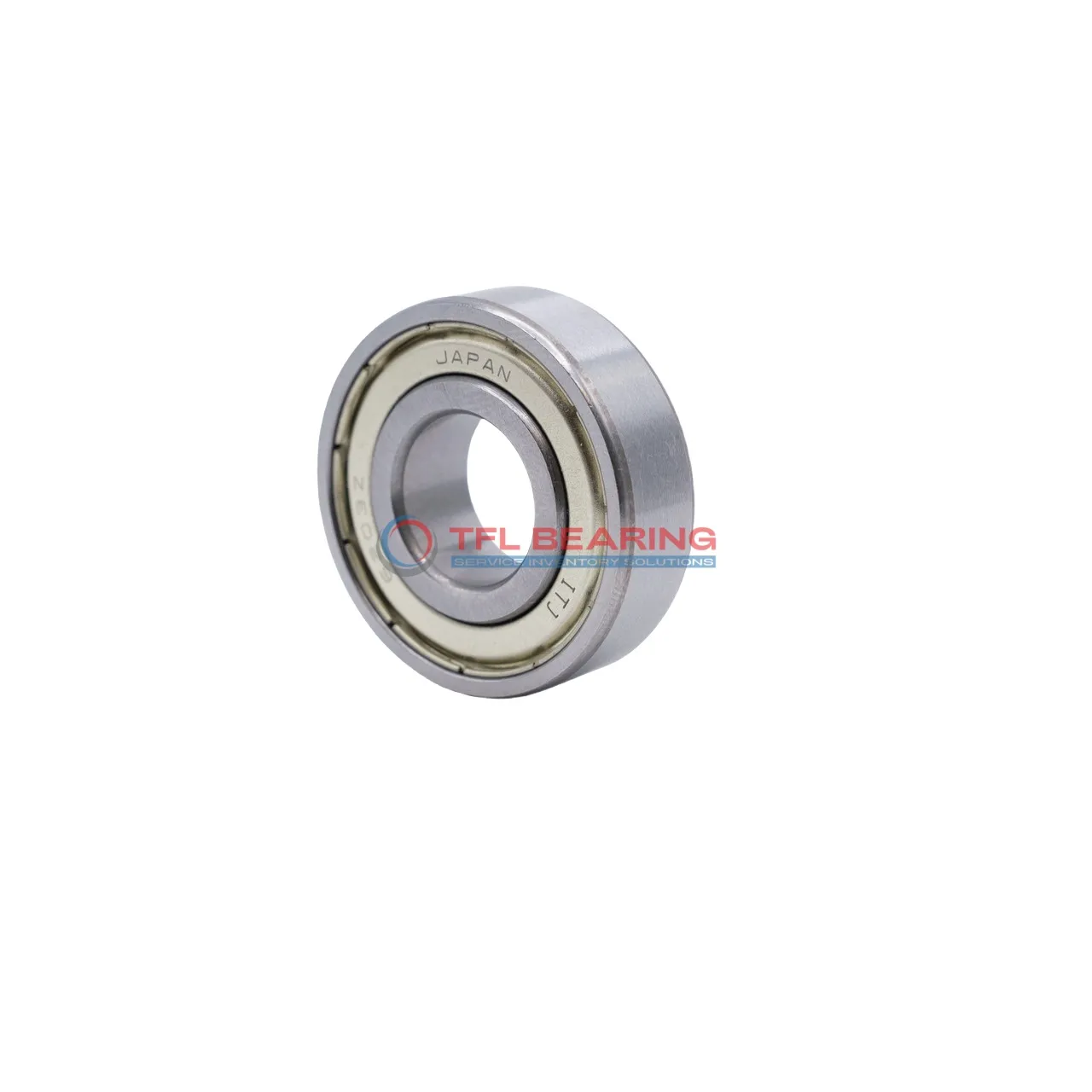

Single Row Deep Groove Ball Bearings 6305-Z

Single Row Deep Groove Ball Bearings 6305-Z

The 6305-Z is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 5261 lbf and spins smoothly at speeds up to 16,000 RPM.

Its shielded design keeps grease in and contaminants out, while the stainless steel cage ensures durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 0.23kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 5261 lbf
  • Static Radial Load 2608 lbf
  • Max Speed 16000 rpm
  • Weight 0.23 kg
  • price（$） 5.112
Single Row Deep Groove Ball Bearings 6305-Z dimension drawing
Download DWG Download PDF

Features

How Does 6305-Z Bearing Reduce Friction?

6305-Z Bearing features a deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while minimising friction during operation.

Its shielded design protects against contaminants, maintaining consistent performance.
With a maximum speed of 16,000 rpm, it delivers reliable efficiency in various applications.

The stainless steel cage enhances stability, reducing wear over extended use.
Grease lubrication further ensures quiet and low-maintenance operation.

Application

Common Applications of 6305-Z Bearing
In industrial settings, 6305-Z Bearing is widely used in electric motors and pumps due to its shielded design, which helps keep contaminants out while maintaining smooth rotation. The chrome steel construction ensures durability in demanding environments.

Where Is 6305-Z Bearing Used?
You’ll often find 6305-Z Bearing in automotive applications like alternators and water pumps, where its radial load capacity and grease lubrication provide reliable performance. Its metric sizing makes it a versatile fit for various vehicle models.

Built for Heavy-Duty Use: 6305-Z Bearing
6305-Z Bearing handles high-speed operations well, making it suitable for conveyor systems and machinery requiring consistent radial load support. The stainless steel cage adds extra resilience against wear over time.

Automotive vs Industrial: Applications of 6305-Z Bearing
In automotive systems, 6305-Z Bearing supports components like fans and clutches, while in industrial gear, it’s a go-to for compressors and gearboxes. Its temperature range allows it to perform reliably in diverse conditions.
