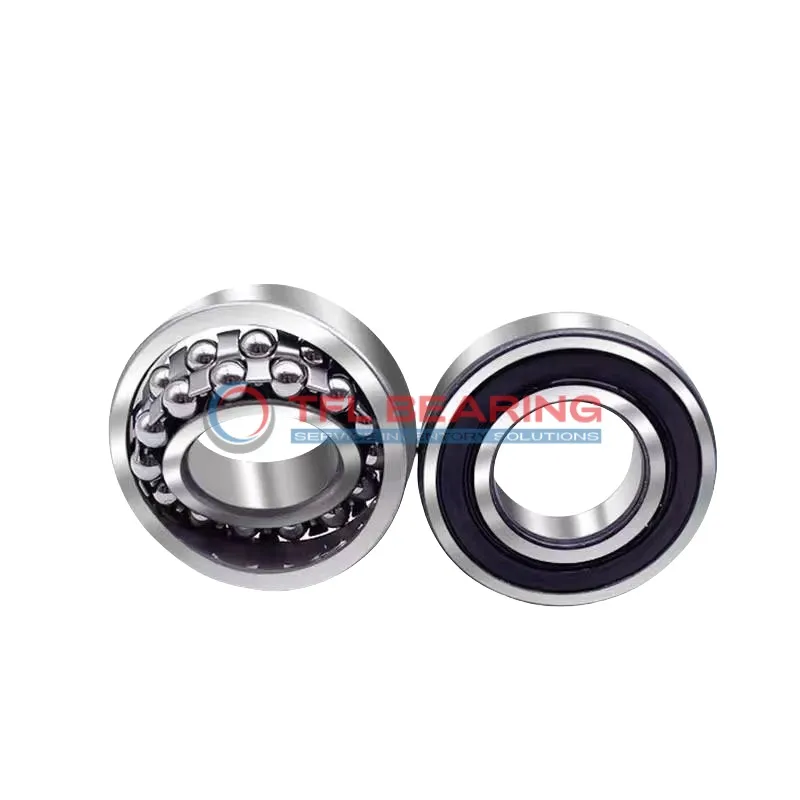

Self Aligning Ball Bearings 2208 E-2RS1TN9/C3

Brand: TFL Bearing Interchangeable: SKF 2208 E-2RS1TN9/C3 40 mm × 80 mm × 23 mm Metric Sealed
Part number: 2208 E-2RS1TN9/C3
Self Aligning Ball Bearings 2208 E-2RS1TN9/C3
In Stock
US$88.26 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.013mm to 0
Width23 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring49 mm
Internal Diameter On Outer Ring69.8 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load4,478 lbf
Static Radial Load1,564 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceC3
Weight0.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2208 E-2RS1TN9/C3 is a self-aligning ball bearing with a 40mm bore and 80mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 4478 lbf and runs smoothly at speeds up to 5600 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces friction. The bearing comes pre-lubricated and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery with misalignment issues, like conveyor systems or agricultural equipment.

Weighing 0.5kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 2208 E-2RS1TN9/C3 Bearing for Precision Tasks?

2208 E-2RS1TN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring reliable radial load handling.
Its dynamic radial load capacity of 4478 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage help maintain smooth operation while reducing contamination risks.
With a maximum speed of 5,600 rpm, it balances performance and durability.

2208 E-2RS1TN9/C3 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its C3 radial clearance ensures optimal performance under varying conditions.

Application

Industrial Uses of 2208 E-2RS1TN9/C3 Bearing
2208 E-2RS1TN9/C3 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long-lasting performance in dusty environments.

What Makes 2208 E-2RS1TN9/C3 Bearing a Preferred Choice?
In automotive applications, 2208 E-2RS1TN9/C3 Bearing works well in gearboxes and pumps, thanks to its double-row construction handling radial loads efficiently. The nylon cage reduces friction, making it quieter and smoother in operation.

Perfect Fit for Automation: 2208 E-2RS1TN9/C3 Bearing
For robotics and automated systems, 2208 E-2RS1TN9/C3 Bearing offers reliable performance in mechanical arms and precision equipment. Its C3 clearance allows for slight thermal expansion, ideal for varying operational temperatures.

Medical vs Industrial: Where 2208 E-2RS1TN9/C3 Bearing Excels
In medical devices like diagnostic machines, 2208 E-2RS1TN9/C3 Bearing provides smooth rotation with minimal noise. Meanwhile, in industrial settings, its chrome steel construction ensures durability under continuous use.

Light-Duty vs Heavy-Duty: Best Uses for 2208 E-2RS1TN9/C3 Bearing
For light-duty applications like small electric motors, 2208 E-2RS1TN9/C3 Bearing delivers consistent performance with low maintenance. In heavy-duty scenarios, its robust design handles higher loads without compromising efficiency.
