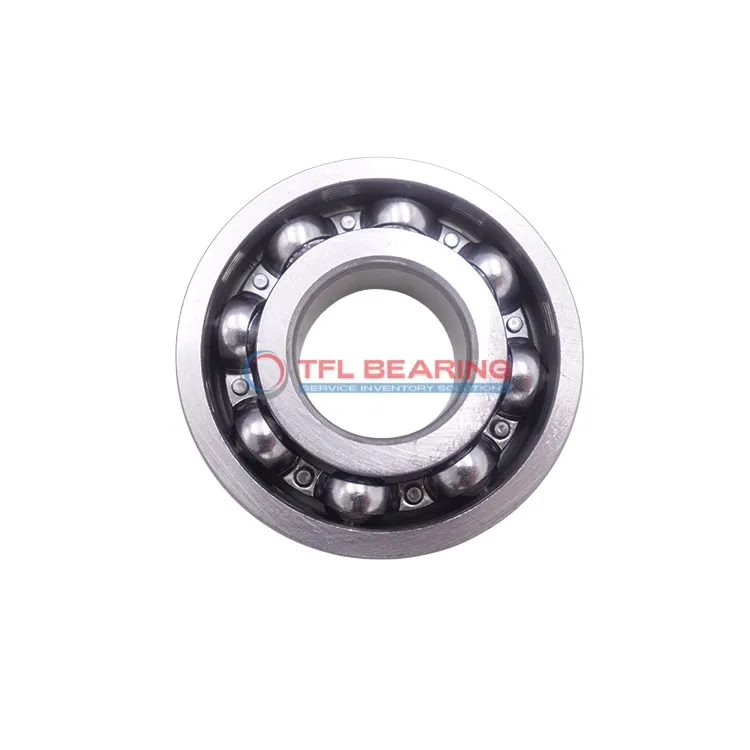

Single Row Deep Groove Ball Bearings 6220 M/C4VK121

Single Row Deep Groove Ball Bearings 6220 M/C4VK121

The 6220 M/C4VK121 is a single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 27427 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C4 radial clearance, it offers flexibility in applications where thermal expansion is a factor. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for machinery like pumps or electric motors where radial loads are common. Weighing 3120g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6220 M/C4VK121
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 27427 lbf
  • Static Radial Load 2093 lbf
  • Max Speed 3600 rpm
  • Weight 3120 g
Single Row Deep Groove Ball Bearings 6220 M/C4VK121 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6220 M/C4VK121 Bearing

6220 M/C4VK121 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 27427 lbf.
Its machined metal cage ensures precise ball alignment, enhancing durability and smooth operation.
With a C4 radial clearance, it accommodates thermal expansion in various applications.
The bearing operates efficiently within a temperature range of -30°C to 120°C, making it versatile for different environments.

Application

Industrial Uses of 6220 M/C4VK121 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, making it suitable for high-speed applications.

In automotive systems, 6220 M/C4VK121 Bearing supports components such as alternators and transmission shafts, ensuring smooth rotation under heavy loads. Its chrome steel construction provides durability in demanding conditions.

For automation equipment, 6220 M/C4VK121 Bearing is a reliable choice for robotic arms and conveyor systems. The machined metal cage enhances stability, even during continuous operation.

Where to Use 6220 M/C4VK121 Bearing
You’ll often find this bearing in household appliances like washing machines, where its radial load capacity ensures long-lasting performance. The temperature range also makes it adaptable to various environments.

In medical devices, 6220 M/C4VK121 Bearing offers precision for equipment like centrifuges. Its C4 clearance provides just the right balance between flexibility and stability.
